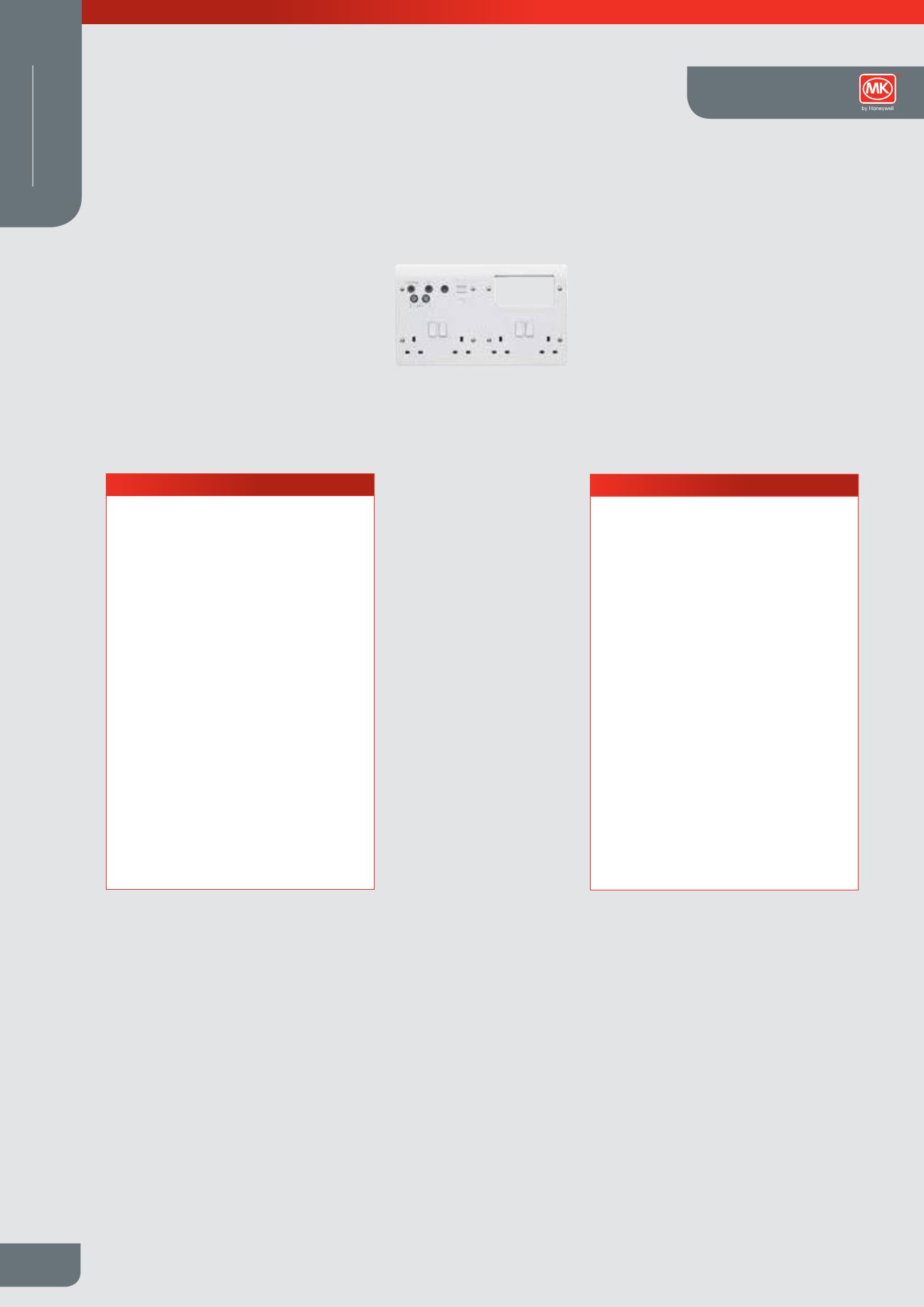

The 4-gang Combination Plate carries 2x 2-gang
13A DP switched sockets, plus a Quad TV, FM/
DAB, Satellite outlet, single TV (IEC Female)
and an additional Telephone socket.
Additionally, there is a 4-module Euro area
capable of accommodating any additional
telephone or media products from the Euro
modular range.
TECHNICAL SPECIFICATION
FRONTPLATE
The frontplate complies with the mechanical strength
requirements of BS 5733 2010.
SWITCHED SOCKET SPECIFICATION
Compliant to BS 1363 Part 2: 1995
ELECTRICAL
VOLTAGE RATING
250V a.c.
CURRENT RATING
13 Amp
TERMINAL CAPACITY
Live, Neutral & Earth
3 x 2.5mm²
3 x 4mm²
2 x 6mm² (standard)
PHYSICAL
AMBIENT OPERATING TEMPERATURE
-5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION ALTITUDE
2000 metres
l
Pre-configured back boxes available shall be used
with these plates. These are 853ZIC, which is
35mm deep, and for greater wiring space 854ZIC,
which is 47mm deep
l
These back boxes should always be used to ensure
alignment of the fixing screws is correct and proper
segmentation between mains and low voltage
products is maintained
l
Mains operated products and extra low voltage
modules must not be installed within the same
front plate aperture. Refers to BS 7671 IET Wiring
regulations for detail
l
When removing the fixing screws and front plate
from an installation to gain access to low voltage
modules, please be aware that there will also be
access to the mains supply
Note
Quad TV, FM/DAB, Satellite outlet
& additional TV Socket
As used on K3566 WHI
BT Telephone Socket
As used on K3566 WHI
4-module Euro Housing
This portion of the plate accepts up
to 4 x 50mm high by 25mm wide
Euro modules. (100mm x 50mm
aperture)
2 Gang Plate Description
The 2-gang Combination Plate carries a 2-gang
13A DP switched sockets and an additional
4-module Euro area capable of accommodating
any additional telephone or media products from
the Euro modular range.
TECHNICAL SPECIFICATION
FRONTPLATE
The frontplate complies with the mechanical strength
requirements of BS 5733 2010.
SWITCHED SOCKET SPECIFICATION
Compliant to BS 1363 Part 2: 1995
ELECTRICAL
VOLTAGE RATING
250V a.c.
CURRENT RATING
13 Amp
TERMINAL CAPACITY
Live, Neutral & Earth
3 x 2.5mm²
3 x 4mm²
2 x 6mm² (standard)
PHYSICAL
AMBIENT OPERATING TEMPERATURE
-5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION ALTITUDE
2000 metres
Combination Plates 2/4-gang Stacked Combination Plate
l
Pre-configured back boxes available shall be used
with these plates. These are 853ZIC, which is
35mm deep, and for greater wiring space 854ZIC,
which is 47mm deep
l
These back boxes should always be used to ensure
alignment of the fixing screws is correct and proper
segmentation between mains and low voltage
products is maintained
l
Mains operated products and extra low voltage
modules must not be installed within the same
front plate aperture. Refers to BS 7671 IET Wiring
regulations for detail
l
When removing the fixing screws and front plate
from an installation to gain access to low voltage
modules, please be aware that there will also be
access to the mains supply
Note
Wiring Devices Technical
