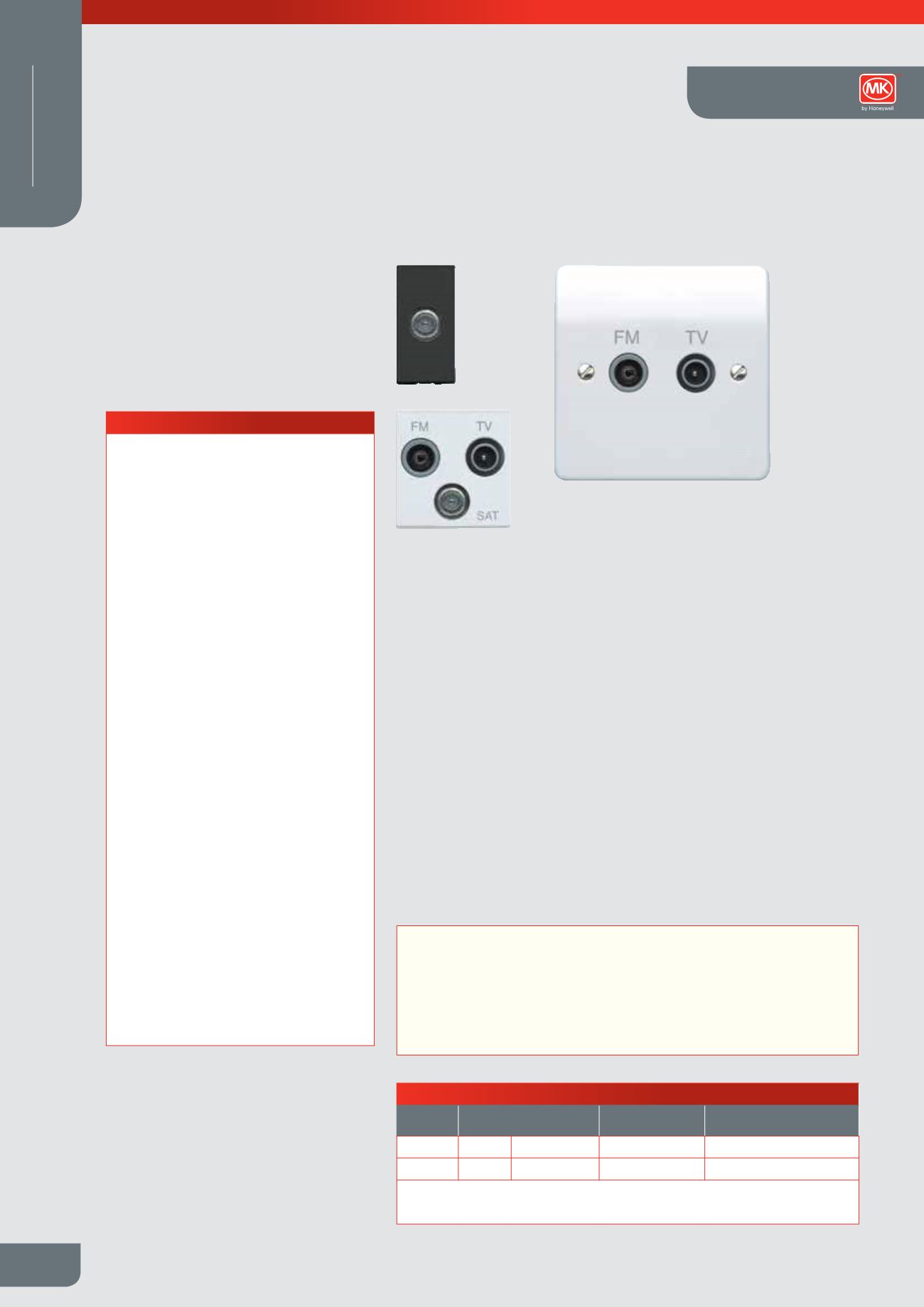

MK Electric Catalogue No. 49

474 / 759

474
WIRING DEVICES
BOX TYPES
FLUSH FLUSH
(FOR EXTRA WIRING SPACE) SURFACE INSULATED SURFACE METAL
1 GANG 861ZIC 866ZIC K2140WHI K2211ALM/K2213ALM
2 GANG 862ZIC 886ZIC K2142WHI K2212ALM/K2214ALM
Minimum recommended box depth 32mm
Note: Edge mounted modular products require 46mm box
Digital TV, Radio and Telephone Outlets
Standards and approvals
All Logic Plus TV Outlets comply with BS 5733
and BS EN 50083 where applicable.
Also IEC 169-2, BS EN 60169-24 and BS 6312
Part 2
Modular products are Euro compatible.
TECHNICAL SPECIFICATION
SINGLE OUTLETS
TV/FM IEC Male or Female DC-950MHz
SATF-Type DC-1.75GHz
DIPLEXER AND TRIPLEXER PRODUCTS
TV
Diplexer:
5-65MHz
470-862MHz
Triplexer:
5-65MHz
470-862MHz
FM
Diplexer: 87.5-108MHz
Triplexer: 87.5-108MHz
SAT
Diplexer: n/a
Triplexer: 950-2300MHz
TV/FM/DAB/SAT PRODUCTS FOR
DIGITAL RADIO
TV
Diplexer:
5-65MHz
470-862MHz
Triplexer:
5-65MHz
470-862MHz
FM/DAB
Diplexer: 87.5-230MHz
Triplexer: 87.5-230MHz
SAT OR SAT1
Diplexer: n/a
Triplexer: 950-2300MHz
SAT2
Diplexer: n/a
Triplexer: 5-2300MHz
Description
There are two ranges of diplexer and triplexer products, an established range
suitable for VHF TV, and a range suitable for digital radio (DAB).
Diplexer modules are for connecting to a single co-axial aerial down lead carrying
combined TV and FM signals. The filtering in the diplexer splits out the appropriate
signal and feeds it to the relevant output connection.
A DC control path is provided in the TV signal path through the diplexer.
Triplexer modules are for connecting to a single co-axial aerial down lead carrying
combined TV, FM and SAT signals. The filtering in the triplexer splits out the
appropriate signal and feeds it to the relevant output connection.
A DC control path is provided in the SAT signal path through the triplexer.
The quad outlet contains a triplexer together with a separate satellite output, for use
with Sky+, or more complex installations.
Telephone secondary outlets are provided on some products for connection of
telephone or for interactive TV applications.
FEATURES
l Non Isolated
l Fully screened
l Earth terminal provided on TV modules
l Selected products with BT secondary
outlets for interactive TV applications
l Selected products with supplementry
TV outlet for back-feed for further
distribution
Wiring Devices Technical
