WIRING DEVICES
Technical Hotline
+44 (0)1268 563720
FEATURES
l
Meet all relevant BS and cabling
standards
l
Interchangeable modules clip into
frontplates
l
Front fixing facilitates easy exchange
of modules
l
Part of a complete range of products
for telephone and data processing
requirements
Telephone sockets
l
Quick, simple and reliable IDC
connectors
l
Can be specified for all applications
Data sockets
l
Latest specification for high
performance systems
l
Wide range of data connectors
available
For information on TV Satellite and
FM Modules see pages 471-473
Standards and approvals
Telephone sockets K5820 and K5821 comply
with the following:
BS 6312: 2.2
Data sockets K5801, BS 5733: 2010
(where applicable).
K5887 complies with FCC68 and EN 41003.
TECHNICAL SPECIFICATION
ELECTRICAL
CABLE TYPES
Telephone:
CW1311, CW1293, CW1308, CW1316
NO. OF CABLES PER TERMINATION
Telephone:
2
RJ11/12:
1
BNC
50 Ohms impedance cable – RG58, RG141, URM43
Belden 9907
FREQUENCY RANGE
BNC connector: 0 to 4GHz
IMPEDANCE
BNC Connector: 50. nominal
TERMINATION TYPE
Telephone module – IDC
BNC module – Crimped connection
PHYSICAL
AMBIENT OPERATING TEMPERATURE
-5°C to +40°C
IP RATING
IP2XD – K5820, K5821, K5801 and K5787.
IP4X – K180, K188, K186 and K170
MAX. INSTALLATION ALTITUDE
2000 metres

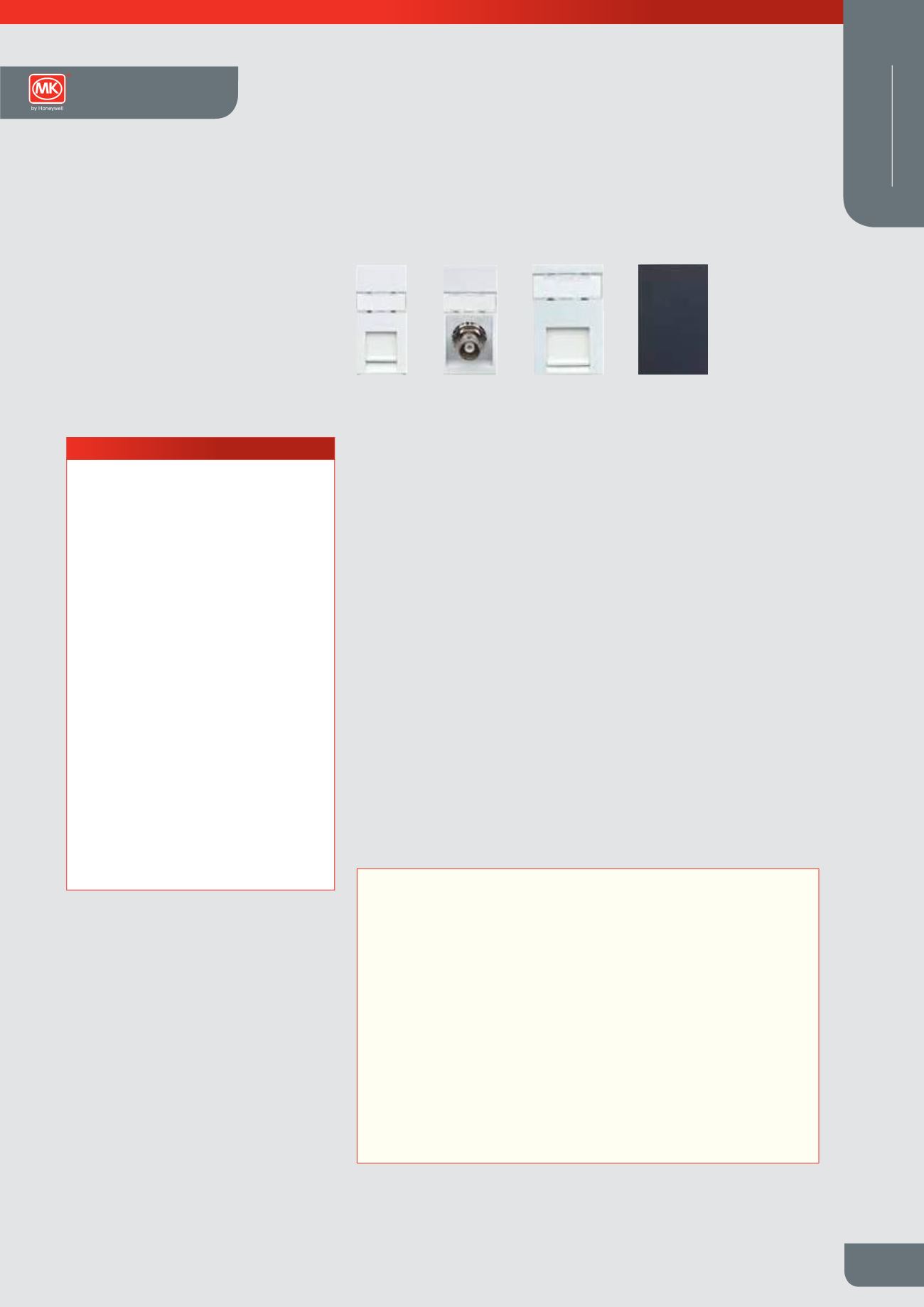

Telephone, RJ11/12, BNC Data and Blank Modules
Description
A range of telephone, data and blank modules to fit Euro and LJ6UC front plates.
BNC Euro modules with a 50Ohm crimp connector suitable for use with RG58,
URM43, URM76 and Beldon 9907 type co-axial cables are also available.
Installation (Telephone socket modules)
Product performance, systems compatibility
Master Sockets: For use as the first socket outlet on a direct exchange. They
contain the required surge protector (for line protection against electrical surges)
and ringing capacitor.
Secondary Sockets: for use as extension sockets when connected on the same line
as a Master Socket.
Installation tools required IDC Connectors (telephone & RJ45 outlets)
MK insertion tool List No. 400NAT.
Wire pull-out force: 10.5 Newtons when installed correctly.
Wiring regulation restrictions
Domestic Installations: The total REN (Ring Equivalent Number) value of all
telephone equipment connected on a line must not exceed 4.
