WIRING DEVICES
Technical Hotline
+44 (0)1268 563720
TECHNICAL SPECIFICATION
13A UK
5A UK
16A GERMAN
16A FRENCH/BELGIAN 15A AMERICAN
2A USB CHARGING MODULE
ELECTRICAL
VOLTAGE RATING
250V a.c.
CURRENT RATING
13A
TERMINAL CAPACITY
Live, neutral & earth
3 x 2.5mm
²
3 x 4mm
²
2 x 6mm
²
(stranded)
PHYSICAL
AMBIENT OPERATING
TEMPERATURE
-5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION
ALTITUDE
2000 metres
ELECTRICAL
VOLTAGE RATING
250V a.c.
CURRENT RATING
5A
TERMINAL CAPACITY
Live, neutral & earth
3 x 2.5mm
²
3 x 4mm
²
2 x 6mm
²
(stranded)
PHYSICAL
AMBIENT OPERATING
TEMPERATURE
-5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION
ALTITUDE
2000 metres
ELECTRICAL
VOLTAGE RATING
250V a.c.
CURRENT RATING
16A
TERMINAL CAPACITY
Live, neutral & earth
4 x 1.5mm
²
2 x 2.5mm
²
1 x 4mm
²
PHYSICAL
AMBIENT OPERATING
TEMPERATURE
-5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION
ALTITUDE
2000 metres
ELECTRICAL
VOLTAGE RATING
250V a.c.
CURRENT RATING
16A
TERMINAL CAPACITY
Live, neutral & earth
3 x 2.5mm
²
3 x 4mm
²
1 x 6mm
²
PHYSICAL
AMBIENT OPERATING
TEMPERATURE
-5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION
ALTITUDE
2000 metres
ELECTRICAL
VOLTAGE RATING
127V a.c.
CURRENT RATING
15A
TERMINAL CAPACITY
Live, neutral & earth
3 x 2.5mm
²
3 x 4mm
²
1 x 6mm
²
(stranded)
PHYSICAL
AMBIENT OPERATING
TEMPERATURE
-5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION
ALTITUDE
2000 metres
ELECTRICAL
INPUT
VOLTAGE RATING
220-240V a.c.
FREQUENCY
50-60Hz
TERMINAL
CAPACITY
Live & neutral
3 x 2.5mm
²
PHYSICAL
AMBIENT
OPERATING
TEMPERATURE
0°C to +40°C
IP RATING
IP3xC
MAX.
INSTALLATION
ALTITUDE
2000 metres
OUTPUT
VOLTAGE
RATING
2 x 5V d.c.
MAX CURRENT
Combined total
of 2A
CHARGING
SOCKETS
USB 2.0 Type A,
USB 3.0
BOX TYPES
MINIMUM
35MM
EXTRA WIRING SPACE
46MM
BOX TYPES
MINIMUM
35MM
EXTRA WIRING SPACE
46MM
BOX TYPES
MINIMUM
46MM
BOX TYPES
MINIMUM
46MM
BOX TYPES
MINIMUM
35MM
EXTRA WIRING SPACE
46MM
MK EURO FRONT
PLATE THICKNESS
BOX TYPES
> 7mm
Min 35mm
< 7mm
Min 46mm
16A German
15A American
13A UK
50
50
25
50
50
40
50
50
25
K5830
5A UK
50
50
29
K5833
K5831
16A French/
Belgian
50
50
39
K5834
K5832
2A USB Charging Module
50
50
34
5
K5837
Description
A range of euro modules designed to provide a variety of power options.
Power Modules
Standards and approvals
K5830: BS 1363 Part 2:1995
K5831: IEC 60884-1:2006
K5832: SASO 2204:2003
K5833: BS 546:1950
K5834: French National Standard NF C 61-314

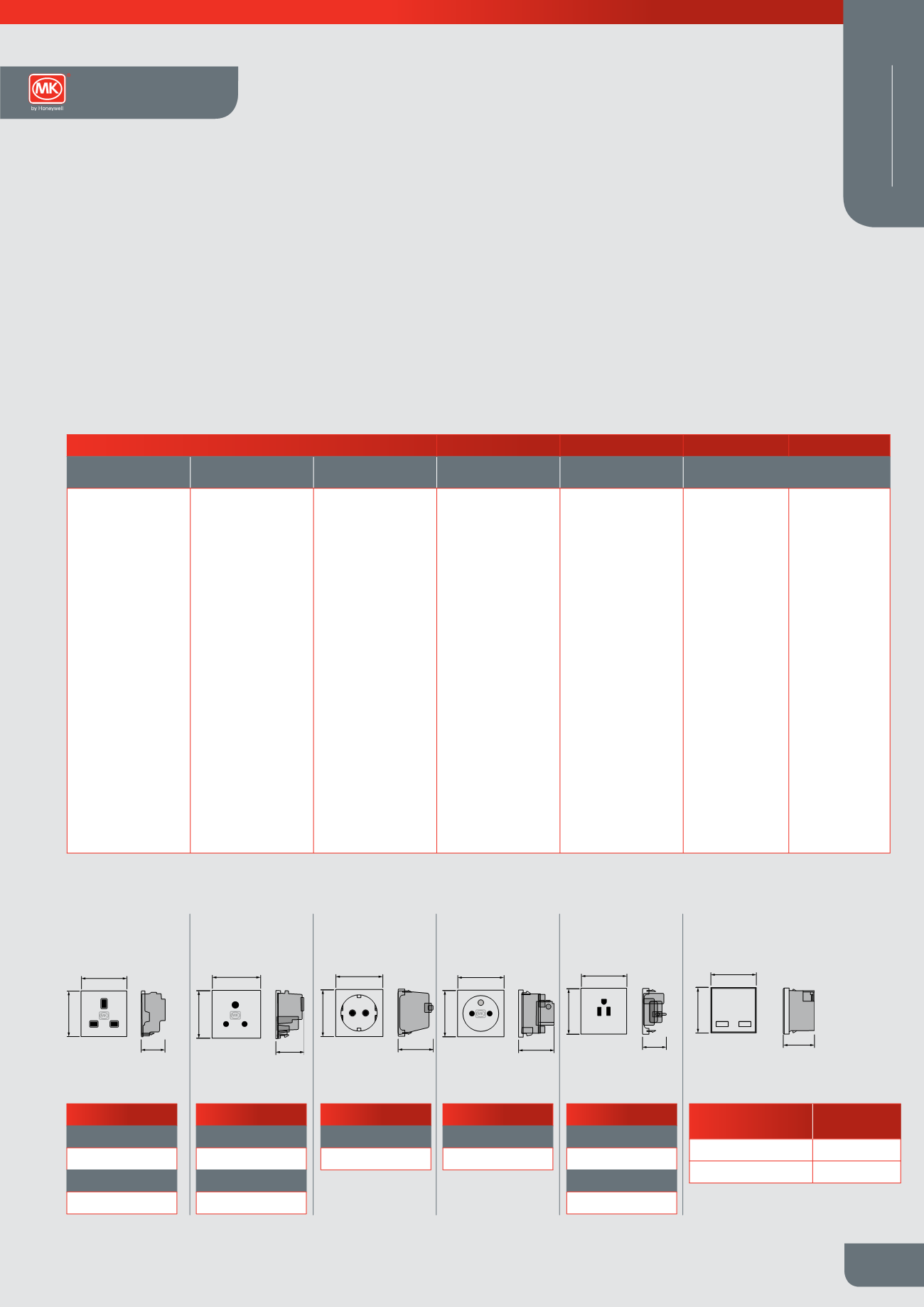

Dimensions (mm)
