WIRING DEVICES
Technical Hotline
+44 (0)1268 563720
FEATURES
l
Single screw termination on TV outlets
l
Protected, fully enclosed PCBs
l
Meet all relevant BS requirements
l
Quick, simple and reliable terminal
connection
l
IDC connectors on telephone outlets
l
Part of a complete range of products
for telephone, television and data
processing requirements
l
Angled connector on TV outlets
l
Sockets fit in plaster depth boxes
(except K4817)
Standards and approvals
Telephone and TV sockets comply with the
following:
Telephone sockets K422 and K427
BS 6312: 2.2, BS 5733:2010 (where applicable).
K4817: BS 5733:2010 (where applicable) and
FCC68.
TV sockets
BS 3041 Part 2:1977 / IEC 169-2:1977,
BS 5733:2010 (where applicable) and IEC65,
clauses 10.1, 10.3.
Satellite TV sockets
BS 5733:2010 (where applicable).
TECHNICAL SPECIFICATION
ELECTRICAL
TELEPHONE SOCKETS, CABLE SPECIFICATION
CW1311, CW1293, CW1308, CW1316
NO. OF CABLES PER TERMINATION
2
RE-USABILITY
>9 reterminations (should not be reterminated with
smaller diameter wire)
TV SOCKETS
Cable specification: CT100 or equivalent Any standard
LOW-LOSS TV CO-AXIAL CABLE:
Outside 4-8mm diameter, inner conductor 0.5-2mm
diameter
INSERTION LOSS
Insertion loss data available on request
‘F’ TYPE SATELLITE SOCKET (K3525), CABLE
SPECIFICATION
Co-axial cable: inner core diameter – 0.5-1.2mm
RJ11 (K4817), CABLE SPECIFICATION
Capable of taking 0.08 to 0.65mm² solid or stranded
cable
PHYSICAL
AMBIENT OPERATING TEMPERATURE
--5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION ALTITUDE
2000 metres

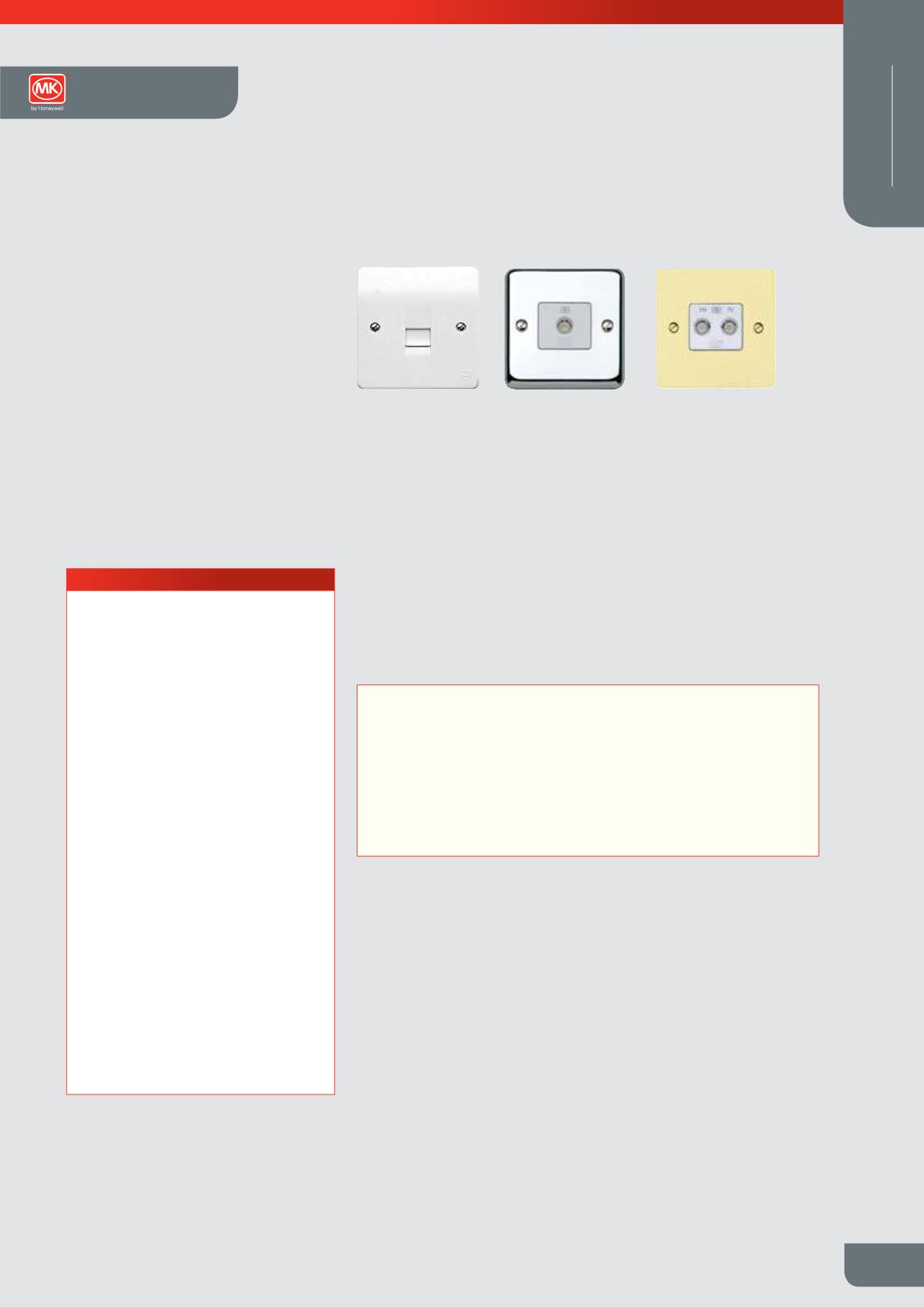

Telephone, TV/FM and Satellite Socket Outlets
Description
A part of the very wide range of products to meet the latest technical requirements
and the standards applicable to modern technology in the installation of telephone
and television equipment. The master and secondary telephone sockets K422 and
K427 comply with relevant approvals for direct and indirect connections between a
termination point of a public telecommunications system and any piece of approved
telecommunications apparatus. For applications requiring twin or dual telephone
outlets, refer to the Modular Data section, pages 46-48.
Telephone and TV sockets fit into plaster depth boxes (except for RJ11).
The F-type Satellite Socket may be used for connection of CATV, MATV and
satellite TV installations.
