WIRING DEVICES
mkelectric.co.uk1 2 3 4 5 6
1 2 3 4 5 6
First Socket Outlet
Master
Extension Outlet
Secondary

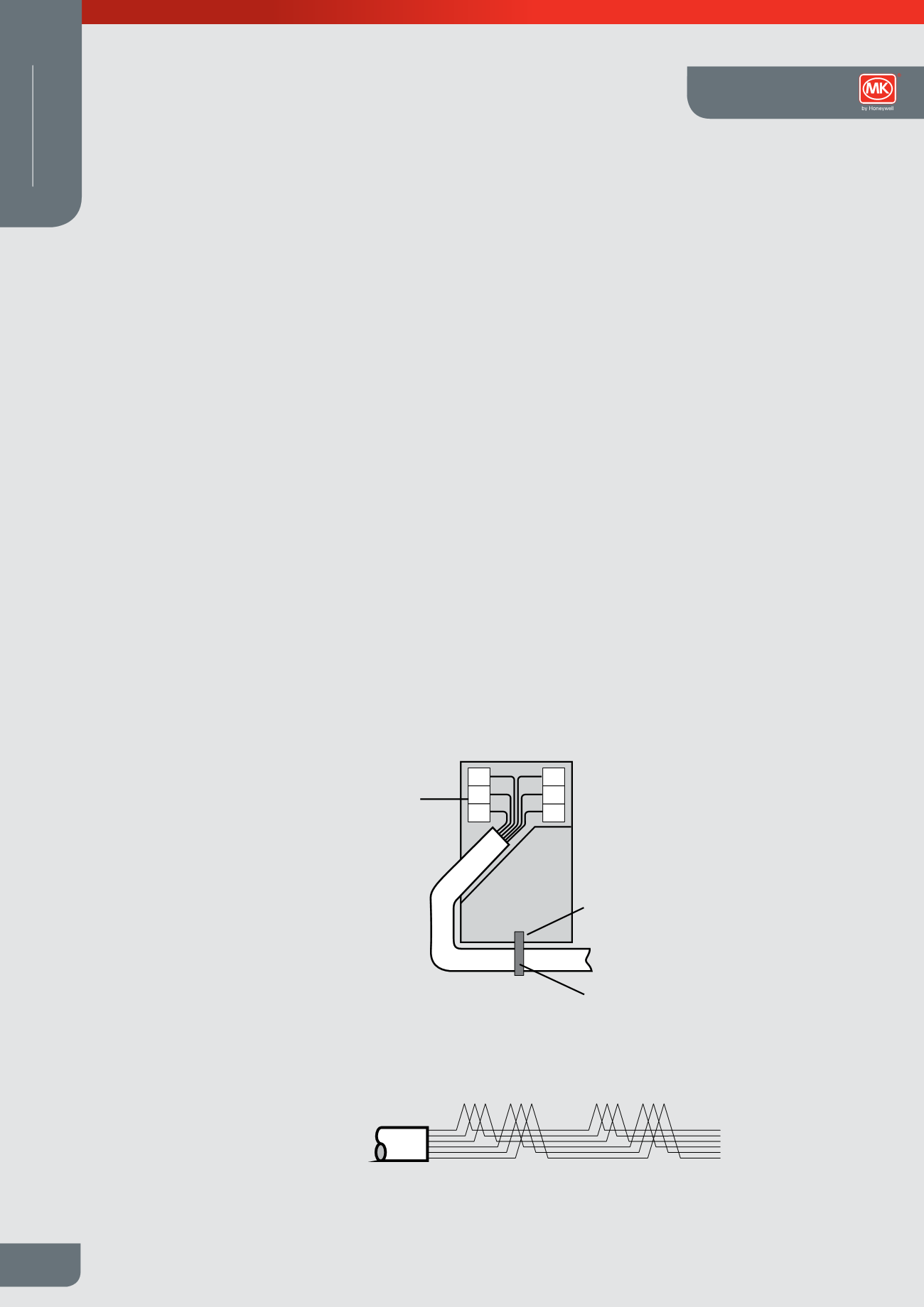

IDC
terminals
2
3
4
6
5
Cable tie
Cable Tie
fixing point
1
Telephone, TV/FM and Satellite Socket Outlets
Installation (Telephone sockets)
Product performance, systems compatibility
Master Sockets: for use as the first socket outlet
on a direct exchange or PABX line. They contain
surge protector (for line protection against
electrical surges) and ringing capacitor.
Secondary Sockets
For use as extension sockets when connected
on the same line as a Master Socket.
Installation tools required
MK IDC insertion tool List No. 400NAT (not
supplied with product).
Wiring regulation restrictions
Domestic installations
Any number of MK sockets may be installed
thereafter, with a total REN (Ring Equivalent
Number) value of all telephone equipment
connected on a line not exceeding 4.
Telephone Wiring
Scheme
1 GREEN / white
2 BLUE / white
3 ORANGE / white
4 WHITE / orange
5 WHITE / blue
6 WHITE / green
Note: Main wire colour is shown in capitals
