WIRING DEVICES
mkelectric.co.ukInstallation
Aspect socket outlets can only be mounted on a wall. Do not mount or use as a
trailing socket or where they may be subject to excessive moisture or dampness.
Install corresponding back box 10mm sub flush to finished wall surface.
Aspect combination plates are supplied with clip on segregator.

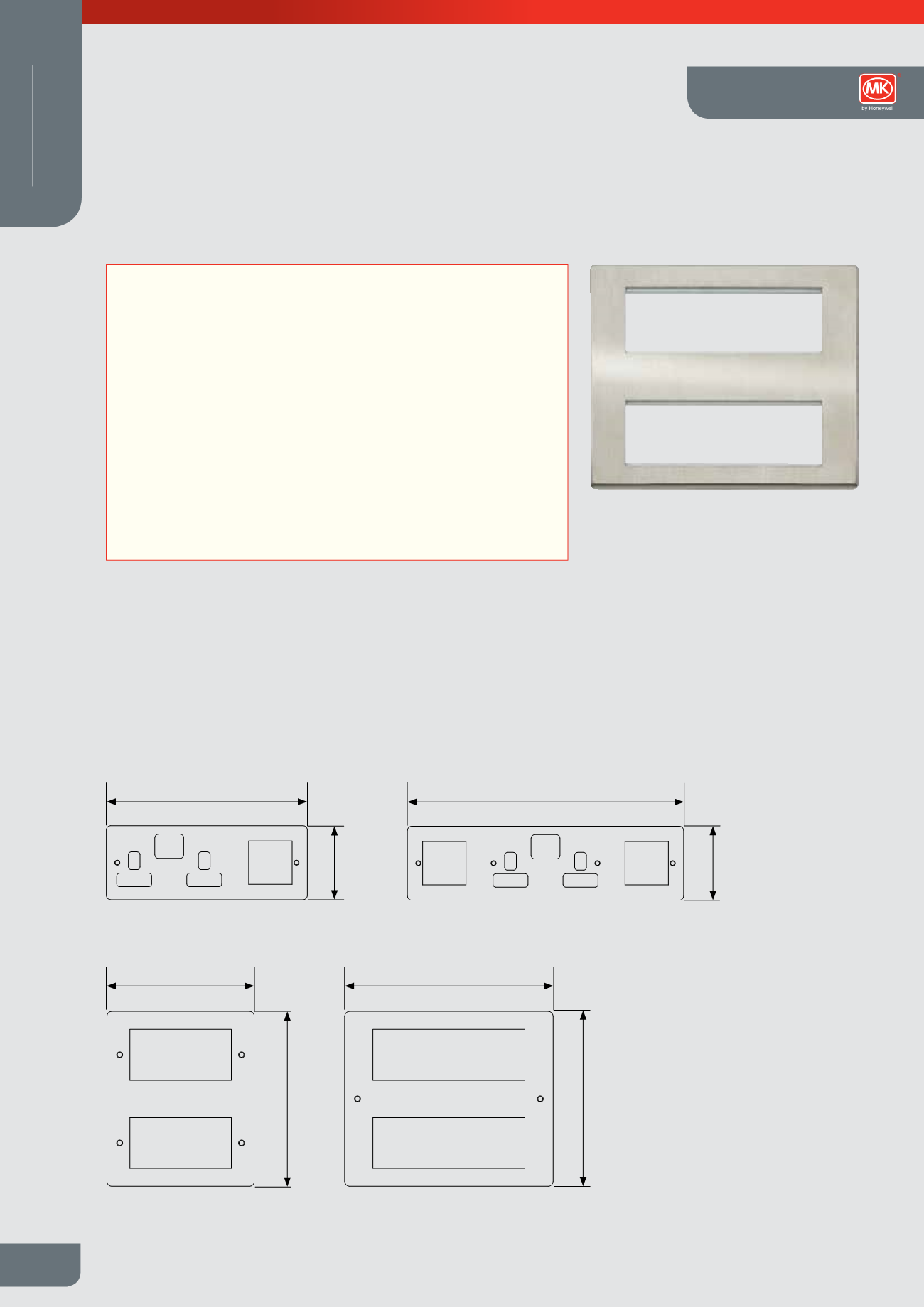

Dimensions (mm)
Combination Plate
Features
l
Metal-capped rockers designed
to match the chosen front plate
finish
l
3 pin operated safety shutter
l
Printed terminal markings on
grey rear mouldings for clearer
identification
l
Top access, angled terminals
make wiring easier and quicker
l
3mm minimum switch contact gap
l
Double pole switching
l
Additional electrical safety from
neutral ‘make first’, ‘break last’
feature
l
Switch contacts with silver
contacts on both surfaces for
good continuity
l
Dual earth terminals on pre-fitted
sockets are for high integrity
earthing
l
Backed out and captive terminal
screws on pre-fitted sockets
l
Pre-configured backboxes to
ensure alignment of the fixing
screws is correct and proper
segregation between circuits is
maintained to comply with
BS 7671 17th Edition wiring
regulations
233.3
146.4
206.3
320.6
86
173.3
173.3
86
K24206 and K24207
K24209
K24210
K24208
Wiring Devices Technical
– Aspect
