WIRING DEVICES
Technical Hotline
+44 (0)1268 563720

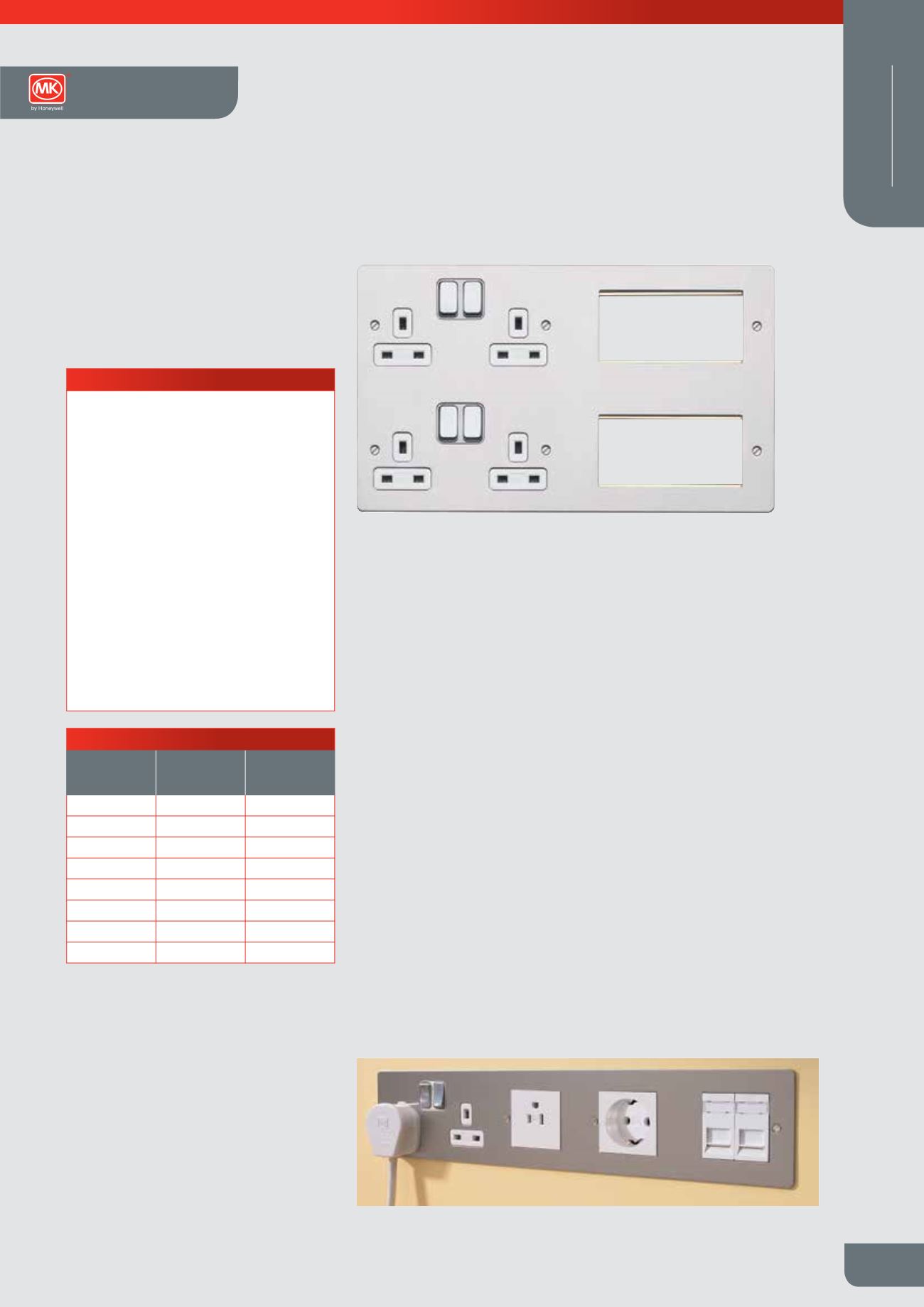

Combination Plate
Description
A range of combination plates designed for ease of installation and having all the
advantageous design features of the Edge range.
These combination socket outlets provide interior designers and installers with a
stylish and practical wiring device solution. The range also has larger euro module
frontplates to house eight and twelve single euro modules without the inclusion of
fixed socket outlets. The K14100 combination socket outlet, for example allows for
the inclusion of up to eight single Euro modules, which could include datacoms,
telecoms, plus TV and Satellite modules.
Alternatively, Euro Power Modules i.e. German, French/Belgium and American
socket outlets may be used.
Note:
l
Pre-configured back boxes are designed for use with the combination plates.
These back boxes should always be used to ensure alignment of the fixing
screws is correct and proper segregation between mains and extra low voltage
products is maintained
l
For Edge products, back boxes must be installed flush to the wall surface
l
Mains operated products and extra low voltage modules must not be installed
within the same frontplate aperture. Refer to BS 7671: 2008 for details
l
When removing the fixing screws and frontplate from an installation to gain
access to low voltage modules, please be aware that there will also be access to
the mains supply
All pre-fitted sockets come complete and are fitted with two earth terminals on a
common busbar to provide a double earth facility for use when installations require
a high integrity protective connection as specified within BS 7671, IET Wiring
Regulations.
Combination plates allow the use of a variety of power and data modules making
them ideal for hotels.
Bespoke requirements can be achieved through
the MK Design Service to deliver variation in
colours, materials, finishes and markings.
Euro apertures can also be converted to
grid-switch. For more information please visit
www.mkelectric.co.ukor call 01268 563720
Standards and approvals
All Edge 13A socket outlets comply with
BS 1363: Part 2:1995.
K14209 and K14210 comply with BS 5733:2010.
TECHNICAL SPECIFICATION
ELECTRICAL
VOLTAGE RATING
250V a.c.
CURRENT RATING
13A
TERMINAL CAPACITY
Live, neutral & earth
3 x 2.5mm²
3 x 4mm²
2 x 6mm² (stranded)
(Dual earth terminals)
PHYSICAL
AMBIENT OPERATING TEMPERATURE
–5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION ALTITUDE
2000 metres
MOUNTING BOXES
Combination
Plate
List Number
35mm
Mounting Box
47mm
Mounting Box
K14200
K14201
K14202
K14205
K14206
K14207
K14100
K14101
K14102
K14216
867ZIC
K14217
867ZIC
K14208
868ZIC
K14209
858ZIC
K14210
869ZIC
Wiring Devices Technical
– Edge™
