485

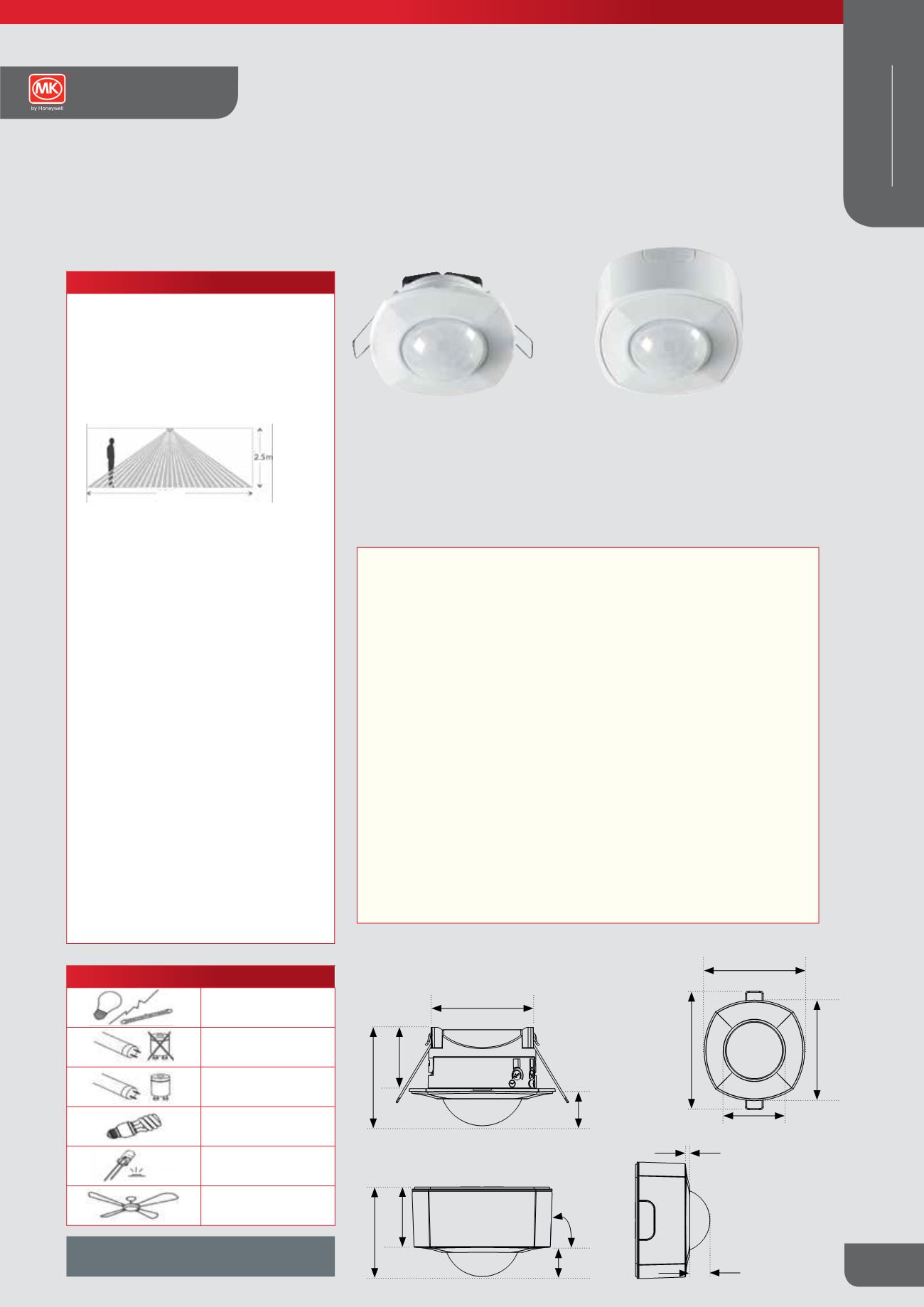

Simple Fit Switching PIR Sensors
Description
MK Simple Fit Sensors offer cost effective presence detection for lighting control in
small to medium areas. This one-box solution is easy to install and commission, and
requires no additional parts. Providing cost effective presence detection for lighting
control. Simple Fit dual mount sensors are easy to install and can deliver energy
savings of up to 70%*
FEATURES
l
Presence detection by passive infrared
l
Innovative dual mount system
requires only one sensor for either
flush or surface mount applications
l
External programming dials enable
quick adjustment of time and lux
levels
l
Off delay adjustable between 5
seconds and 18 minutes following the
last observed movement after which
the lights switch off
l
PIR Lens provides 360 degree
detection
l
Detection Range of up to 6m diameter
at 25°C at 2.5m mounting height
l
Manual on / off override function
l
Mounting Height: Recommended
ceiling mount 1.8m to 3m
l
Loading up to 6 Amps
l
Ability to wire more than 1 sensor in
parallel to a load
l
Ability to switch volt free loads
l
Lens mask included to mask out any
areas of unwanted detection
K5017
Flush and Surface Ceiling Mount PIR
Sensor in one
l
For flush mount, spring clips enable
ease of installation in ceilings with
thickness between 5mm and 20mm
l
Simple to switch between flush and
surface options
l
Surface mount can be fixed direct to
the ceiling or on to a circular conduit
or BESA box
l
All screws and fixings supplied
SWITCHABLE LOAD
Max 2000W
Max 600W
Max 500W
Max 120W
Max 110W
Max 75W
For a full range of corresponding products,
see pages 63-66 in the product selector.
TECHNICAL SPECIFICATION
TECHNOLOGY
PIR
MAXIMUM RECOMMENDED MOUNTING HEIGHT
1.8m to 3m
RANGE
Cone-shaped detection pattern,
6m radius at 2.5m mounting height
OPERATING VOLTAGE
AC220~240V/50Hz
RECOMMENDED CIRCUIT PROTECTION
16A
MAXIMUM LOAD
6A or 600W fluorescent lightling load capacity
PHOTOCELL
Approx. 5 - 1000 Lux
OFF DELAY
5sec - 18min
COLOUR
White (RAL9010)
MATERIAL/ABS
Flame retardant PC
IP RATING
Surface Mount:
IP44
Flush Mount:
IP44 (Sensor section only)
IP20 (Ceiling Board onwards)
K5017
DEPTH REQUIRED BEHIND CEILING
50mm
WEIGHT
269g
6.0m
Dimensions (mm)
Flush Mount
(Hole size 75mm to 80mm)
Surface Mount
4,17
104,28
104,18
56
Sensors Technical
WIRING DEVICES
WHITE
68mm
40.8mm
21.95mm
65.42mm
97.18mm
97.18mm
56mm
114.63mm
44.45mm
66.72mm
22.27mm
2.4
o
56mm
17.92mm
