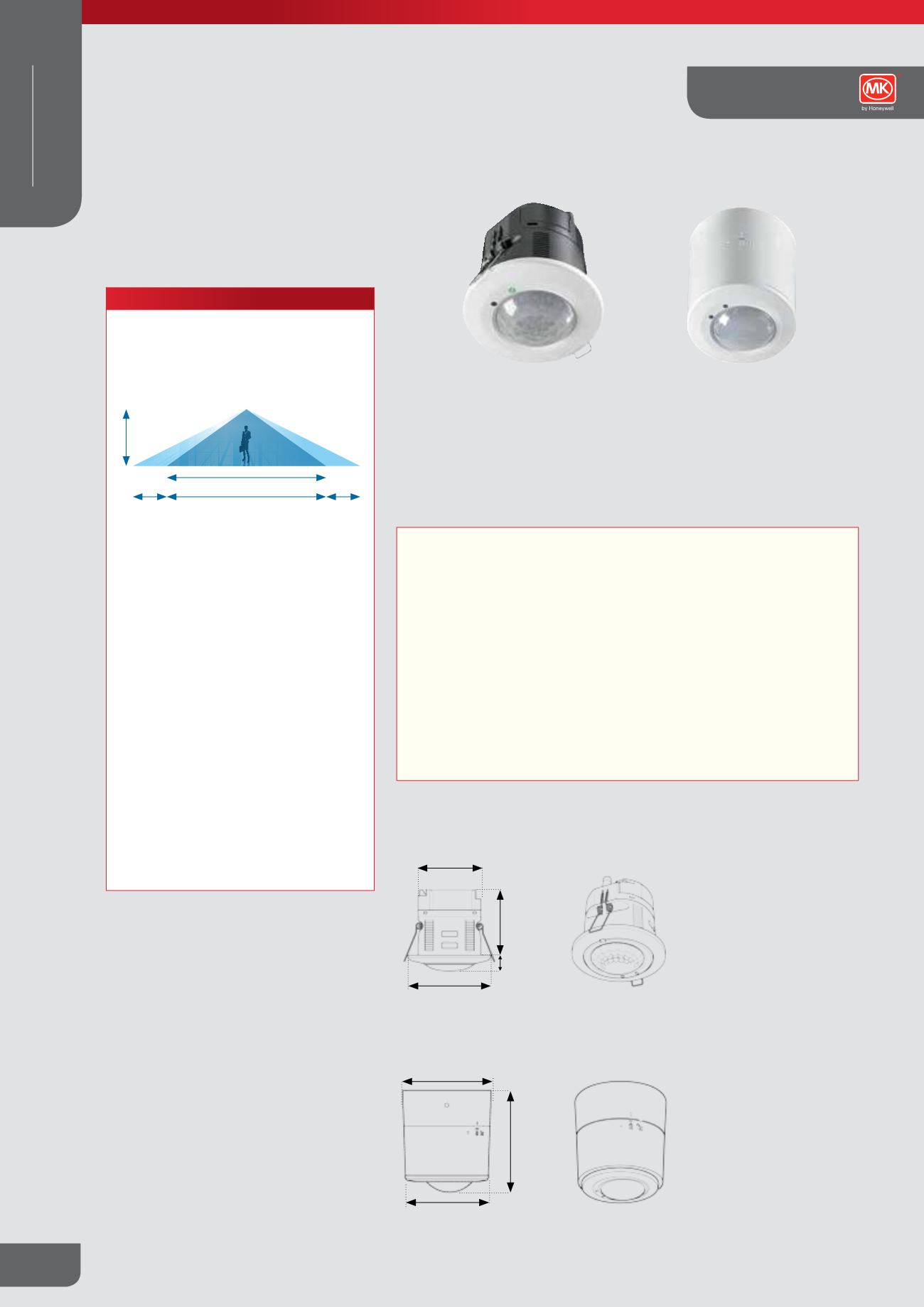

Description
A range of high performance PIR sensors for dependable control of digital dimming
lighting loads.
FEATURES
l
High definition lenses, performance
optics and software are all optimised
to provide class leading sensitivity and
occupancy detection ensuring that the
lights are always on when required
l
Dimming sensors include integral
photocells which will hold the lights
off in occupied areas or switch them
off at a given light level. Regulating
photocells enable a constant light
level to be maintained through digital
dimming
l
Superior PIR sensors deliver highly
sensitive micro detection diameter
of 7m within a 10m macro detection
diameter (When installed at a
mounting height of 2.5m)
l
Automatic detection of DALI and
DSI digital dimming type luminaires
reduces commissioning time and the
potential for errors
l
The easy to use K4098 infrared
programming tool simplifies sensor
set up and commissioning
Superior PIRs for
DALI or DSI Dimming
TECHNICAL SPECIFICATION
TECHNOLOGY
PIR
DETECTION RANGE
10m Macro / 7m Micro at 2.5m mounting height
SWITCHING CAPACITY
10A (Tungsten 6A)
DIGITAL DIMMING
DALI or DSI (Auto detect)
ANALOGUE DIMMING
1-10V
PHOTOCELL RANGE (LUX)
Adjustable 100 to 1000 lux via K4098
DELAY TIME RANGE
Adjustable 5mins to 40mins via K4098
IP RATING
IP4X
SUPPLY VOLTAGE
Mains 230V
TEMPERATURE RANGE
0-40 degrees
ACCESSORIES
K4098 Infrared programming tool required to adjust
sensor settings
K5040F
K5040SM
Sensors Technical
WIRING DEVICES
WHITE
Flush Mount
Surface Mount
ø 87mm
107.6mm
ø 93mm
ø 87mm
75mm
17.6mm
73mm
Aspect ratio
Macro = 4:1
Micro = 2.8:1
Micro
7m
2.5m
1.5m
7m
1.5m
Micro
Micro
