Description
A range of high performance switching PIR sensors for dependable switching of
lighting loads.
FEATURES
l
High definition lenses, performance
optics and software are all optimised
to provide class leading sensitivity and
occupancy detection ensuring that the
lights are always on when required
l
Superior switching sensors include
integral adjustable active photocells
which will hold the lights off in
occupied areas or switch them off at a
given light level
l
Superior switching sensors deliver
highly sensitive micro detection
diameter of 7m within a 10m macro
detection diameter (When installed at
a mounting height of 2.5m)
l
Colour coded connectors make
superior switching sensors easy to
install and reduce wiring faults
l
The easy to use K4098 infrared
programming tool simplifies sensor
set up and commissioning
TECHNICAL SPECIFICATION
TECHNOLOGY
PIR
DETECTION RANGE
10m Macro / 7m Micro at 2.5m mounting height
SWITCHING CAPACITY
10A (Tungsten 6A)
PHOTOCELL RANGE (LUX)
Adjustable 10 to 1000 lux via K4098
DELAY TIME RANGE
Adjustable 5mins to 40 mins via K4098
IP RATING
IP4X
SUPPLY VOLTAGE
Mains 230V
TEMPERATURE RANGE
0-40 degrees
ACCESSORIES
K4098 Infrared programming tool required to adjust
sensor settings

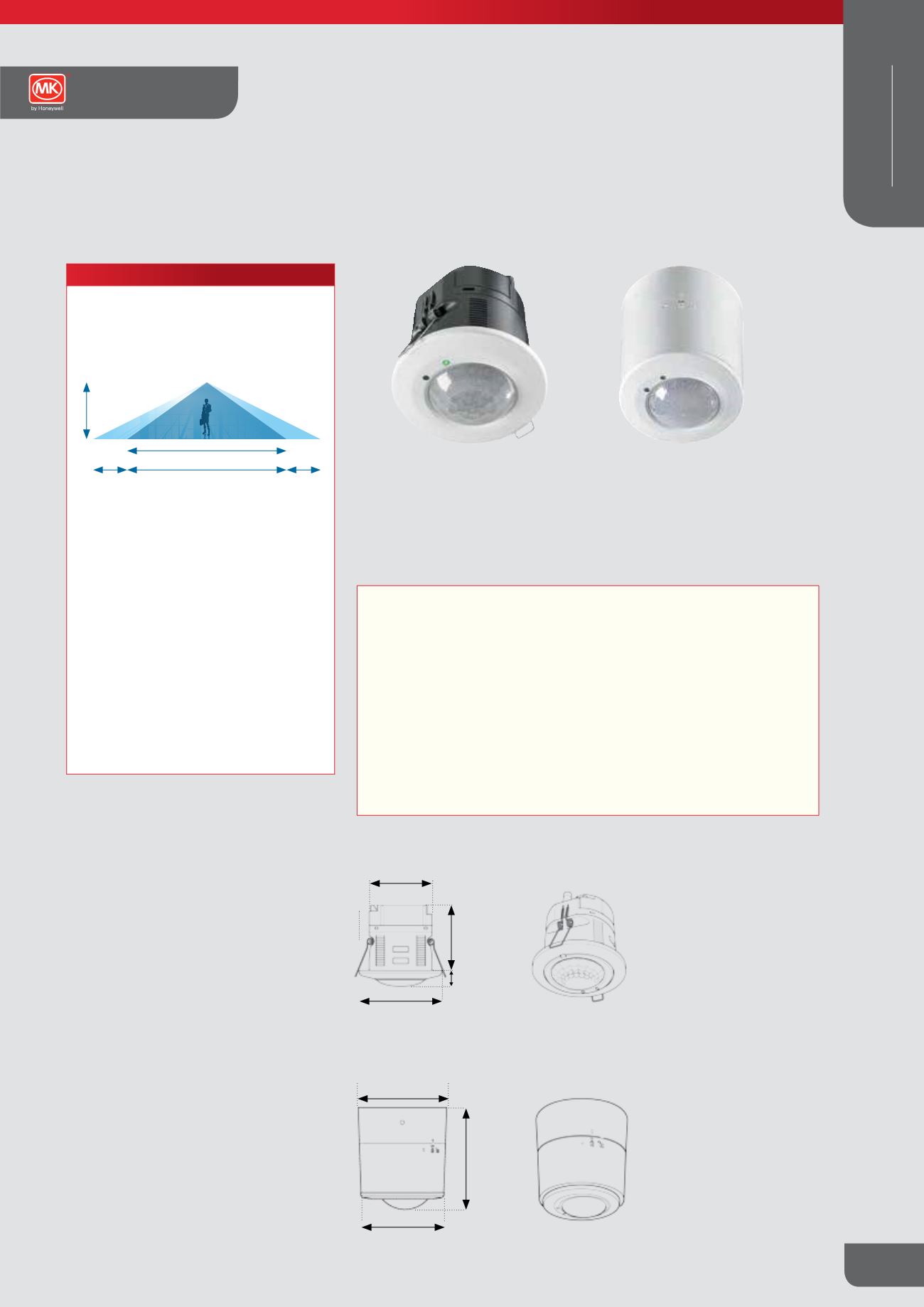

Superior Switching PIR Sensors
K5030F
K5030SM
Sensors Technical
WIRING DEVICES
WHITE
Flush Mount
Surface Mount
ø 87mm
107.6mm
ø 93mm
ø 87mm
75mm
17.6mm
73mm
Aspect ratio
Macro = 4:1
Micro = 2.8:1
Micro
7m
2.5m
1.5m
7m
1.5m
Micro
Micro
