486
FEATURES

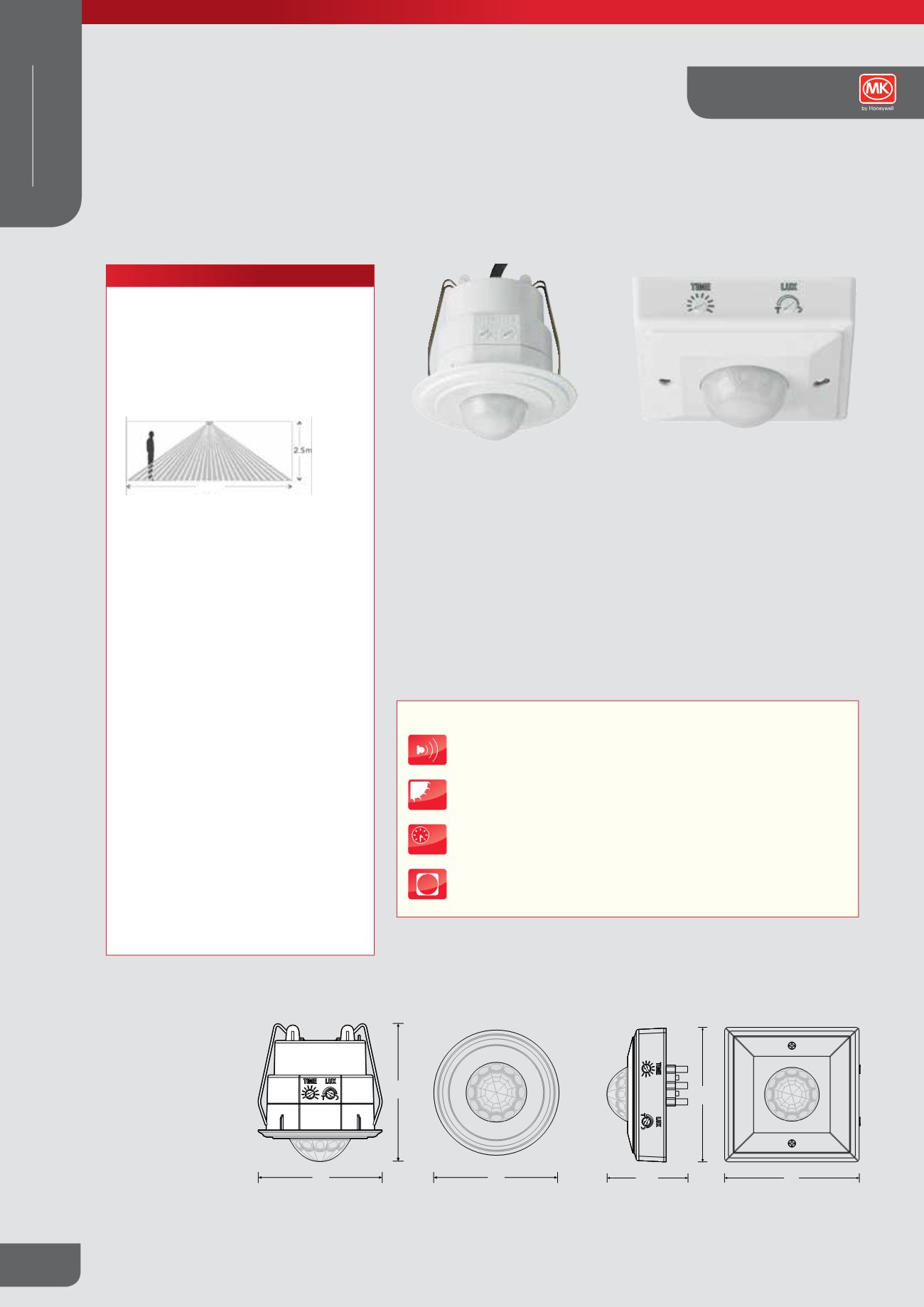

Simple Fit Switching PIR Sensors
Description
MK Simple Fit Sensors offer cost effective presence detection for lighting control
in small to medium areas. These one-box solutions are easy to install and
commission, also no additional parts are required.
The following versions are available:
l
Flush mounted K5015 – Spring Clips enable ease of installation in plasterboard
ceilings
l
Surface Mounted K5016 – Screw and Plug Fixings can be mounted direct to the
ceiling or on to a square pattress box (K2160 WHI)
Dimensions
K5015
K5016
11
Power requirement
AC 220 ~ 240V / 50Hz
Lighting load (Max)
6A or 1500W fluorescent/incandescent
lighting load capability
Detection angle
Up to 360° at 25°C at 2.5m
Detection range
5m radius at 2.5m mounting height
Mounting height
Recommended ceiling height 1.8m to 3m
Mounting type
Flush mount
Isolation switch control
AUTO/OFF
Time adjustment
Adjustable 5 seconds ~ 40 minutes
Lux adjustment
Approx. 30 ~ 200 Lux
Warm up time
About 1 minute
Protection degree
IP20
Safety
CE
Product Dimensions
Specification
86
mm
76
mm
76
mm
42924-001 Rev.B_FM Sensor_Art.qxp:50042924 Rev.A_FM Sensor.qxp
11
Power requirement
AC 220 ~ 240V / 50Hz
Lighting load (Max)
6A or 1500W fluorescent/incandescent
lighting load capability
Detection angle
Up to 360° at 25°C at 2.5m
Detection range
5m radius at 2.5m mounting height
Mounting height
Recommended ceiling height 1.8m to
Mounting type
Flush mount
Isolation switch control
AUTO/OFF
Time adjust ent
Adjustable 5 seconds ~ 40 minutes
Lux adjustment
Approx. 30 ~ 200 Lux
Warm up time
About 1 minute
Protection degree
IP20
Safety
CE
Product Dimensions
Specification
86
mm
86
mm
54.5
mm
50042925-0 1 Rev.B_SM Sensor_Art.qxp:50042925 R
K5016
K5015
TECHNICAL SPECIFICATION
TECHNOLOGY
PIR
MAXIMUM RECOMMENDED MOUNTING HEIGHT
1.8m to 3m
RANGE
Cone-shaped detection pattern,
6m radius at 2.5m mounting height
OPERATING VOLTAGE
AC220~240V/50Hz
RECOMMENDED CIRCUIT PROTECTION
16A
MAXIMUM LOAD
6A or 1500W fluorescent/incadescent lightling load
capacity
PHOTOCELL
Approx. 30~200 Lux
OFF DELAY
5sec - 40min
COLOUR
White
MATERIAL
Flame retardant PC
IP RATING
IP20
K5015
DEPTH REQUIRED BEHIND CEILING
100mm
WEIGHT
105g excluding cable
K5016
WEIGHT
105g approx
6.0m
Advanced presence detection by passive infrared (PIR) technology
Passive photocell holds lights off when area becomes occupied in
bright ambient conditions
0-40
Off delay in minutes following the last observed movement after which
lights switch off
6m
Detection pattern and approx range in metres at floor level for 2.5m
mounting height (detection pattern is cone shaped).
Sensors Technical
