Edge socket outlets can be mounted on either a wall or suitable bench mounted
trunking. Do not mount or use as a trailing socket or where they may be subject to
excessive moisture or dampness.

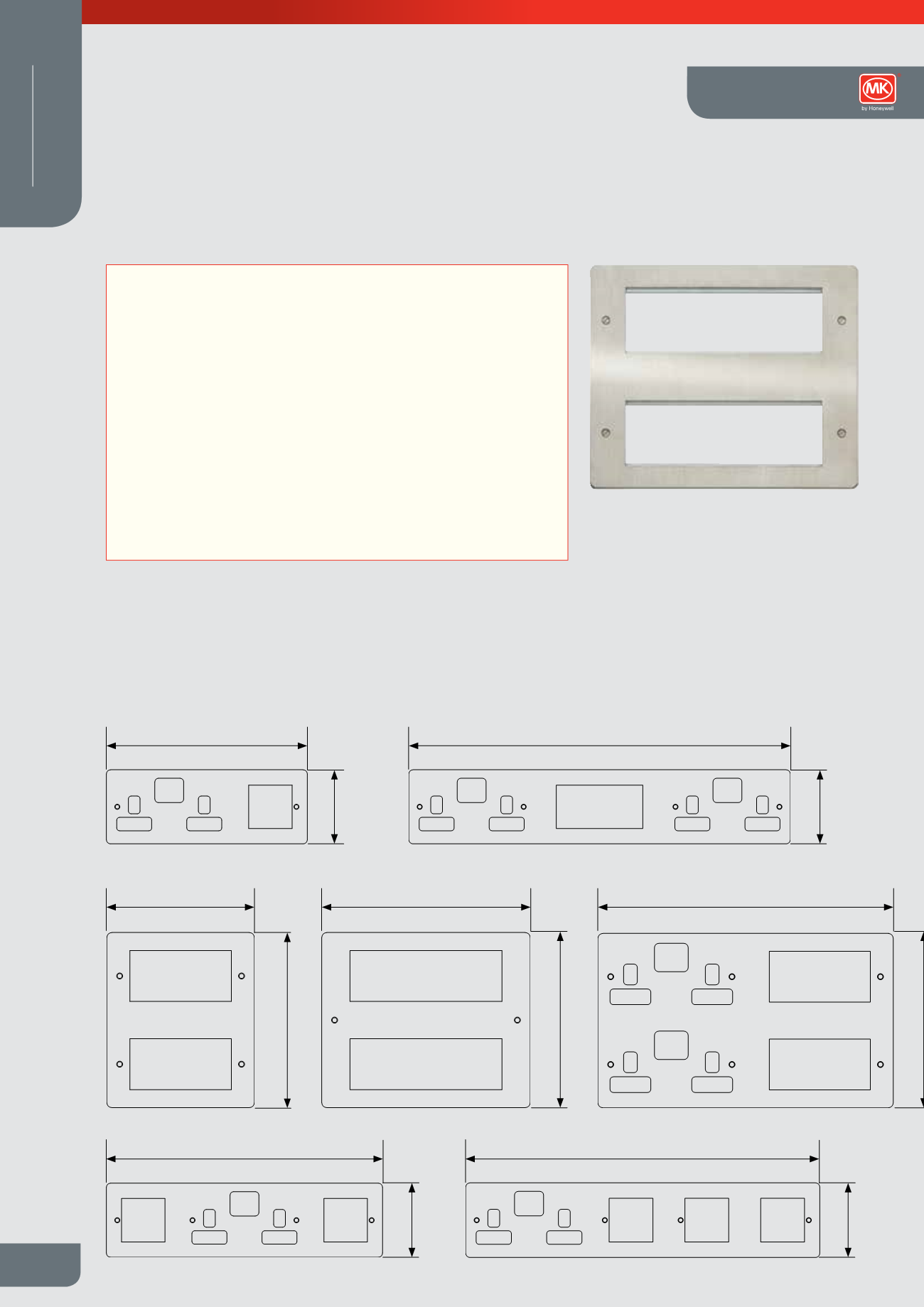

Dimensions (mm)
Combination Plate
Features
l
Metal-capped rockers designed
to match the chosen front plate
finish
l
3 pin operated safety shutter
l
Printed terminal markings on
grey rear mouldings for clearer
identification
l
Top access, angled terminals
make wiring easier and quicker
l
3mm minimum switch contact gap
l
Double pole switching
l
Additional electrical safety from
neutral ‘make first’, ‘break last’
feature
l
Switch contacts with silver
contacts on both surfaces for
good continuity
l
Dual earth terminals on pre-fitted
sockets are for high integrity
earthing
l
Backed out and captive terminal
screws on pre-fitted sockets
l
Pre-configured backboxes to
ensure alignment of the fixing
screws is correct and proper
segregation between circuits is
maintained to comply with
BS 7671 17th Edition wiring
regulations
233.3
146.4
206.3
320.6
86
173.3
173.3
86
K14216 and K14217
K14209
K14210
K14208
293.6
K14100
173.3
407.9
K14205
86
442.8
K14200
86
