CI insulated enclosures
Selection of mounting frames; socket combinations, and site distribution boards
2010
CA08103002Z-EN

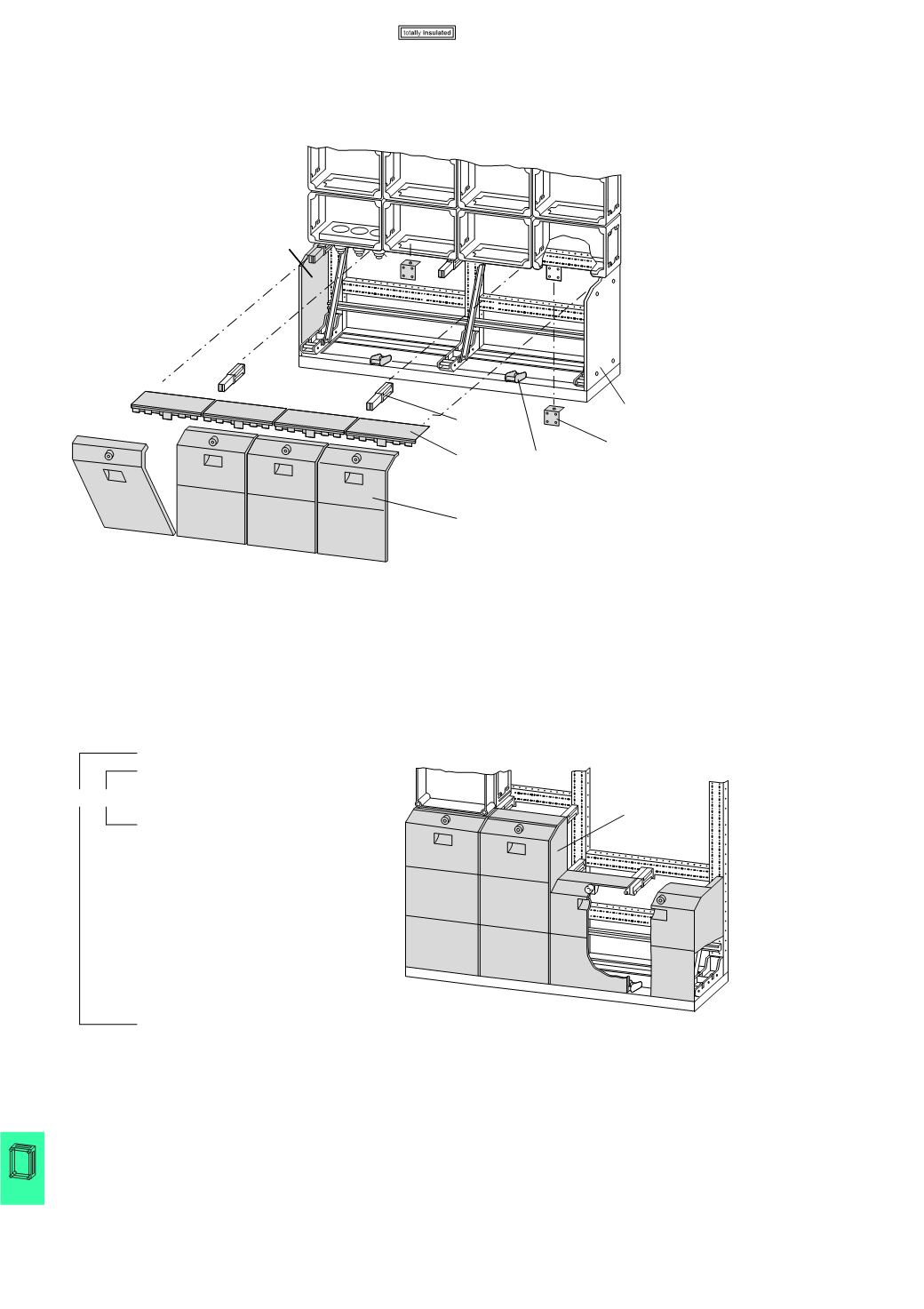

www.eaton.comCable compartement cladding for floor-standing distribution board
Floor-standing distribution boards are mounted on a base. Three cable compartment
heights (250 mm, 500 mm and 750 mm plus 50 mm for the base) are available for
inserting, sorting and marshalling cables. In addition, the base contains internal
cable anchoring rails for T-foot clips. The front of the cable compartments is closed
off with insulating front plates.
Tested to EN 60 439-4
Individual enclosure CI…X-… and distribution board assembled from CI enclosures
up to 630 A fulfil the additional requirements of EN 60 439-4. They are therefore suited
for socket combinations and as system components for site distribution boards.
HDP-ID
DP-ID
FP...-ID
SLHF-ID
SWHDP-ID
SWRL50-ID
SWRL50-ID
Combinability:
In addition, cable compartments of different heights can be
combined. The side openings are closed off with intermediate
plates. Left and righthand versions are available. The height
is the difference of the different front plates.
R = right-hand intermediate plate
25
= 250 mm high intermediate plate
ZP……-ID
25
= 500 mm high intermediate plate
L = left-hand intermediate plate
ZPR25-ID
WW...-ID, WS...-ID
