CI insulated enclosures
Mounting frame selection
2010 CA08103002Z-EN
20/77
Mounting frame selection

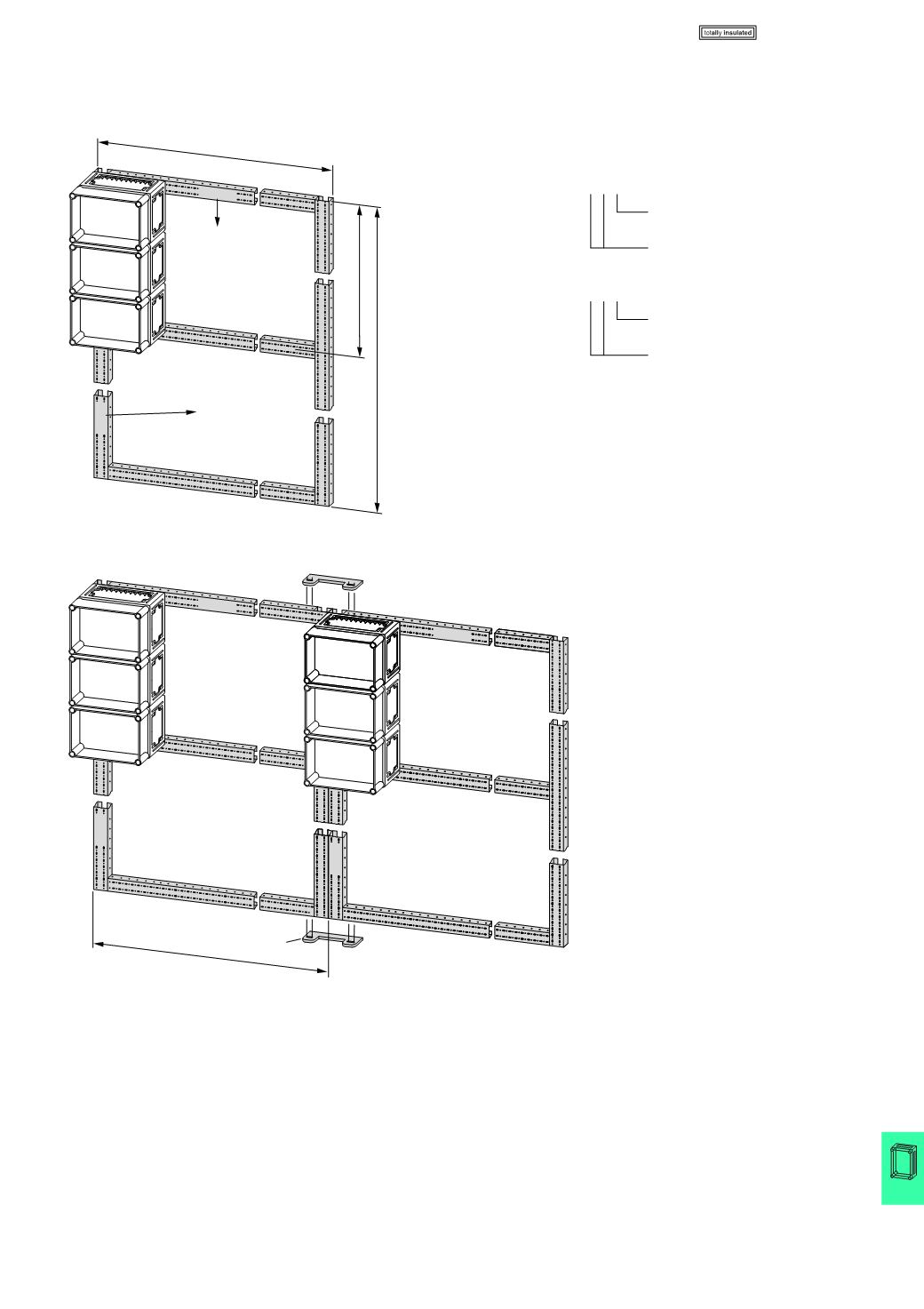

Wall-mounted distributor
Profiles are selected in a 125 mm grid according to
enclosure widths or heights.
Vertical sections:
WS…-ID
Number of 125 mm "steps“
= 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
Vertical wall profile
Horizontal section:
WW…-ID
Number of 125 mm "steps“
= 2, 3, 4, 5, 6, 7, 8, 9
Horizontal wall profile
Vertical and horizontal profiles are connected
with corner plates EVB-ID and cross plates KVB-ID
(order separately).
The vertical profiles of the supporting frame are wall-
mounted with two wall fixing brackets WBW…-ID
each (order separately).
Where wall-mounted distribution boards wider than
1125 mm are required, these are split into several
transportation units. The wall-mounted profiles are
mechanically interconnected at the top or bottom
with the help of an assembly bracket ARB-ID.
① Transport unit
F 750
F
1875
F 1125
WW...-ID
WW2-ID
WW3-ID
WW4-ID
WW5-ID
WW6-ID
WW7-ID
WW8-ID
WW9-ID
WS6-ID
WS7-ID
WS8-ID
WS9-ID
WS10-ID
WS11-ID
WS12-ID
WS13-ID
WS14-ID
WS15-ID
WS...-ID
WW...-ID
WS...-ID
WW...-ID
WS...-ID
ARB-ID
a
WW...-ID, WS...-ID
