Eaton Industrial Switchgear - Xboard Optimal switchgear enclosure

82 / 140

20/78 CI insulated enclosures

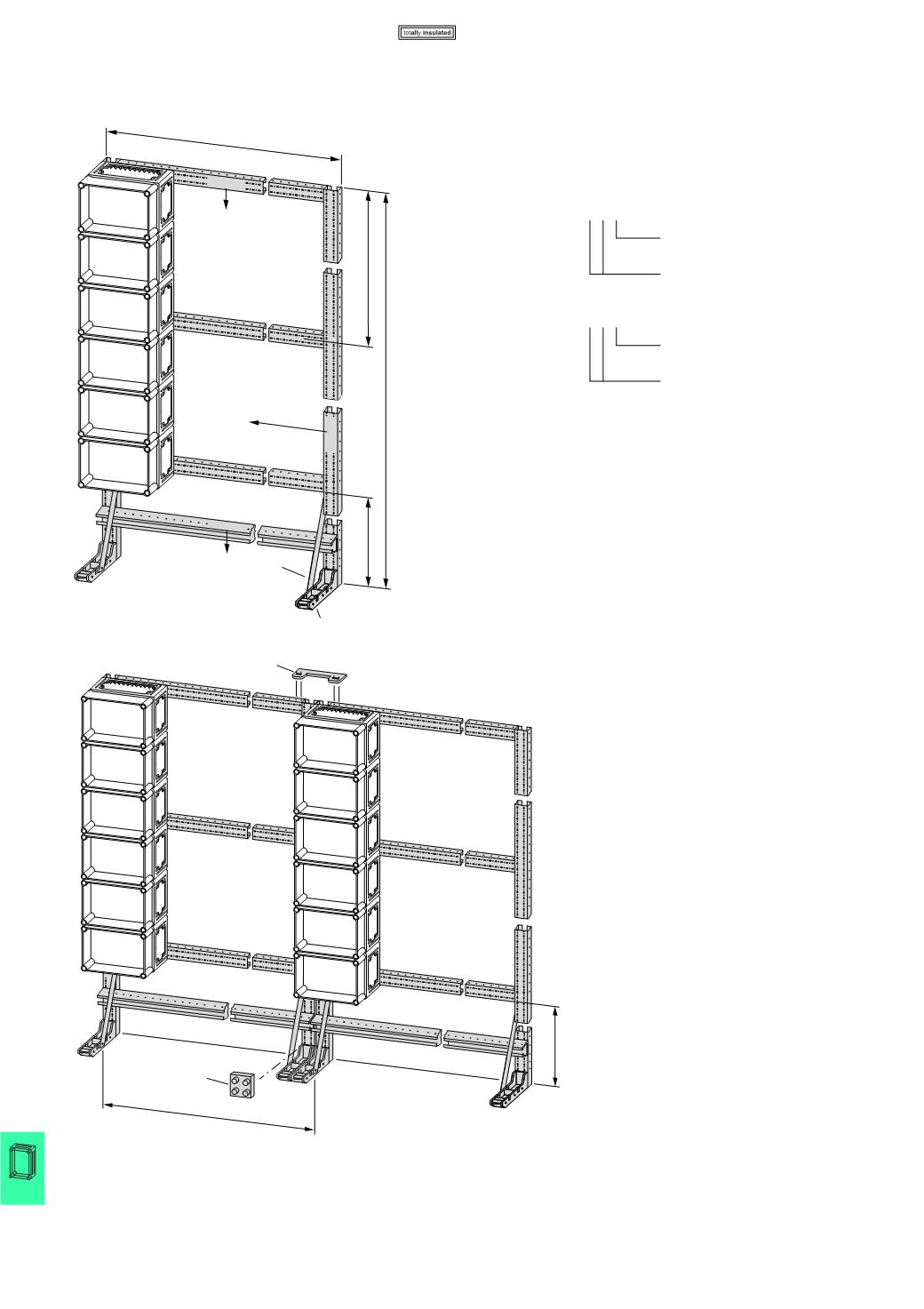

Mounting frame selection
2010 CA08103002Z-EN
Mounting frame selection
Wall-mounting distribution board, supported on the floor
Profiles are selected in a 125 mm grid
according to enclosure widths or heights.
For vertical profiles, an additional 500 mm (4 × 125 mm)
must be added (for KSV…).
Vertical sections:
WS…-ID
Number of 125 mm "steps“
= 10, 11, 12, 13, 14, 15, 16, 17, 18, 19
Vertical wall profile
Horizontal section:
WW…-ID
Number of 125 mm "steps“
= 2, 3, 4, 5, 6, 7, 8, 9
Horizontal wall profile
Vertical and horizontal profiles are connected
with corner plates EVB-ID and cross plates KVB-ID
(order separately).
The vertical profiles of the supporting frame are wall-
mounted with two wall fixing brackets WBW…-ID
each (order separately).
Where larger wall-mounted distribution boards are
required, these are split into several transportation
units. The wall-mounted profiles are mechanically
interconnected with the help of an assembly bracket
ARB-ID and straps LPS-ID.
① Transport unit
500
(4
x 125)
F 750
F
2375
WS...-ID
F 1125
WW...-ID
WW2-ID
WW3-ID
WW4-ID
WW5-ID
WW6-ID
WW7-ID
WW8-ID
WW9-ID
KSV...-ID
KSV2-ID
KSV3-ID
KSV4-ID
KSV5-ID
KSV6-ID
KSV7-ID
KSV8-ID
KSV9-ID
WS10-ID
WS11-ID
WS12-ID
WS13-ID
WS14-ID
WS15-ID
WS16-ID
WS17-ID
WS18-ID
WS19-ID
FHF-ID
STR-ID50
500
(4
x
125)
a
LPS-ID
ARB-ID
WW...-ID, WS...-ID
