CI insulated enclosures
Selection of wiring
2010 CA08103002Z-EN
20/81

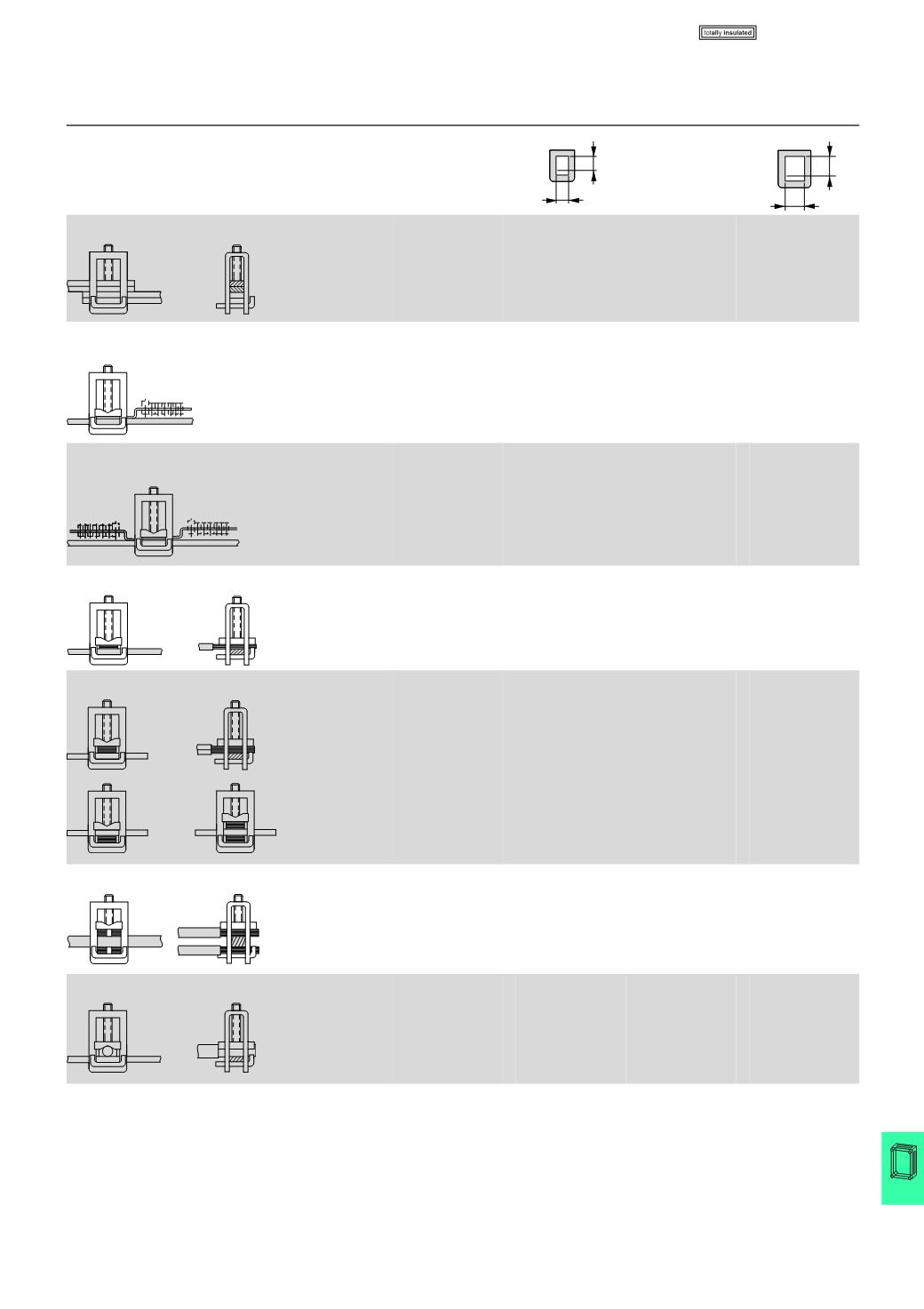

SelectionofwiringConnections to busbars
Type of connection Terminal type
K 12 x 5-1 K 12 x 5-2
Copper busbar with Copper busbar (2x) 12 x 5 (2x) 12 x 5
(3x) 12 x 5
Copper busbar with (1x) strap L-KL-R
(can be fitted with AK 16, AK 35)
(1x) 12 x 5 + L-KL-R (1x) 12 x 5
(2x) 12 x 5
+ L-KL-R
Copper busbar with (2x) strap L-KL-R
(can be fitted with AK 16, AK 35)
- (1x) 12 x 5
(2x) 12 x 5
+ (2x) L-KL-R
Copper busbar with copper strip 12x 5 + 3 x 9 x 0.8
6 x 9 x 0.8
12 x 5 3 x 9 x 0.8
6 x 9 x 0.8
9 x 9 x 0.8
4 x 16 x 0.8
6 x 16 x 0.8
10 x 16 x 0.8
Copper busbar with (2x) copper strip - 12 x 5 + (2x) 3 x 9 x 0.8
(2x) 4 x 16 x 0.8
Copper busbar with (4x) copper strip - 12 x 5 + (4x) 3 x 9 x 0.8
Copper busbar with round copper conductor1) 12x 5 + 16² … 25² 12 x 5 + 25²
1) Flexible with ferrule
15
13
23
21
CI...
