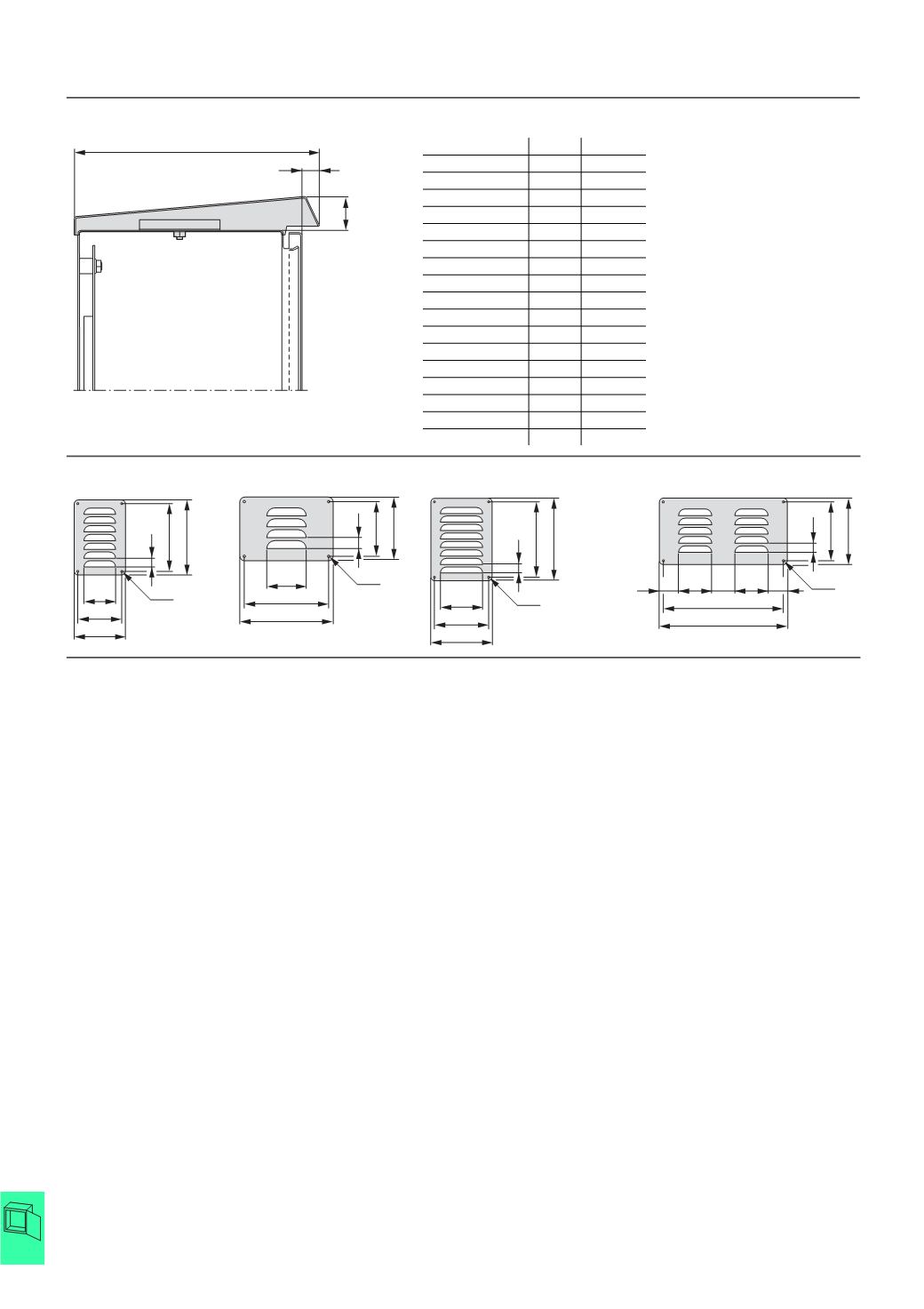

21/32 CS sheet steel wall-mounting enclosure
Outdoor installation
2010 CA08103002Z-EN
Rain canopies
CNP-...-CS
c = Enclosure depth
Ventilating louvers
LVP-20V12-CS LVP-20H12-CS LVP-30V15-CS LVP-30H15-CS
Cable glands, ventilation cable glands, cable grommet
￫See chapter 16, Accessories for panel building
Part no. c + 23 t
CNP-2/150-CS 173 30
CNP-3/150-CS 173 30
CNP-3/200-CS 223 34
CNP-4/150-CS 173 30
CNP-4/200-CS 223 34
CNP-4/250-CS 273 38
CNP-5/150-CS 173 30
CNP-5/200-CS 223 34
CNP-5/250-CS 273 38
CNP-6/200-CS 223 34
CNP-6/250-CS 273 38
CNP-6/300-CS 323 42
CNP-8/200-CS 223 34
CNP-8/250-CS 273 38
CNP-8/300-CS 323 42
CNP-10/300-CS 323 42
CNP-12/250-CS 273 38
20
t
c+23
65
90
105
18 152167
o 4
65
139
154
18 90 105
o 4
90
115
130
18 165180
o 4
65 45 65 37.5 37.5
235
250
18 90 105
o 4
CNP, LVP
