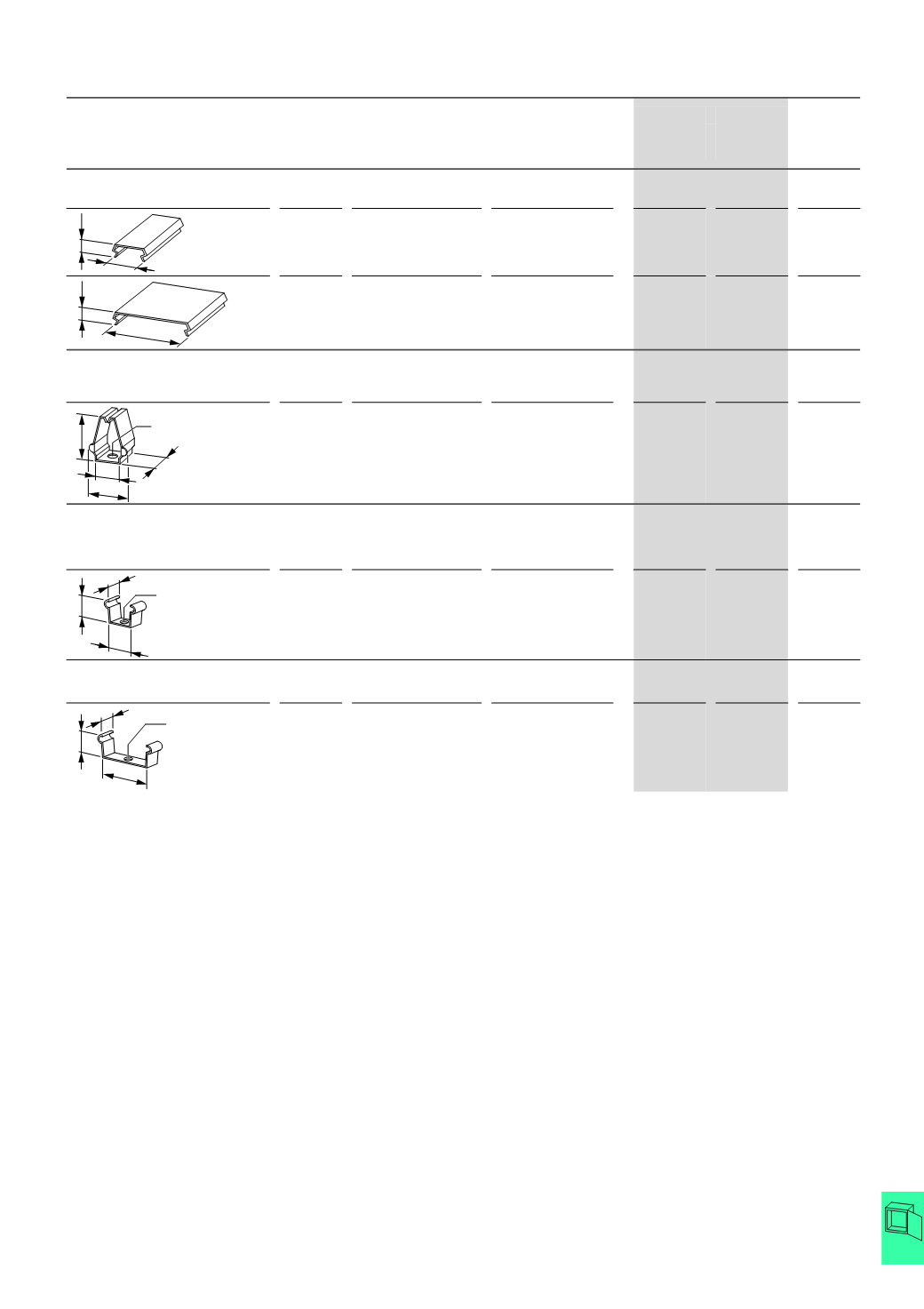

CS sheet steel wall-mounting enclosure
General panel construction: Cable ducts
2010 CA08103002Z-EN
Accessories 21/21
Cable duct cover
Supplied as spares
1500 – – KD25
019649
200 off
1500 – – KD60
024395
100 off
Cable support bracket
• Can be used in KL25/35 (K) cable ducts
• Screw fixing
– 15 4 KH25/35
078974
20 off
Clamping brackets for cable ducts
KL25/…:
Mounting spacing:
≦ 500 mm
– – – KK25
081347
100 off
KL60/60:
Mounting spacing:
≦ 300 mm
– – – KK60
083720
100 off
Length Loading capacity
max. no. of cables
(recommended value)
Type and cross-section Part no.
Article no.
Price
See price list
Std. pack
H 0… V-K
mm mm 2
34 14
73
14
35
30
19
20
o 7
14
19
19
o 4.5
59
19
14 o 4.5
KD..., KH..., KK... HPL21021EN
