CI insulated enclosures
Mounting frame selection
2010 CA08103002Z-EN
20/79

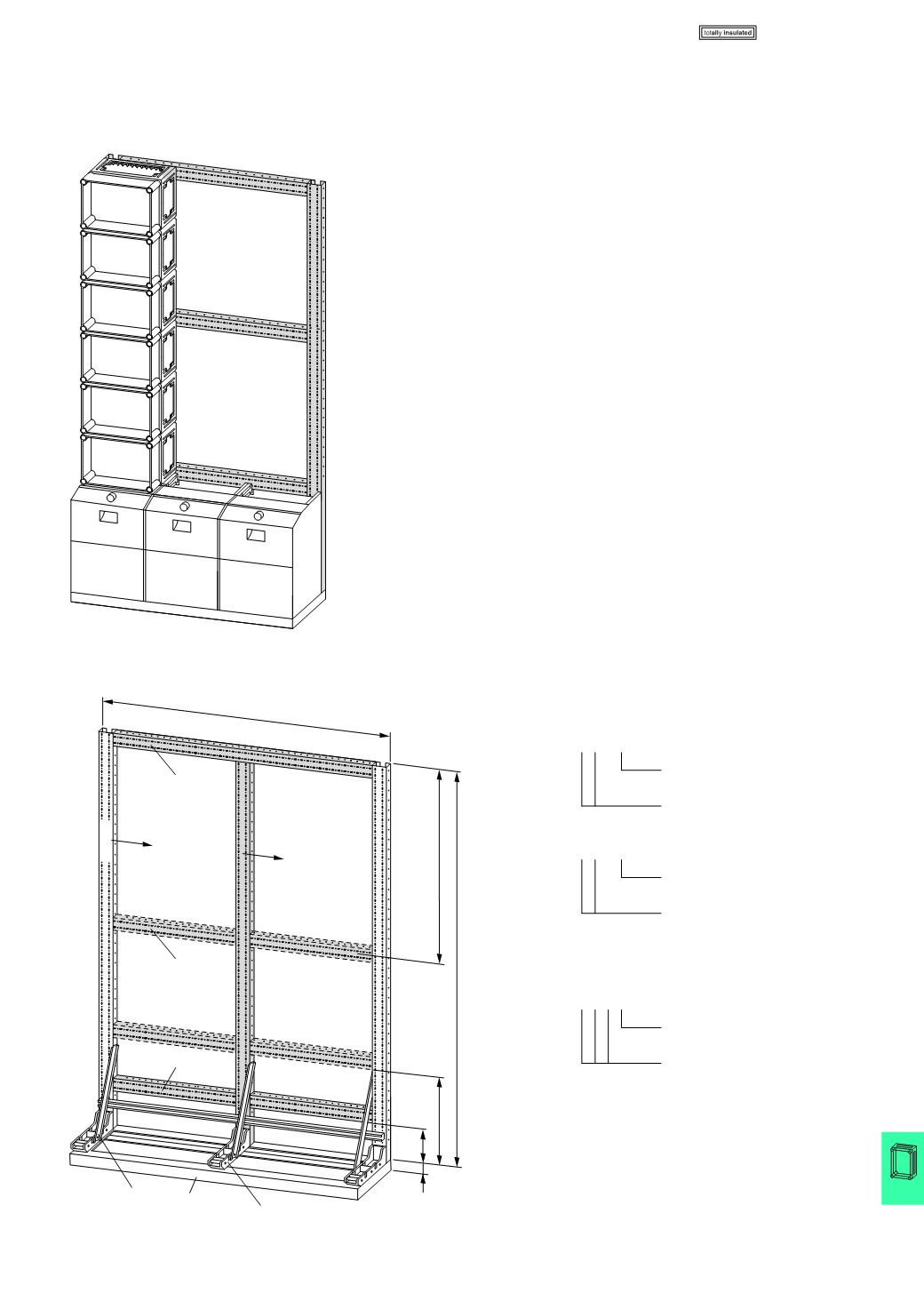

Mounting frame selectionFloor-standing distributor
Larger distribution systems are assembled on support frames and laid out as
floor-standing distribution boards with cable compartment cladding.
Floor-standing distribution board with 4 section width
Profiles are selected in a 125 mm grid according to
enclosure widths or heights.
Vertical sections:
WS…-ID
Number of 125 mm "steps“
= 10, 11, 12, 13, 14, 15, 16, 17, 18, 19
Vertical wall profile
Horizontal section:
WW…-ID
Number of 125 mm "steps“
= 2, 3, 4, 5, 6, 7, 8, 9
Horizontal wall profile
For distribution boards wider than 1500 mm a vertical
center profile is required in addition. The horizontal
profiles are then correspondingly smaller.
WSM…-ID
Number of 125 mm "steps“
= 14, 15, 16, 17, 18, 19, 20, 21, 22, 23
Vertical center wall profile
Vertical and horizontal profiles are connected with
corner plates EVB-ID and cross plates KVB-ID (order
separately).
The vertical profiles of the supporting frame are wall-
mounted with two wall fixing bracketsWBW…-ID each
(order separately).
When mounting very heavy devices, e.g. NZM4,
a reinforced framework is recommended. This can be
achieved with the addition of a further center profile
WSM…-ID and a foot FHF-ID.
500/750
250
50
F
750
F
2875
F 1500
WS...-ID
WS14-ID
WW12-ID
WS15-ID
WS16-ID
WS17-ID
WS18-ID
WS19-ID
WS20-ID
WS21-ID
WS22-ID
WS23-ID
WSM14-ID
WSM15-ID
WSM16-ID
WSM17-ID
WSM18-ID
WSM19-ID
WSM20-ID
WSM21-ID
WSM22-ID
WSM23-ID
WW6A-ID
WW6A-ID
STR...-ID
SS5-ID1500
FHF-ID
WW...-ID, WS...-ID
