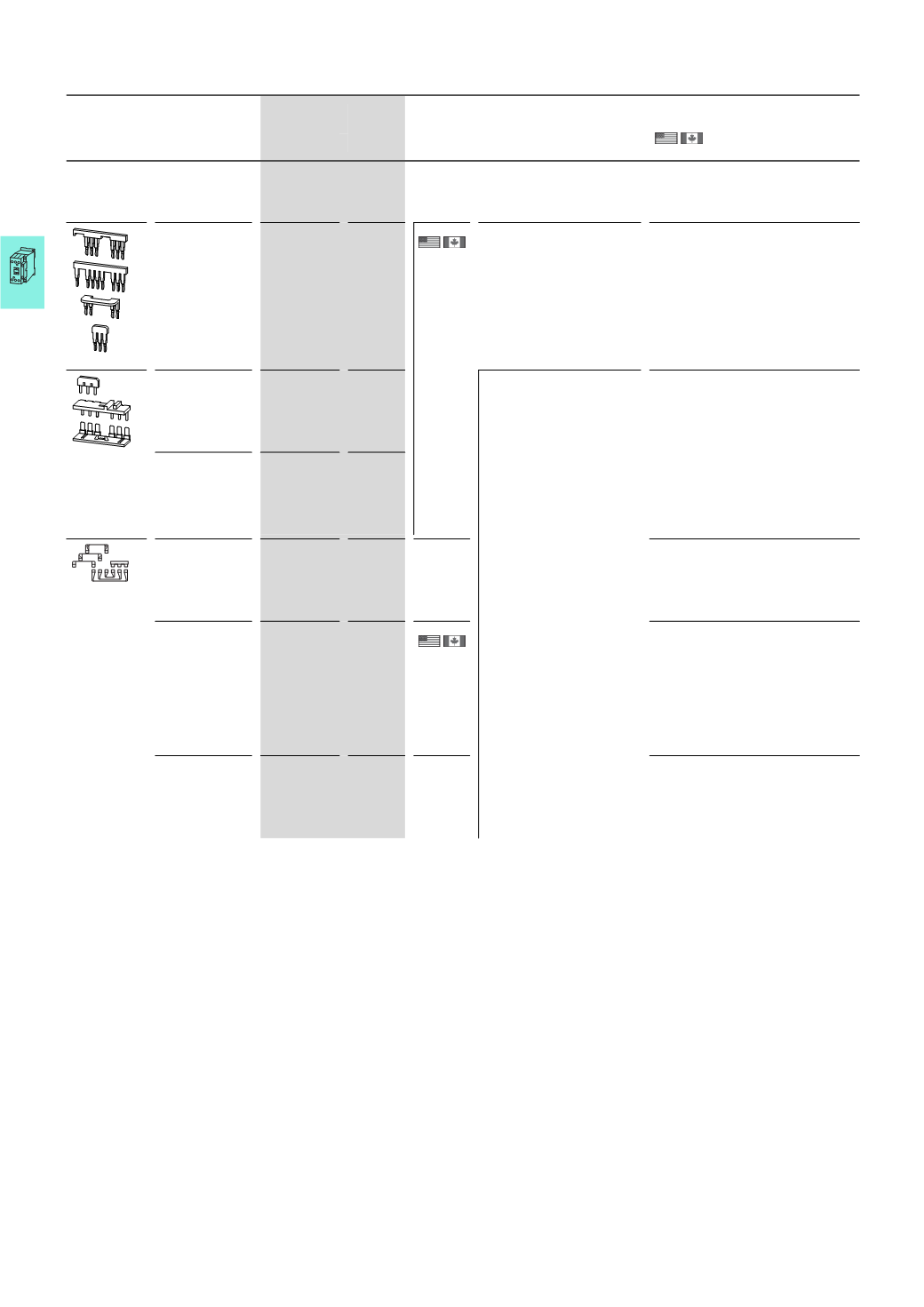

5/58 Contactor relays, contactors
Accessories
2010 CA08103002Z-EN
Accessories
For use with Part no. Price
See price
list
Std. pack Notes Information relevant for export to North
America
Star-delta wiring kit
Main current wiring for
star-delta combination
Including star-point bridge
DILM7/9/12/15
mains contactors
DILM7/9/12/15delta
contactors
DILM7/9/12/15
star contactors
DILM12-XSL
283130
1 Off • Designed for tool-less plug
connection
• Use as DILA-XHIT...
contactor auxiliary contact
￫5/40
The following control cables are
integrated in addition to electrical
interlock:
• Q13: A1 - Q15: 21
• Q13: 21 - Q15: A1
• Q13: A2 - Q15: A2
Product Standards IEC/EN 60947-4-1;
UL 508; CSA-C22.2
No. 14-05;
CE marking
CSA File No. 012528
CSA Class No. 3211-05
NA Certification CSA certified
DILM17/25/32
mains contactors
DILM17/25/32 delta
contactors
DILM17/25/32 star
contactors
DILM32-XSL
283131
Consists of the following
connection bridges:
• Mains - delta contactors
• Delta - star contactors
• Star-point bridge
Product Standards IEC/EN 60947-4-1;
UL 508; CSA-C22.2
No. 14-05;
CE marking
UL File No. E36332
UL CCN NLRV
CSA File No. 012528
CSA Class No. 3211-04
NA Certification UL Listed,
CSA certified
DILM40/50/65
mains contactors
DILM40/50/65 delta
contactors
DILM40/50/65 star
contactors
DILM65-XSL
101058
DILM 80/95 mains
contactors
DILM80/95 delta
contactors
DILM50/65 star
contactors
DILM95-XSL
101486
1 Off –
DILM115/150mains
contactors
DILM115/150 delta
contactors
DILM80/95/115 star
contactors
DILM150-XSL
101487
1 Off Product Standards IEC/EN 60947-4-1;
UL 508; CSA-C22.2
No. 14-05;
CE marking
UL File No. E36332
UL CCN NLRV
CSA File No. 012528
CSA Class No. 2411-03, 3211-04
NA Certification UL Listed,
CSA certified
DILM185/225mains
contactors
DILM185/225 delta
contactors
DILM115/150 star
contactors
DILM225-XSL
101488
1 Off –
DILM...-XSL HPL05058EN
