Eaton Industrial Switchgear - xStart switching, protections and actuating motors

63 / 439

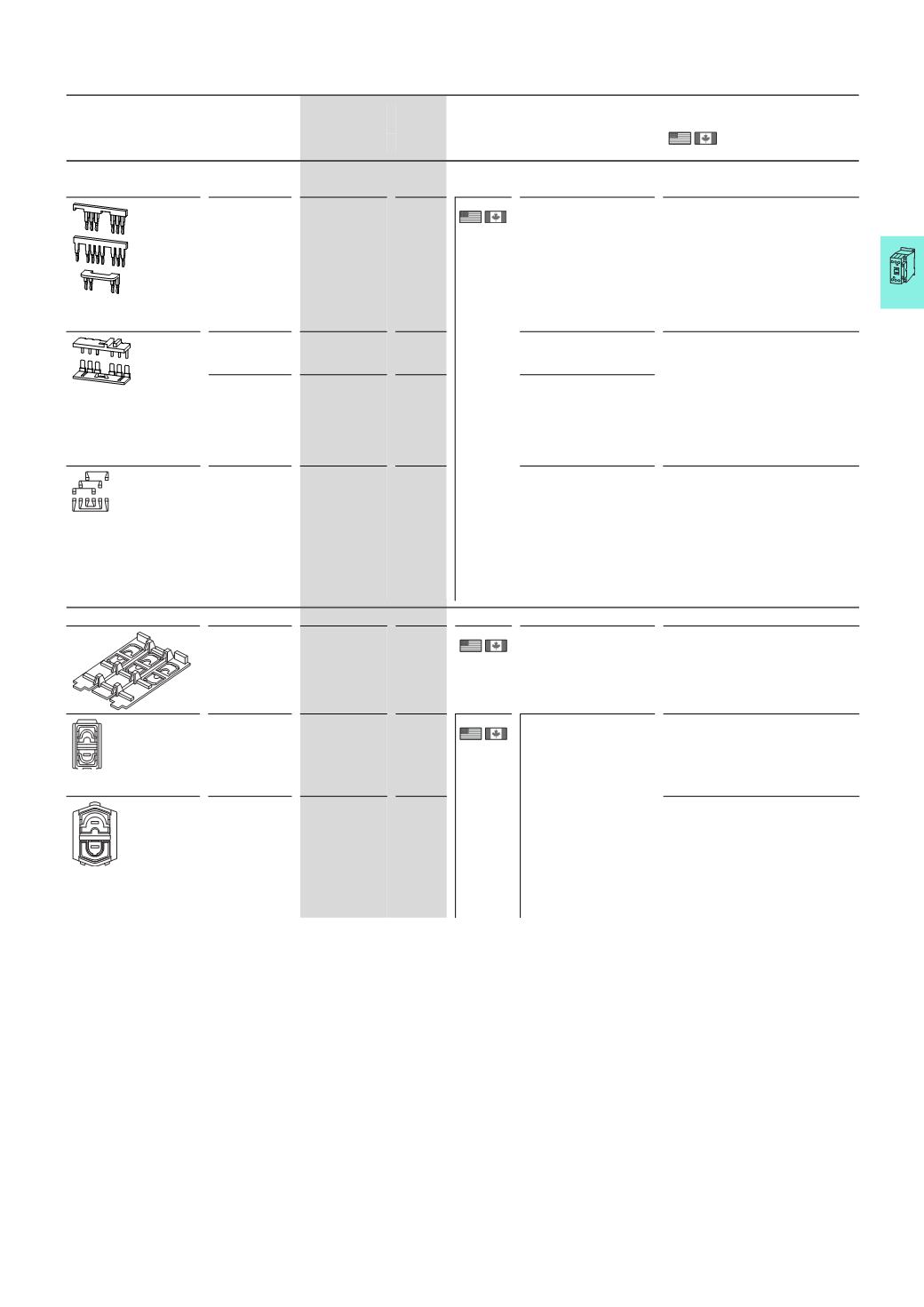

Contactor relays, contactors
Accessories
2010 CA08103002Z-EN
5/59
Accessories
For use with Part no. Price
See price
list
Std. pack Notes Information relevant for export to North
America
Reversing starter wiring kits
Main current wiring for reversing combinations
DILM7
DILM9
DILM12
DILM12-XRL
283108
1 Off • Designed for tool-less
plug connection
• As auxiliary contact
DILA‐XHIT...use￫5/40
Thefollowingcontrolcables
are integrated in addition to
electrical interlock:
• Q11: A1 - Q12: 21
• Q11: 21 - Q12: A1
• Q11: A2 - Q12: A2
Product Standards IEC/EN60947-4-1;
UL 508; CSA-
C22.2 No. 14-05;
CE marking
UL File No. E36332
UL CCN NLRV
CSA File No. 012528
CSA Class No. 3211-05
NA Certification UL Listed, CSA
certified
DILM17
DILM25
DILM32
DILM32-XRL
283109
– Product Standards IEC/EN60947-4-1;
UL 508; CSA-
C22.2 No. 14-05;
CE marking
UL File No. E36332
UL CCN NLRV
CSA File No. 012528
CSA Class No. 3211-04
NA Certification UL Listed, CSA
certified
DILM40
DILM50
DILM65
DILM65-XRL
101057
–
DILM80
DILM95
DILM115
DILM150
DILM150-XRL
101681
– Product Standards IEC/EN60947-4-1;
UL 508; CSA-
C22.2 No. 14-05;
CE marking
UL File No. E36332
UL CCN NLRV
CSA File No. 012528
CSA Class No. 2411-03, 3211-04
NA Certification UL Listed, CSA
certified
IP2X cover set
DILM17
DILM25
DILM32
DILM38
DILMP32
DILMP45
DILM32-XIP2X
118855
1 Off Each cover set consists of
two three-pole and two
single-pole covers.
UL/CSA certification not required
DILM40
DILM50
DILM65
DILM72
DILMP63
DILMP80
DILM65-XIP2X
106491
8 Off 2 covers are required per
phase
The cover set consists of
8 covers
UL/CSA certification not required
DILM80
DILM95
DILM115
DILM150
DILM170
DILMP125
DILMP160
DILMP200
ZB150
DILM150-XIP2X
106492
UL/CSA certification not required
DILM...-XRL, DILM...XIP2X HPL05059EN
