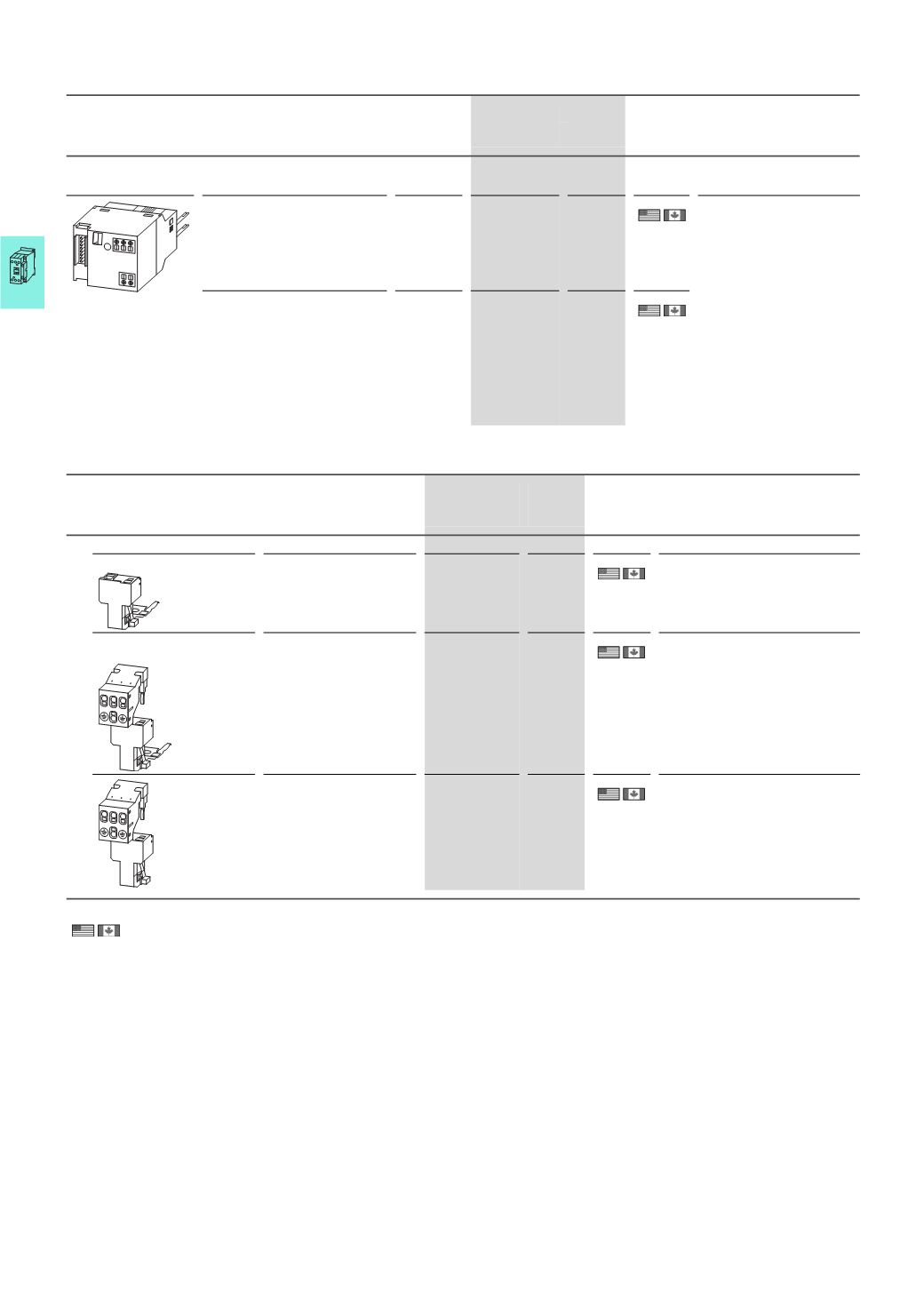

5/62 Contactor relays, contactors
Accessories
2010 CA08103002Z-EN
Accessories
For use with Part no.
Article no.
Price
See price
list
Std. pack Notes
SWD contactor modules
SmartWire-Darwin module for installation on contactors. One module per contactor
Two digital inputs for potential-free
contacts.
1electrical interlock for the surface
mounting of reversing starters.
Messages: Contactor switch status,
status of the digital inputs 1 and 2.
Commands: Contactor actuation
DILM(C)7…-
DILM(C)32
DILM38
DILA
DIL-SWD-32-001 1)
118560
5 Off • Take into account the max.
current consumption of the
contactor coils per SmartWire-
Darwin line.
• A2 terminals must not be
bridged.
• Wiring sets DILM 12-XRL and
PKZM0-XRM12 cannot be used.
• Connection terminals for
electrical interlocking are not
suitable for safety technology.
Two digital inputs for potential-free
contacts.
1electrical interlock for the surface
mounting of reversing starters.
1-0-A switch for manual or automatic
operation.
Messages: contactor switching
position, status of the digital inputs 1
and 2, 1-0-A switch position.
Commands: Contactor actuation
DILM(C)7…-
DILM(C)32
DILM38
DILA
DIL-SWD-32-002 1)
118561
5 Off
For use with Part no.
Article no.
Price
See price
list
Std. pack Notes
Wiring set for motor feeder plug
PE module with contact plate DILM(C)7
DILM(C)9
DILM(C)12
DILM(C)15
DILM12-XMCE2)
121764
5 Off 35x7.5 (15) mm mounting rail (as per
DIN EN 60715) with PE function required.
For connection of:
PE 0.75 – 4 mm2
Motor plate with PE module and
contact plate
DILM(C)7
DILM(C)9
DILM(C)12
DILM(C)15
DILM12-XMCP/E2)
121769
1 Off 35x7.5 (15) mm mounting rail (as per
DIN EN 60715) with PE function required.
For connection of:
L1, L2, L3, PE 0.75 – 2.5 mm2
PKZM0/PKE + DILM(C)7
PKZM0/PKE + DILM(C)9
PKZM0/PKE + DILM(C)12
PKZM0/PKE + DILM(C)15
MSC-D(E)-…-M7…
MSC-D(E)-…-M9…
MSC-D(E)-…-M15…
DILM12-XMCP/T2)
121770
1 Off For connection of:
L1, L2, L3, PE 0.75 – 2.5 mm2
Information relevant for export to North America
1) NA Certification Request filed for UL and CSA
2) Product Standards IEC/EN 60947-4-1; UL 508; CSA-C22.2 No. 14-05; CE marking
NA Certification Request filed for UL and CSA
