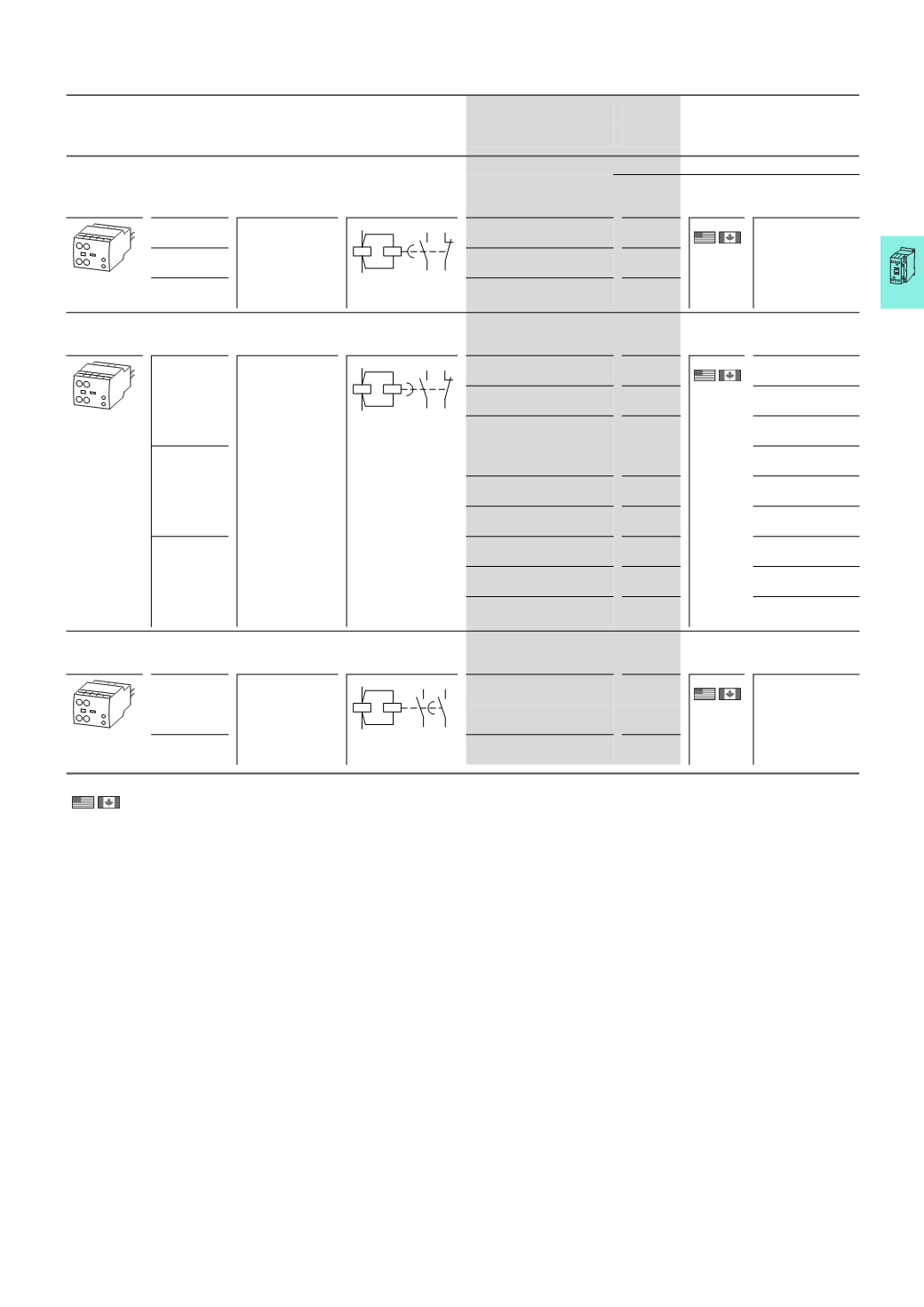

Contactor relays, contactors
Electronic timer modules
2010 CA08103002Z-EN
5/61
Electronic timermodules
For use with Circuit symbol Part no.
Article no.
Price
See price
list
Std. pack Notes
Electronic timer modules
On-delayed
Cannot be combined with top mounting auxiliary contacts
Incl. suppressor circuits
24 V AC/DC DILM7 - DILM32
DILMP20
DILMP32-DILMP45
DILA
DILM32-XTEE11(RA24)
101440
1 Off Time range can be
selected
0.05 s...1 s
0.5 s...10 s
5 s...100 s
100 … 130 V AC DILM32-XTEE11(RAC130)
101441
200 … 240 V AC DILM32-XTEE11(RAC240)
101442
Off-delayed, auxiliary voltage-free
Cannot be combined with top mounting auxiliary contacts
Incl. suppressor circuits
24 V AC/DC DILM7 - DILM32
DILMP20
DILMP32-DILMP45
DILA
DILM32-XTED11-1(RA24)
105210
1 Off Time range
0.05 s...1 s
DILM32-XTED11-10(RA24)
104943
Time range
0.5 s...10 s
DILM32-XTED11-100(RA24)
104946
Time range
5 s...100 s
100 … 130 V AC DILM32-XTED11-1(RAC130)
105211
Time range
0.05 s...1 s
DILM32-XTED11-10(RAC130)
104944
Time range
0.5 s...10 s
DILM32-XTED11-100(RAC130)
104947
Time range
5 s...100 s
200 … 240 V AC DILM32-XTED11-1(RAC240)
105212
Time range
0.05 s...1 s
DILM32-XTED11-10(RAC240)
104945
Time range
0.5 s...10 s
DILM32-XTED11-100(RAC240)
104948
Time range
5 s...100 s
For star-delta applications
Cannot be combined with top mounting auxiliary contacts
Incl. suppressor circuits
24 V AC/DC DILM7 - DILM32
DILMP20
DILMP32-DILMP45
DILA
DILM32-XTEY20(RA24)
101446
1 Off Changeover time
1...30 s
50 ms changeover
delay
Sample circuit
￫Page 5/96
100 … 130 V AC DILM32-XTEY20(RAC130)
101447
200 … 240 V AC DILM32-XTEY20(RAC240)
101448
Information relevant for export to North America
Product Standards IEC/EN 60947-4-1; UL 508; CSA-C22.2 No. 14-05; CE marking
UL File No. E29184
UL CCN NKCR
CSA File No. 012528
CSA Class No. 3211-03
NA Certification UL Listed, CSA certified
57
58
65
66
A1
A2
57
58
65
66
A1
A2
57
58
67
68
A1
A2
DILM32-XTE HPL05061EN
