Eaton Industrial Switchgear - xStart switching, protections and actuating motors

61 / 439

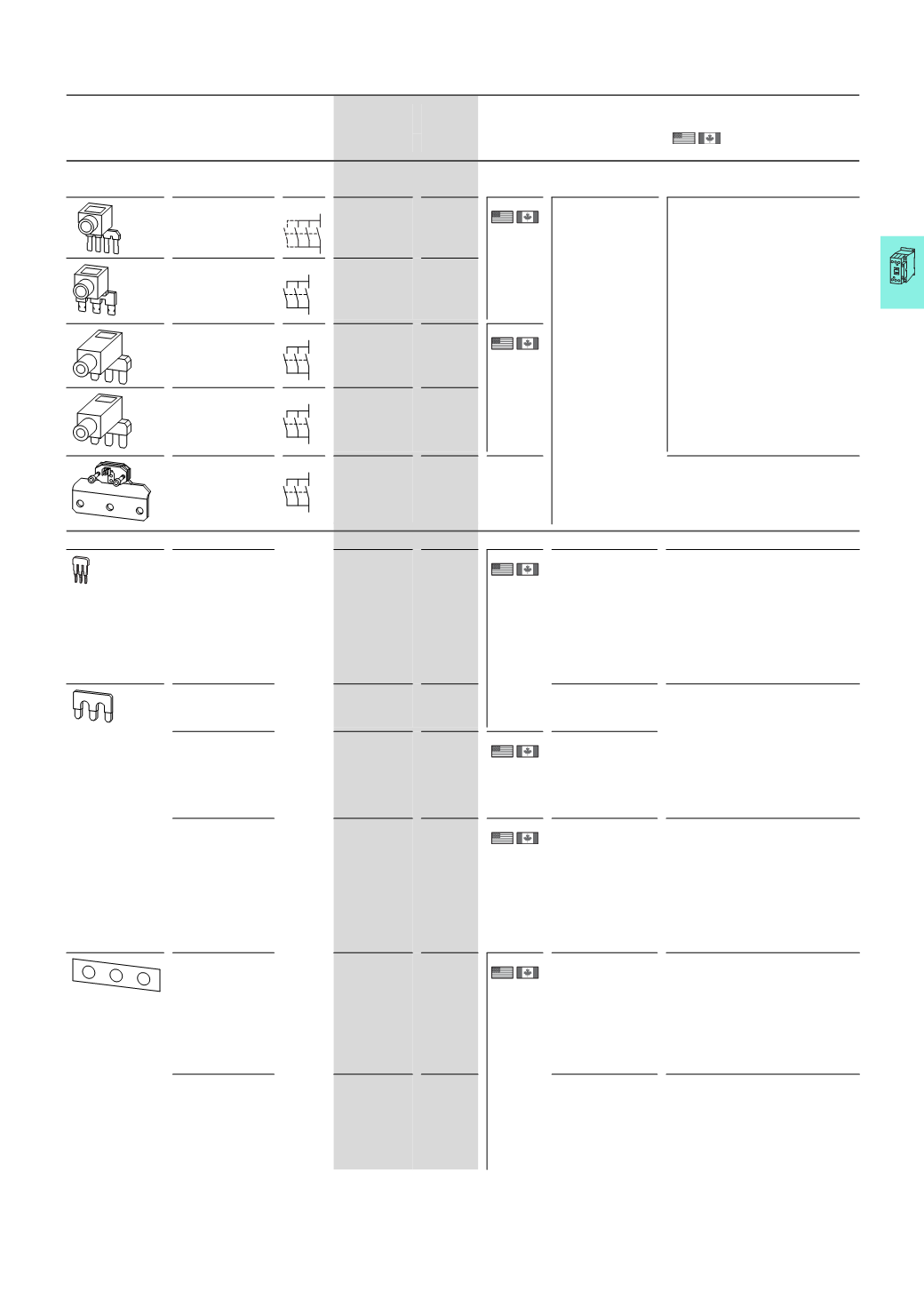

Contactor relays, contactors
Accessories
2010 CA08103002Z-EN
5/57
Accessories
For use with Circuit
symbol
Part no. Price
See price
list
Std. pack Notes Information relevant for export to North
America
Paralleling links for main contacts
Consisting of 2 paralleling links
DILM7 - DILM15 DILM12-XP1
281193
5 Off 4th pole can be
broken off
AC-1 current carrying
capacity of the open
contactor increases
by a factor of 2.5
Protected against
accidental contact in
accordance with VDE
0106 Part 100
A cover is included
with DILM185-XP1 for
protection against
accidental contact.
Connection cross
section for DILM..-
XP1 Technical data
Product Standards IEC/EN60947-4-1;
UL508; CSA-C22.2
No. 14-05;
CEmarking
UL File No. E29096
UL CCN NLDX
CSA File No. 012528
CSA Class No. 3211-03
NA Certification UL Listed, CSA
certified
DILM17 - DILM32 DILM32-XP1
281194
DILM40 - DILM72 DILM65-XP1
281195
1 Off
DILM80 - DILM170 DILM150-XP1
284769
DILM185A DILM185-XP1
208292
1 Off –
Star-point bridges
DILM7 - DILM15 DILM12-XS1
281190
20 Off • Designed as tool-
less plug
connection
• UseasDILA-XHIT...
contactor auxiliary
contact ￫5/40
Product Standards IEC/EN 60947-4-1;
UL 508; CSA-C22.2
No. 14-05;
CE marking
UL File No. E36332
UL CCN NLRV
CSA File No. 012528
CSA Class No. 3211-05
NA Certification UL Listed, CSA
certified
DILM17 - DILM32 DILM32-XS1
281191
• UseasDILA-XHIT...
contactor auxiliary
contact ￫5/40
Product Standards IEC/EN 60947-4-1;
UL 508; CSA-C22.2
No. 14-05;
CE marking
UL File No. E36332
UL CCN NLRV
CSA File No. 012528
CSA Class No. 3211-04
NA Certification UL Listed, CSA
certified
DILM40 - DILM72 DILM65-XS1
281192
10 Off –
DILM80 - DILM170 DILM150-XS1
284768
5 Off – Product Standards IEC/EN 60947-4-1;
UL 508; CSA-C22.2
No. 14-05;
CE marking
UL File No. E36332
UL CCN NLRV
CSA File No. 012528
CSA Class No. 3211-03
NA Certification UL Listed, CSA
certified
DILM185A - DILM400 DILM400-XS1
208291
1 Off A cover is included
for protection against
accidental contact.
Product Standards IEC/EN 60947-4-1;
UL 508; CSA-C22.2
No. 14-05;
CE marking
UL File No. E36332
UL CCN NLRV
CSA File No. 012528
CSA Class No. 3211-04
NA Certification UL Listed
DILM500 DILM500-XS1
208290
A cover is included
for protection against
accidental contact.
Product Standards IEC/EN 60947-4-1;
UL 508; CSA-C22.2
No. 14-05;
CE marking
UL File No. E29096
UL CCN NLDX
NA Certification UL Listed
DILM...-XP1, DILM...-XS1 HPL05057EN
