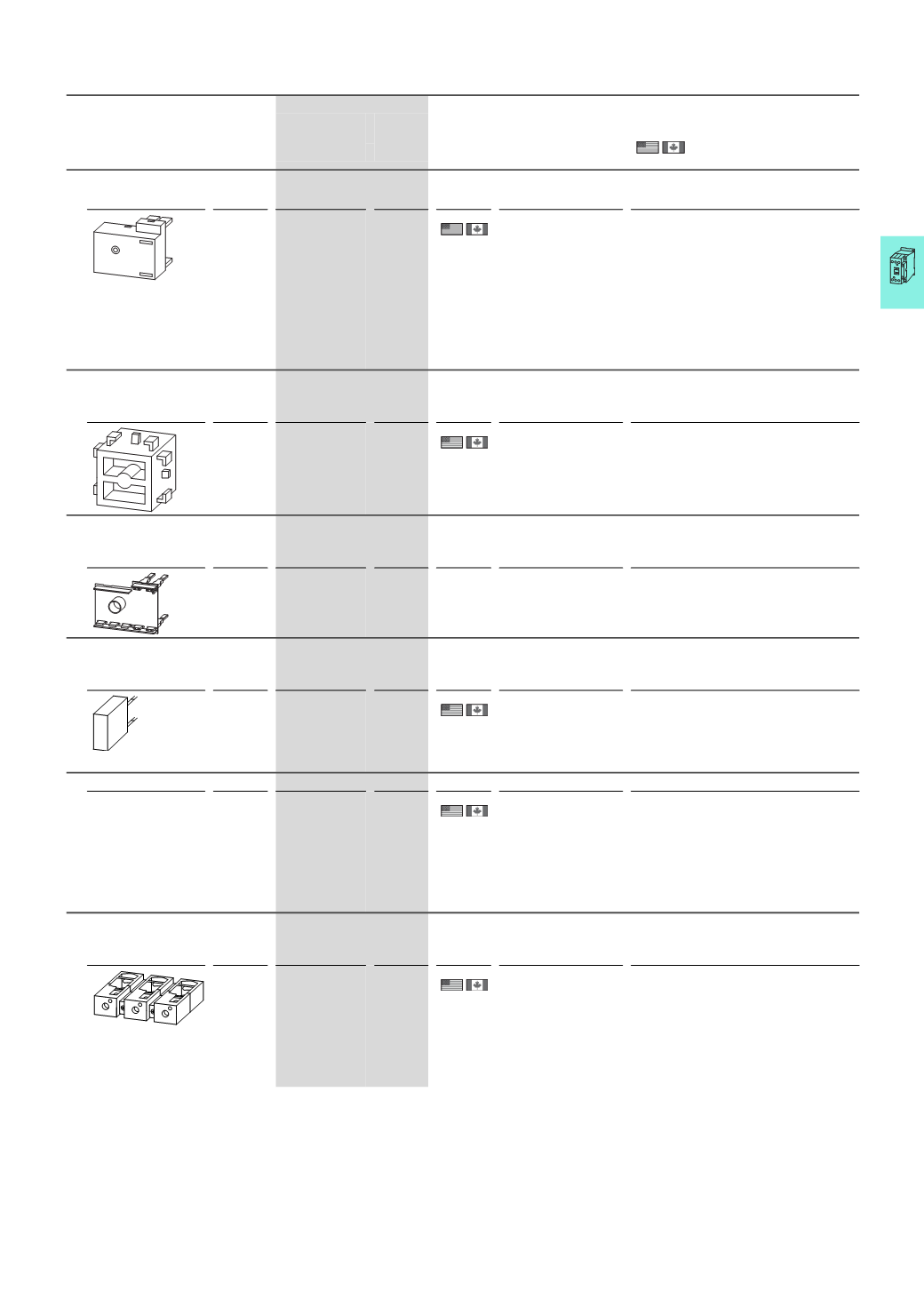

Eaton Industrial Switchgear - xStart switching, protections and actuating motors

67 / 439

Contactor relays, contactors
Accessories
2010 CA08103002Z-EN
5/63
Accessories
For use
with
Part no.
Article no.
Price
See price
list
Std. pack Notes Information relevant for export to
North America
Motor suppressor module
Can be used at 380…575 V 50/60 Hz.
DILM7 -
DILM15
DILM12-XMSM
109399
4 Off • Tool-less version using
tool-less plug
connection
• RC suppressor
• Ambient temperature
-25…+60 °C, open.
• Insulated material,
difficult to ignite
according to UL 94.
• Weight = 0.05 kg.
• UL/CSA approval
applied for
Product Standards IEC/EN 60947-4-1;
UL 508; CE marking
UL File No. E300273
UL CCN NMTR2
NA Certification UL Recognized
Test block
Suitable for switching on contactor
off-load
DILM7 -
DILM38
DILA
DILM32-XMAN
110955
1 Off – UL/CSA certification not required
Printed board contact
For the adaption of a control circuit on a
printed-circuit board
DILM7 -
DILM15
DILA
DILM12-XPBC
109400
4 Off – –
Load resistor
For DC contactors in order to increase
power consumption
DILM17
DILM25
DILM32
DILM38
DILMP32
DILMP45
DILM32-XSPLW24
112419
1 Off Installed in a suppressor
circuit enclosure.
Required when using
special PLC outputs for
actuation, e.g.: Beckhoff
safety controllers.
Product Standards IEC/EN 60947-4-1;
CSA-C22.2 No. 14-05;
CE marking
CSA File No. 225135
CSA Class No. 3211-07
NA Certification CSA certified
Extension terminals
DILM80
DILM95
DILM115
DILM150
DILM170
DILM150-XZK
104486
10 Off Can be fitted on every
main terminal of the con-
tactor.
Connection options:
maximum 2 x 4 mm2 solid
maximum 2 x 2.5 mm2
flexible with ferrule
Product Standards IEC/EN 60947-4-1;
UL 508; CSA-C22.2
No. 14-05;
CE marking
UL File No. E29184
UL CCN NKCR
CSA File No. 012528
CSA Class No. 2411-03, 2411-04
NA Certification UL Listed, CSA certified
Cable terminal block
With control circuit terminal
Consisting of three flat ribbon terminals
DILM250
DILM300A
DILM400
DILM400-XKU-S
208293
1 Off Connection options:
round conductors,
flexible and stranded,
ribbon cables.
Product Standards IEC/EN 60947-4-1;
UL 508; CSA-C22.2
No. 14-05;
CE marking
UL File No. E29184
UL CCN NKCR
CSA File No. 012528
CSA Class No. 3211-04
NA Certification UL Listed, CSA certified
DILM...-X... HPL05063EN
