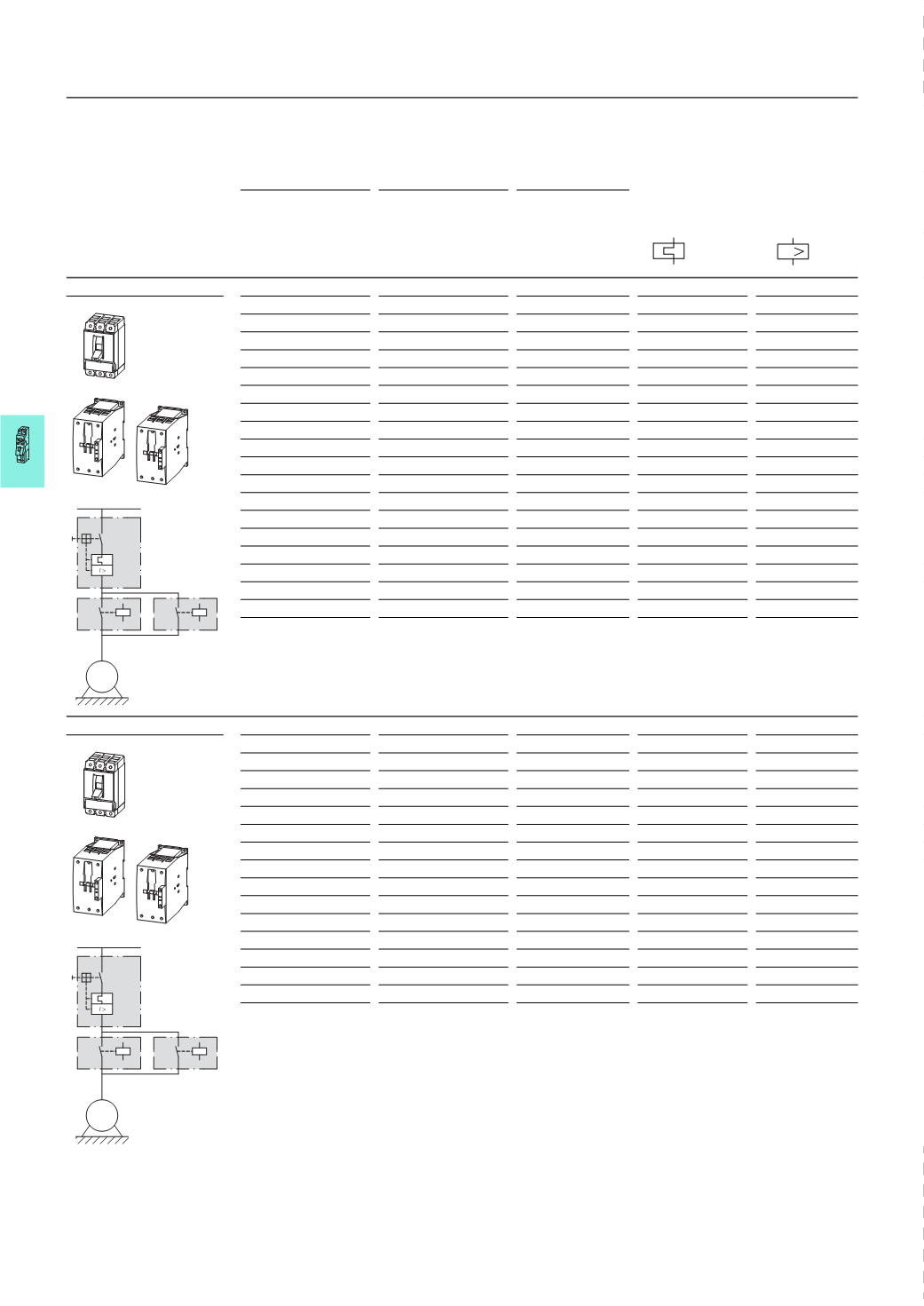

8/24 Motor-starter combinations
Modules
Reversing starters
2010 CA08103002Z-EN
Motor data Setting range
Rated operational power Rated operational current Rated short-circuit
current
Overload trip Short-circuit release
AC-3 AC-3
380 V
400 V
415 V
400 V 400/415 V
P Ie Iq Ir Irm
kW A kA A A
Modules NZMN and DILM
15 29.3 50 25 - 32 320 - 448
18.5 36 50 32 - 40 320 - 560
22 41 50 40 - 50 400 - 700
30 55 50 50 - 63 504 - 882
37 68 50 63 - 80 640 - 1120
45 81 50 80 - 100 800 - 1250
55 99 50 80 - 100 800 - 1250
75 134 50 125 - 160 1280 - 2240
90 161 50 160 - 200 1600 - 2500
110 196 50 160 - 200 1600 - 2500
132 231 50 175 - 350 350 - 4900
160 279 50 175 - 350 350 - 4900
200 349 50 175 - 350 350 - 4900
250 437 50 225 - 450 450 - 6300
315 544 50 275 - 550 550 - 7700
400 683 50 438 - 875 875 - 12250
450 750 50 438 - 875 875 - 12250
500 820 50 438 - 875 875 - 12250
560 947 50 700 - 1400 1400 - 19600
Modules NZMH and DILM
22 41 100 40 - 50 400 - 700
30 55 100 50 - 63 504 - 882
37 68 100 63 - 80 640 - 1120
55 81 100 80 - 100 800 - 1250
55 100 100 100 - 125 1000 - 1750
75 134 100 125 - 160 1280 - 2240
30 55 100 45 - 90 90 - 1260
37 68 100 45 - 90 90 - 1260
45 81 100 45 - 90 90 - 1260
55 100 100 70 - 140 140 - 1960
75 134 100 70 - 140 140 - 1960
90 161 100 110 - 120 220 - 3080
110 196 100 110 - 120 220 - 3080
132 231 100 175 - 350 350 - 4900
160 279 100 175 - 350 350 - 4900
200 349 100 175 - 350 350 - 4900
I
M
3 ~
M
3 ~
NZMN, NZMH, DILM HPL08024EN
