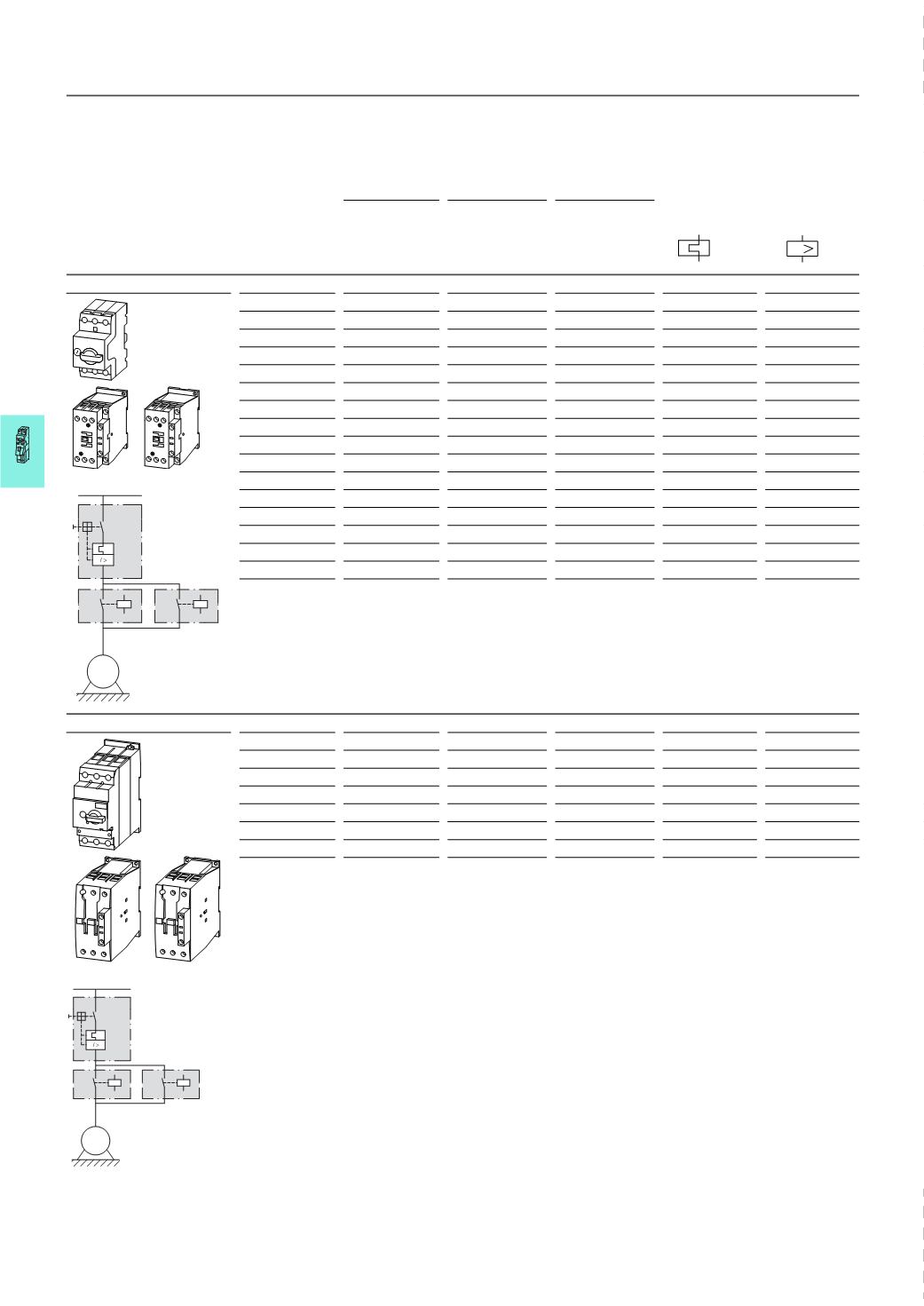

8/22 Motor-starter combinations
Modules
Reversing starters
2010 CA08103002Z-EN
Reversing startersModules
Motor data Setting range
Rated operational
power
Rated operational
current
Rated short-circuit current Overload trip Short-circuit
release
400 V AC-3 380 - 415 V 380 - 415 V
400 V Type “1”
coordination
Type “2”
coordination
P Ie Iq Iq Ir Irm
kW A kA kA A A
Modules PKZM0 and DILM
0.06 0.21 150 50 0.16 - 0.25 3.5
0.09 0.31 150 50 0.25 - 0.4 5.6
0.12 0.41 150 50 0.4 - 0.63 8.82
0.18 0.6 150 50 0.4 - 0.63 8.82
0.25 0.8 150 50 0.63 - 1 14
0.37 1.1 150 50 1 - 1.6 22.4
0.55 1.5 150 50 1 - 1.6 22.4
0.75 1.9 150 50 1.6 - 2.5 35
1.1 2.6 150 50 2.5 - 4 56
1.5 3.6 150 50 2.5 - 4 56
2.2 5 150 50 4 - 6.3 88.2
3 6.6 150 50 6.3 - 10 140
4 8.5 150 50 6.3 - 10 140
5.5 11.3 50 50 8 - 12 168
7.5 15.2 50 50 10 - 16 224
11 21.7 50 50 20 - 25 350
15 29.3 50 50 25 - 32 448
Modules PKZM4 and DILM
5.5 11.3 50 50 10 - 16 224
7.5 15.2 50 50 10 - 16 224
11 21.7 50 50 20 - 25 350
15 29.3 50 50 25 - 32 448
18.5 36 50 50 32 - 40 560
22 41 50 50 40 - 50 700
30 55 50 50 50 - 58 812
34 63 50 50 55 - 65 882
I
M
3 ~
M
3 ~
PKZM, DILM HPL08022EN
