8/18 Motor-starter combinations
Modules
DOL starters
2010 CA08103002Z-EN
DOL startersModules
Motor data Setting range Basic unit
Rated operational
power
Rated operational
current
Ratedshort-circuit
current
Overload trip Short-circuit release
AC-3 AC-3
380 V
400 V
415 V
400 V 380 - 415 V
P Ie Iq Ir Irm Type
kW A kA A A

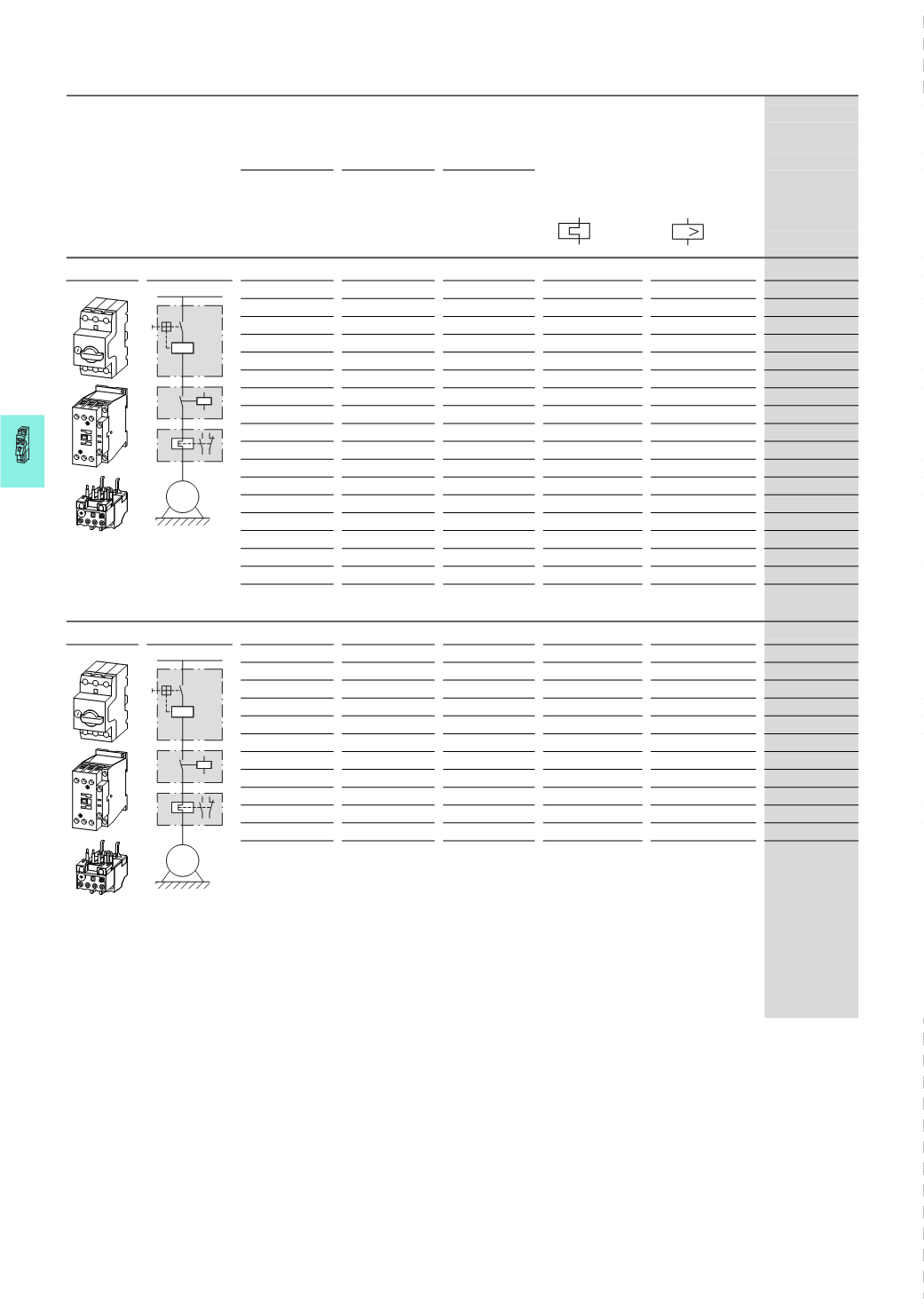

Modules PKM0, DILM and ZB with and without automatic reset
0.06 0.21 100 0.16 - 0.24 3.5 PKM0-0,25
0.09 0.31 100 0.24 - 0.4 5.6 PKM0-0,4
0.12 0.41 100 0.4 - 0.6 8.82 PKM0-0,63
0.18 0.6 100 0.4 - 0.6 8.82 PKM0-0,63
0.25 0.8 100 0.6 - 1 14 PKM0-1
0.37 1.1 100 1 - 1.6 22.4 PKM0-1,6
0.55 1.5 100 1 - 1.6 22.4 PKM0-1,6
0.75 1.9 100 1.6 - 2.4 35 PKM0-2,5
1.1 2.6 100 2.4 - 4 56 PKM0-4
1.5 3.6 100 2.4 - 4 56 PKM0-4
2.2 5 100 4 - 6 88.2 PKM0-6,3
3 6.6 100 6 - 10 140 PKM0-10
4 8.5 100 6 - 10 140 PKM0-10
5.5 11.3 50 8 - 12 168 PKM0-12
5.5 11.3 50 10 - 16 168 PKM0-12
7.5 15.2 50 10 - 16 224 PKM0-16
11 21.7 50 16 - 24 350 PKM0-25
15 29.3 50 20 - 32 448 PKM0-32
Modules NZMN1, DILM and Z...
18.5 36 50 24 - 40 320 - 560 NZMN1-S40
18.5 36 50 3 - 65 320 - 560 NZMN1-S40
22 41 50 40 - 57 400 - 700 NZMN1-S50
22 41 50 3 - 65 400 - 700 NZMN1-S50
30 55 50 40 - 57 504 - 882 NZMN1-S63
30 55 50 3 - 65 504 - 882 NZMN1-S63
37 68 50 50 - 70 640 - 1120 NZMN1-S80
37 68 50 10 - 145 640 - 1120 NZMN1-S80
45 81 50 70 - 100 800 - 1250 NZMN1-S100
45 81 50 10 - 145 800 - 1250 NZMN1-S100
55 99 50 70 - 100 800 - 1250 NZMN1-S100
55 99 50 10 - 145 800 - 1250 NZMN1-S100
I
M
3 ~
I >
M
3 ~
I >
PKZM0, DILM, ZB; NZMN1, DILM, ZB, ZEV HPL08018EN
