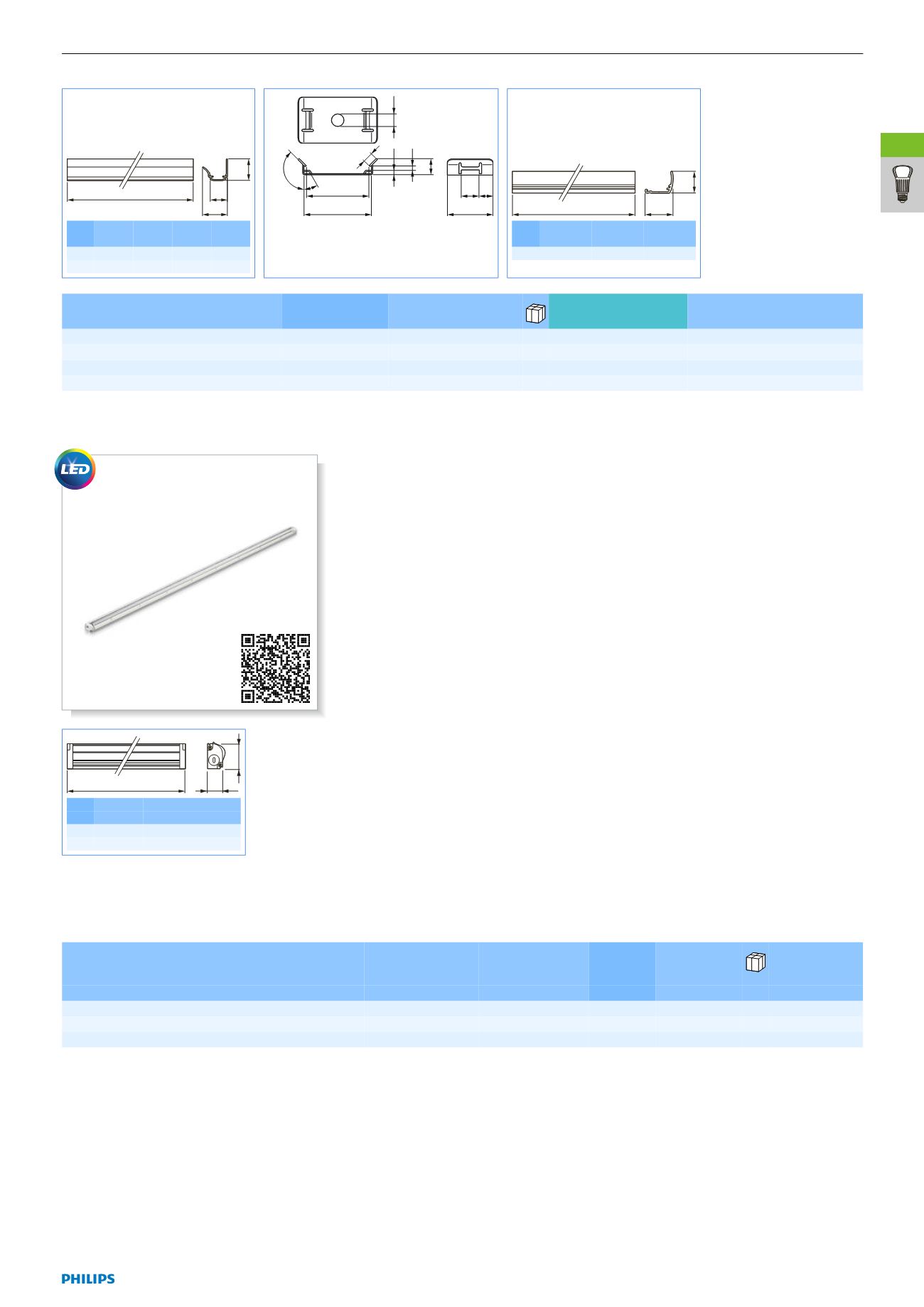

Lamps & Lighting Electronics Catalogue 2014

14 / 272

>
A1 B2
C1
B1
Dim. A1 B1 B2 C1
no. nom. nom. nom. nom.
1 800 45 18 39
2 900 45 18 39
27,7±0,2
30º 135º
29,5
4,3
1,9 1,7
±0,1
7
Ø5,5
8 6
20
Dim. no. 3
A1 B1
C1
Dim. A1 B1 C1
no. nom. nom. nom.
4 1750 37 27
Type Dim. no. Packing type/Packing
configuration
National Order Code Ordering number
Glare free mounting profile SD 850mm 1 UNP / 12 12 8727900927542 00
Glare free mounting profile SD 950mm 2 UNP / 12 12 8727900927559 00
Mounting clips 3 UNP / 200 200 8718291122708 00
Mounting profile 10 degr 1700mm 4 1NO / 18 18 MP10D1700 8718291167808 00
InteGrade LED engines NB
A
C
B1
Dim. A B1 C
no. max. nom. max.
1 575 18.5 11
2 140 18.5 11
The perfect fit
InteGrade LED engines NB enable easy
creation of narrow-beam lighting solutions for
vertical and horizontal display applications.
The narrow beam in combination with the
extremely small dimensions makes this system
suitable for applications like chiller door
and under-canopy lighting, where there is
no room to place a sizable lighting solution.
The unique optical system directs the light
precisely where you want it, thus making
optimum use of the light and energy. Our
LEDs have minimal output degradation and
color shift, so the light remains consistent
throughout their long lifetime. InteGrade LED
is an ideal solution for high-quality lighting
without flicker or color di erences. With
a choice of mounting profiles, mounting
clips, power cables, and Xitanium Constant
Voltage Outdoor LED power drivers, your
under-canopy or display lighting will always be
a perfect fit.
Product benefits
•Smooth and uniform linear lighting of
products on display
•Aesthetic integration of LED lighting;
possible to mount on very small mullions
•Excellent Total Cost of Ownership with
attractive payback times
Product features
•Energy savings of up to 55% (102 W com-
pared to 224 W for a TL5 28/35 W system
in a 3.75 m cabinet)
•Dedicated Xitanium LED Outdoor drivers
for reliable operation
•Scalable to length
•An InteGrade connector makes the electrical
connection between two LED engines; an
inline lock fixes the engine in a profile
Application
•Vertical and horizontal linear floodlighting,
mounted on very small chiller door mullions,
canopies and island freezers
•Display lighting in supermarkets, refrigerated
cabinets, retail environments, libraries,
museums
System
•InteGrade LED engines and accessories
are designed and marketed together, as
we believe good system design is crucial to
e ective functioning of the system, and it
also facilitates an easy design-in
Type Colour
Rendering
Index
Correlated Colour
Temperature
Life to 70% lumen
maintenance
Dim. no. Packing type/
Packing
configuration
Ordering
number
8718291...
(Ra) (K) (h)
InteGrade ENG vision 575mm(23") 830 NB 85 3,000 50,000 1 1NO / 24 24 25785100
InteGrade ENG vision 575mm(23") 840 NB 85 4,000 50,000 1 1NO / 24 24 25787500
InteGrade ENG vision 140mm(6") 840 NB 85 4,000 50,000 2 1NO / 24 24 25783700
Philips Lamps and Lighting Electronic Catalogue 2014 14
01
LED
