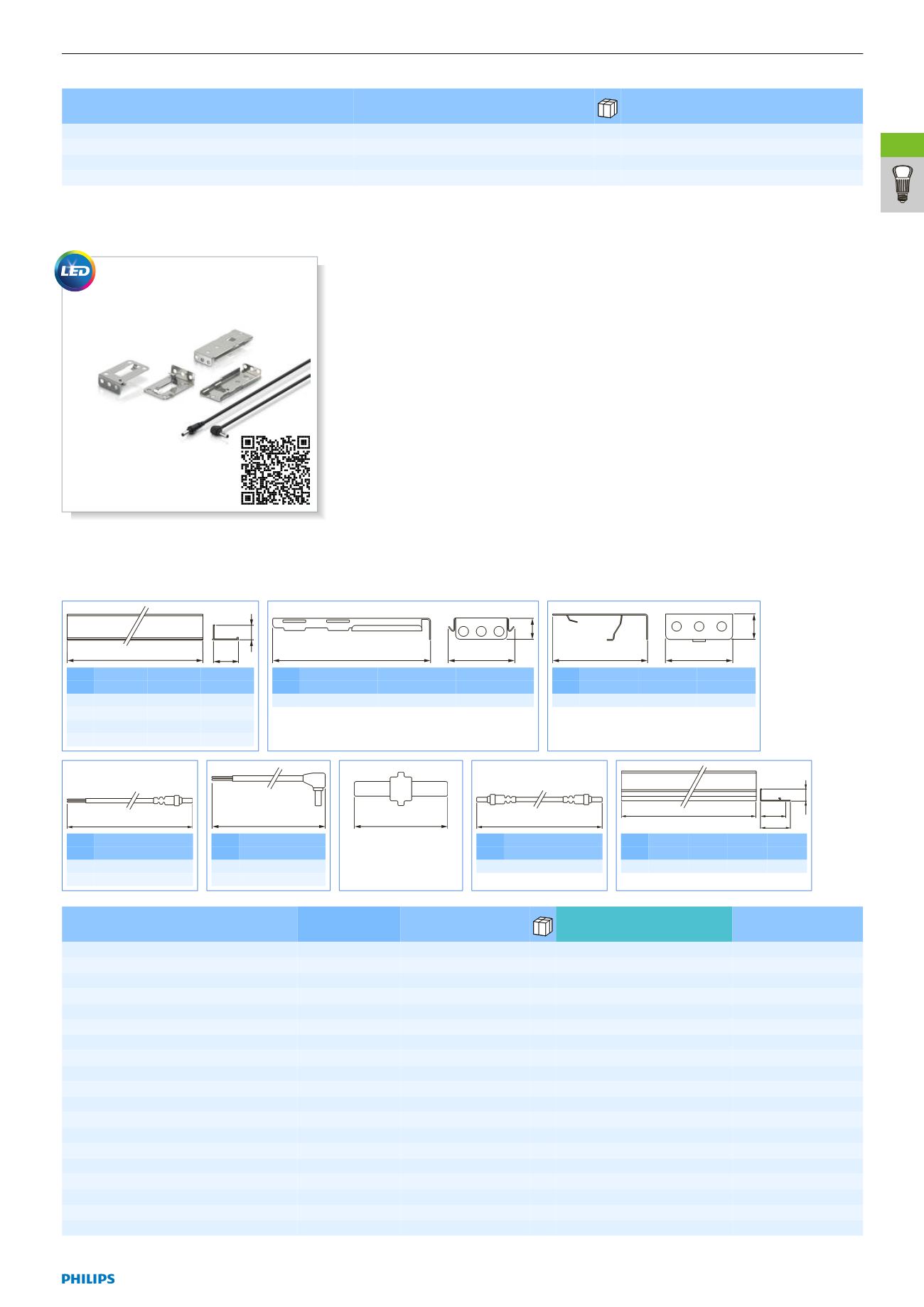

Type Packing type/Packing configuration Ordering number 8718291...
InteGrade prof 2000mm(79") T style CTR 1NO / 16 16 67646100
InteGrade profile 2000mm(79") T style SD 1NO / 16 16 67648500
InteGrade mounting clip T style profile 1NO / 100 100 67650800
InteGrade profile 2000mm(79") L style 1NO / 24 48 25791200
Accessories for InteGrade LED fixtures
The perfect fit
InteGrade LED accessories enable easy
creation of shelf or display lighting based on
InteGrade LED fixtures. These accessories
include a choice of power cables, Xitanium
Constant Voltage Outdoor LED power
drivers and, where necessary, mounting clips.
With this choice of accessories your shelf or
display lighting will always be a perfect fit.
The InteGrade LED fixture comprises a
profile, one or more connectors, and inline
locks. These parts can be ordered as spare
parts if required.
Product Benefits
•Aesthetic integration of InteGrade LED
lighting below shelves or other surfaces
•Easy installation thanks to the preassembled
InteGrade LED fixture, which fits most
commonly used shelves
Product features
•Dedicated InteGrade cabling allows
connection to own connector system.
•With a choice of under-shelf or shelf-arm
mounting clips, InteGrade LED fixtures
can be installed in shelf rack cabinets and
displays.
•Dedicated Xitanium LED Outdoor drivers
for reliable operation
Applications
•Shelf and display lighting in supermarkets,
refrigerated cabinets, retail environments,
libraries, museums
System
•InteGrade LED fixtures and accessories
are designed and marketed together, as
we believe good system design is crucial to
e ective functioning of the system, and it
also facilitates an easy design-in.
B1 A1
C1
Dim. A1 B1 C1
no. nom. nom. nom.
1 2000 34.0 24.8
2 1175 22.2 11.9
3 875 22.2 11.9
4 2000 22.2 11.9
C1
A1 B1
Dim. A1 B1 C1
no. nom. nom. nom.
5 71 32 10
C1
A1 B1
Dim. A1 B1 C1
no. nom. nom. nom.
6 47 30.5 12.5
A
Dim. A
no. nom.
7 2500
8 1000
A
Dim. A
no. nom.
9 1000
10 2500
20 mm
Dim. no. 11
A
Dim. A
no. nom.
12 500
B2
B1
A1
C1
Dim. A1 B1 B2 C1
no. nom. nom. nom. nom.
13 2000 31 26 11.9
Type Dim. no. Packing type/Packing
configuration
National Order Code Ordering number
8718291...
InteGrade profile 2000mm(79") T style SD 1 1NO / 16 16 67648500
InteGrade mounting clip T style profile 1NO / 100 100 67650800
InteGrade magnet for M style profile 1NO / 100 100 70727100
InteGrade mounting clip shelf arm 5 1NO / 100 100 IGMCSA 21879100
InteGrade mounting clip under shelf 6 1NO / 100 100 INTGRMNTCLUNDSH 21881400
InteGrade power cable 2.5m(98") white 7 1NO / 24 24 INTGR2PWRCABWH 22148700
InteGrade cable 1m(39") black angle 9 1NO / 24 24 INTGR1CABBL 22136400
InteGrade cable 1m(39") white angle 9 1NO / 24 24 IGC139WA 22142500
InteGrade cable 2.5m(98") black angle 10 1NO / 24 24 IGC2.5BA 22146300
InteGrade cable 2.5m(98") white angle 10 1NO / 24 24 INTGR2CABWH 22150000
InteGrade connector 11 1NO / 500 500 IGCON 22115900
InteGrade power cable 1m(39") black 8 1NO / 24 24 INTGR1PWRCABBL 21812800
InteGrade power cable 2.5m(98") black 7 1NO / 24 24 INTGR2PWRCABBL 22144900
InteGrade profile 1175mm(46") 2 1NO / 48 48 INTGR1175PR 21955200
InteGrade profile 875mm(34") 3 1NO / 48 48 INTGR875PR 21953800
InteGrade engine lock inline 1NO / 100 100 IGENGLI 21951400
InteGrade spacer cable 0.5m black 12 1NO / 24 24 INTGR05SPCABBL 22152400
InteGrade spacer cable 0.5m white 12 1NO / 24 24 INTGR05SPCABWH 22154800
InteGrade power cable 1m(39") white 8 1NO / 24 24 IGPC139W 22140100
More data see next page
