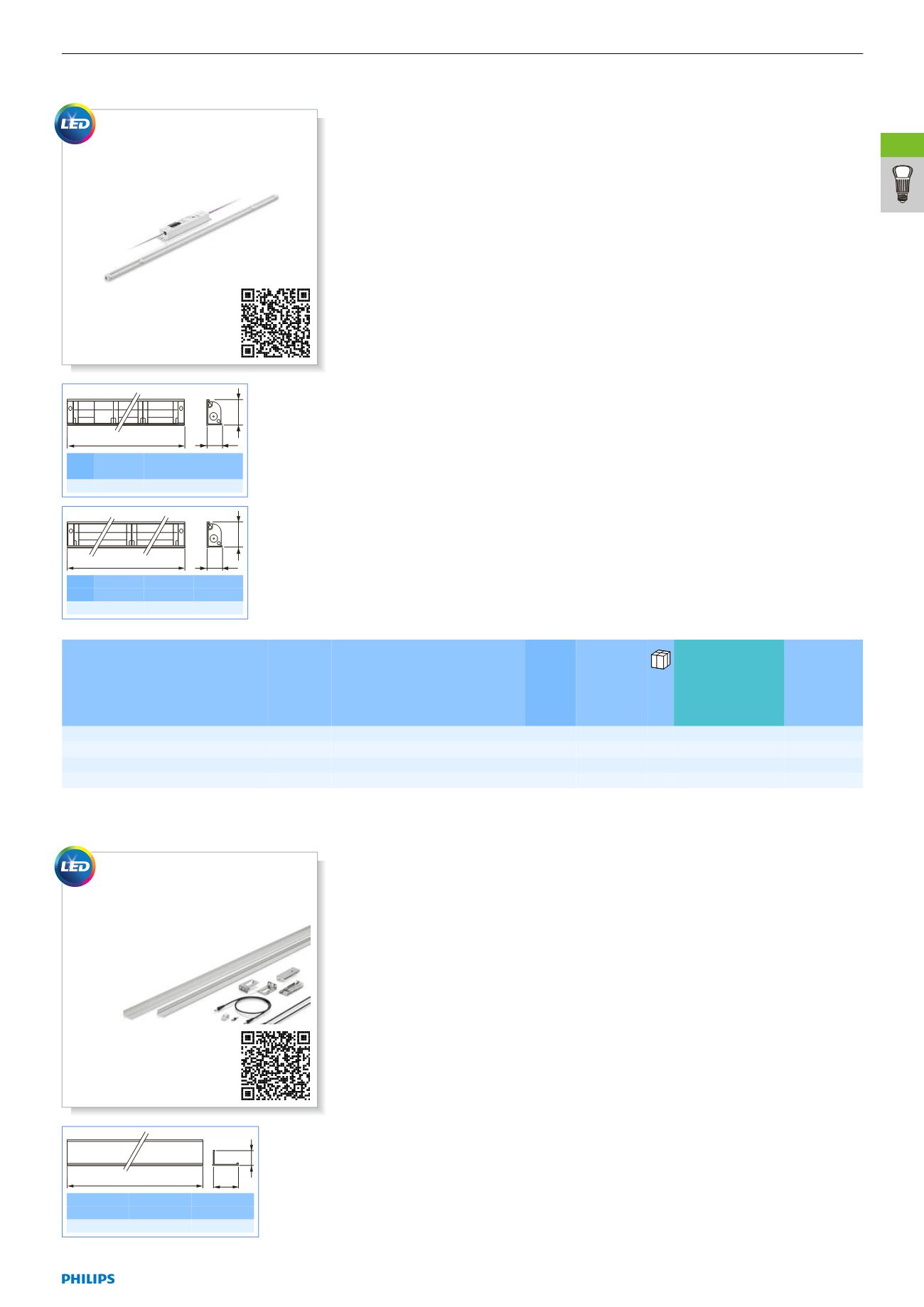

LED and Systems
>
LED Display Lighting SystemsInteGrade LED fixture system
A
C
B1
Dim.
A
B1
C
no.
max.
nom.
max.
1
883
23
12
A
C
B1
Dim.
A
B1
C
no.
max.
nom.
max.
2
1178
23
12
The perfect fit
The InteGrade LED fixture system is an
energy-e cient way to create an enjoyable
shopping experience. Thanks to its compact
dimensions, the fixture can be aesthetically
integrated below and inside shelves, e. g.
in a store interior or refrigerated cabinet.
Asymmetrical optics direct the light where
you want it, thus making optimum use of the
light and energy. The products or background
you want lit will be presented uniformly, with
reduced glare and dark spots. Our LEDs have
minimal output degradation and colour shift,
so the light remains consistent throughout
their long lifetime. InteGrade LED is an ideal
solution for high-quality lighting without flicker
or colour di erences. The fixture consists of
a profile with LED engines and inline locks.
Mounting accessories, cables and LED power
driver are available separately.
Product benefits
•Excellent Total Cost of Ownership with
attractive payback times
•Aesthetic integration of LED lighting;
uniform light distribution
•Easy to install: the fixtures have standard
dimensions and so fit most commonly used
shelves
Product features
•Energy savings of up to 65% (10 W
compared to a 28 W TL5 system)
•Superb asymmetrical optics
•InteGrade cabling allows connection to own
connector system
•5-year Philips warranty (InteGrade LED
fixture in combination with
Philips cables and Philips LED power driver)
Applications
•Shelf and linear accent lighting in su-
permarkets, refrigerated cabinets, retail
environments, libraries, museums
System
The InteGrade LED fixtures and accessories
are designed and marketed together, as
we believe good system design is crucial to
e ective functioning of the system, and it also
facilitates an easy design-in.
Type
Colour
Rendering
Index
Correlated
Colour
Temperature
Life to 70%
lumen
maintenance
Dim.
no.
Packing
type/
Packing
configu-
ration
National Order
Code
Ordering
number
8718291...
(R
a
)
(K)
(h)
InteGrade fixture value 875mm(34") 830
85
3,000
50,000
1
1NO / 12 12
INTGR875FIX830
236269
00
InteGrade fixture value 1175mm(46") 830
85
3,000
50,000
2
1NO / 12 12
INTGR1175FIX830
236306
00
InteGrade fixture value 875mm(34") 840
85
4,100
50,000
1
1NO / 12 12
INTGR875FIX840
236245
00
InteGrade fixture value 1175mm(46") 840
85
4,100
50,000
2
1NO / 12 12
INTGR1175FIX840
236283
00
Accessories for InteGrade LED engines
B1
A1
C1
A1
B1
C1
nom.
nom.
nom.
2000
34
24.8
The perfect fit
InteGrade LED accessories enable easy
creation of shelf or display lighting based on
InteGrade LED engines. With a choice of
mounting profiles, mounting clips, power
cables, and Xitanium Constant Voltage
Outdoor LED power drivers, your shelf or
display lighting will always be a perfect fit.
Product Benefits
•Aesthetic integration of InteGrade LED
lighting below shelves or other surfaces
•Easy to install
Product Features
•Dedicated InteGrade cabling allows
connection to own connector system.
•InteGrade profiles can be combined with
under-shelf or shelf-arm mounting clips
for installation in shelf rack cabinets and
displays. The InteGrade profile (F style) can
be screwed directly onto a surface
•InteGrade connector for electrical
connection between two LED engines
•Inline lock to fix engine in profile
•Dedicated Xitanium LED Outdoor drivers
for reliable operation
Applications
•Shelf and display lighting in supermarkets,
refrigerated cabinets, retail environments,
libraries, museums
System
•InteGrade LED engines and accessories
are designed and marketed together, as
we believe good system design is crucial to
e ective functioning of the system, and it
also facilitates an easy design-in
