LED and Systems
>

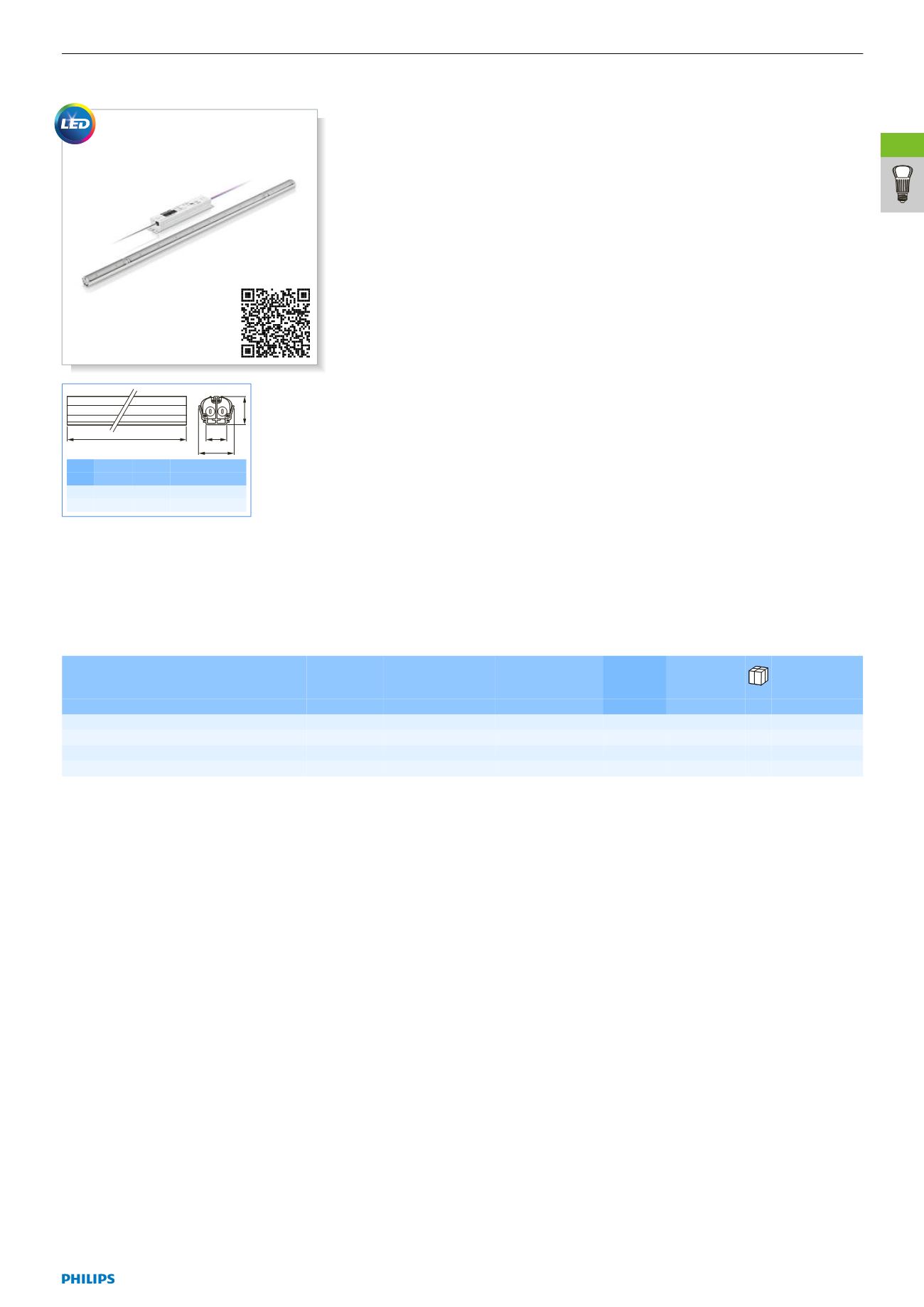

LED Display Lighting SystemsInteGrade LED fixtures NB
C
B2
B1
A
Dim.
A B1
B2
C
no.
max.
nom.
nom.
max.
1 1500
31
14
25
2 1500
22
14
25
The perfect fit
InteGrade LED fixtures NB enable easy
creation of narrow-beam lighting solutions
in chillers with doors. The narrow beam
in combination with the extremely small
dimensions makes this system suitable for
integration in doors and mullions where there
is no room to place a sizable lighting solution.
The unique optical system directs the light
precisely where you want it, thus making
optimum use of the light and energy. Our
LEDs have minimal output degradation and
color shift, so the light remains consistent
throughout their long lifetime. InteGrade LED
is an ideal solution for high-quality lighting
without flicker or color di erences.
The fixture consists of a profile with
LED engines and inline locks. Mounting
accessories, cables and LED power driver are
available separately.
Product benefits
•Smooth and uniform linear floodlighting in
display cases
•Aesthetic integration of LED lighting;
possible to mount on very small mullions
•Excellent Total Cost of Ownership with
attractive payback times
Product features
•Energy savings of up to 55% (102 W com-
pared to 224 W for a TL5 28/35 W system
in a 3.75 m cabinet)
•Dedicated Xitanium LED Outdoor drivers
for reliable operation
•The fixtures have standard dimensions and
so fit commonly used mullions and cabinets
•The InteGrade LED fixture CTR (Center)
distributes the light in two directions, ideal
for center mullions. The InteGrade LED
fixture SD (Side) distributes the light in one
direction (from the side of the cabinet)
Application
•Chillers with doors
•Vertical and horizontal linear floodlighting,
mounted on very small chiller door mullions,
and island freezers
•The narrow-beam light distribution is also
suitable for applications such as display
lighting in supermarkets, retail environments,
libraries and museums. Because the
dimensions of these applications are often
very diverse, you might consider using the
InteGrade LED engine NB system – with
which you can create di erent lengths – for
these applications
System
InteGrade LED fixtures NB and accessories
are designed and marketed together, as
we believe good system design is crucial to
e ective functioning of the system, and it also
facilitates an easy design-in
Type
Colour
Rendering
Index
Correlated Colour
Temperature
Life to 70% lumen
maintenance
Dim. no. Packing type/
Packing
configuration
Ordering
number
8718291...
(R
a
)
(K)
(h)
InteGrade FIX vis 1500mm(59") WWR NB CTR
50,000
1
1NO / 6 6
661986
00
InteGrade FIX vis 1500mm(59") WWR NB SD
50,000
2
1NO / 6 6
670919
00
InteGrade FIX vis 1500mm(59") 840 NB CTR
85
4,100
50,000
1
1NO / 6 6
670858
00
InteGrade FIX vis 1500mm(59") 840 NB SD
85
4,100
50,000
2
1NO / 6 6
670896
00
