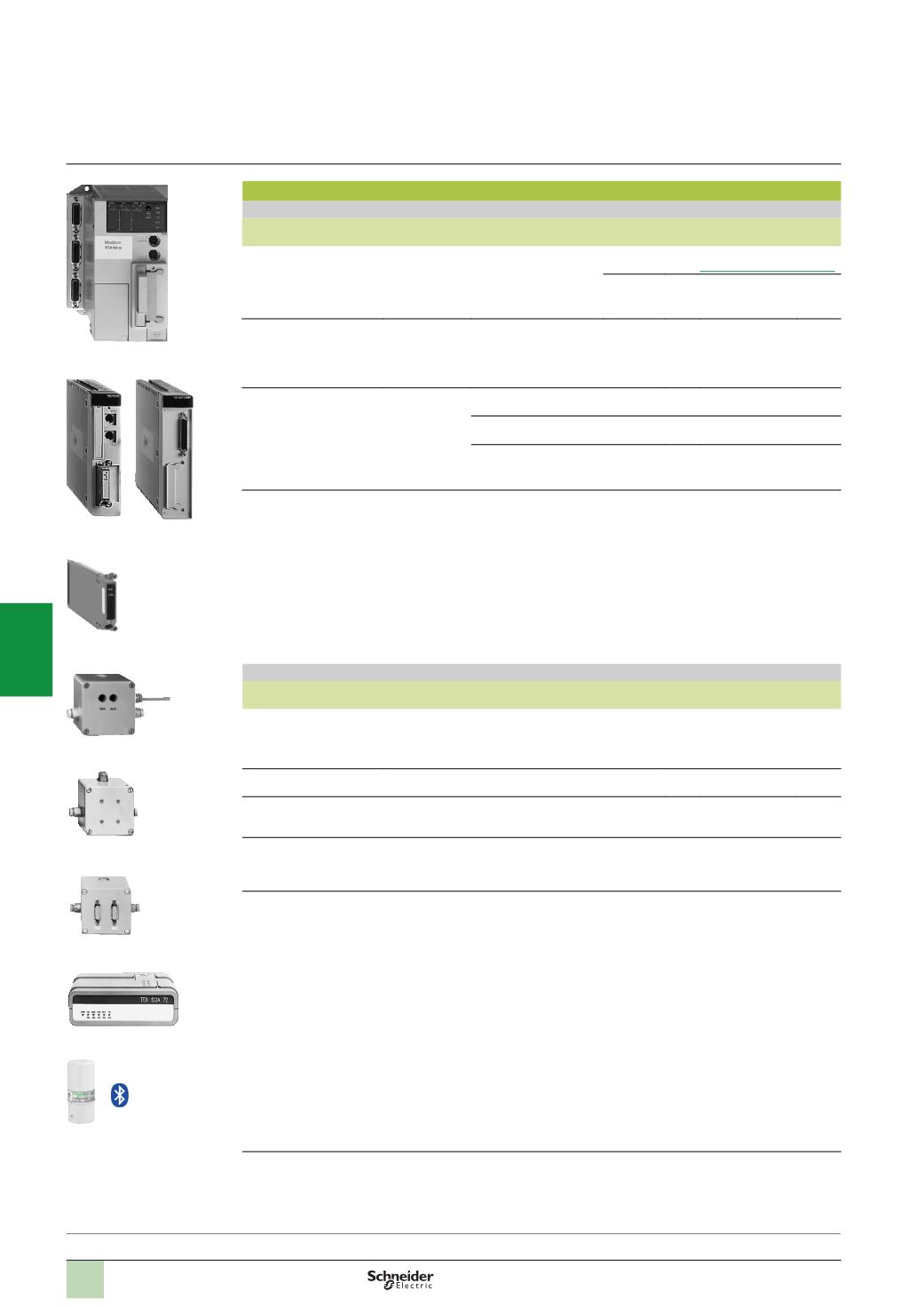

References
Components for connection to the Uni-Telway bus
Description
Protocol
Physical layer
PLC
Item
no.
Reference
Weight
kg
Integrated link on
processor
Uni-Telway
Character mode
RS 485 non-isolated
TSX Micro
–
Please consult our website
www.schneider-electric.comPremium
–
See pages 1/10 and 1/19
Communication module
Uni-Telway
Modbus/Jbus
Character mode
1
isolated 2-wire RS 485
integrated channel
(
channel 0), 1 PCMCIA
card slot (channel 1)
(1)
Premium
–
TSX SCY 21601
0.360
PCMCIA type III cards
for
Premium processor
TSX 37 21/22 PLC or
TSX SCY 21601 module
Uni-Telway
Modbus
Character mode
RS 232 (9 signals)
0.3…19.2
Kbps
7
TSX SCP 111
0.105
RS 485 (RS 422 compatible)
1.2…19.2
Kbps
7
TSX SCP 114
0.105
20
mACL 1.2…19.2 Kbps
7
TSX SCP 112
0.105
Set of X-Way drivers for
PC compatible
Includes all the X-Way drivers, for
composition, see page 6/41
1
CD-ROM
–
TSX CD DRV 20M
–
Uni-Telway bus connecting accessories
Description
Use
Item
no.
Reference
Weight
kg
Terminal port connection
box
Isolation of Uni-Telway signals for bus length > 10 m, line
terminator, bus cable tap links. Supplied with cable (1 m
length) equipped with a mini-DIN connector (TER or AUX
ports)
5
TSX P ACC 01
0.690
Passive T-junction box
Tap link and extension of bus cable, line terminator
2
TSX SCA 50
0.520
Passive subscriber socket
2-
channel
2-
channel tap link (15-way female SUB-D connector) and
extension of bus cable, address coding and line terminator
3
TSX SCA 62
0.570
Active adaptor box
RS 232/RS 485
Connection of an RS 232 device (which can use the
Uni-Telway protocol), adaptation and isolation of signals,
line terminator (no address coding)
–
TSX SCA 72
0.520
Universal Bluetooth
®
interface (UBI)
Provides Bluetooth
®
connectivity for products such as the
Modicon M340/Premium platforms and Altivar/Lexium
servo drives, via their serial port (RS 485).
Used for setting-up and maintenance of products.
Designed for permanent installation and can be safely
fitted on the inside or outside of electrical enclosures.
b
Protocols supported: Modbus and Uni-Telway
b
Powered via the product’s RS 485 serial port
b
Max. range in direct line of sight: 20 m
The kit comprises:
b
AUniversal Bluetooth
®
interface (UBI)
b
An RJ45/mini-DIN cable (length 1 m)
b
An RJ45/RJ45 cable (length 1 m)
b
A fixing clamp for installation inside the electrical
enclosure
b
ACD with configuration software and user manual
–
TCS WAAC 13FB
0.320
(1)
Type III PCMCIA slot for for one
TSX SCP 111/112/114
or
TSX FPP 20
card.
References
TSX Micro
TSX SCP 11
p
TSX SCA 62
TSX SCA 72
TSX SCA 50
TCS WAAC 13FB
TSX P ACC 01
Premium TSX SCY 21601
Modicon Premium automation
platform
0
Uni-Telway serial link
Presentation:
page 5/128
Description:
page 5/128
Connections:
page 5/129
