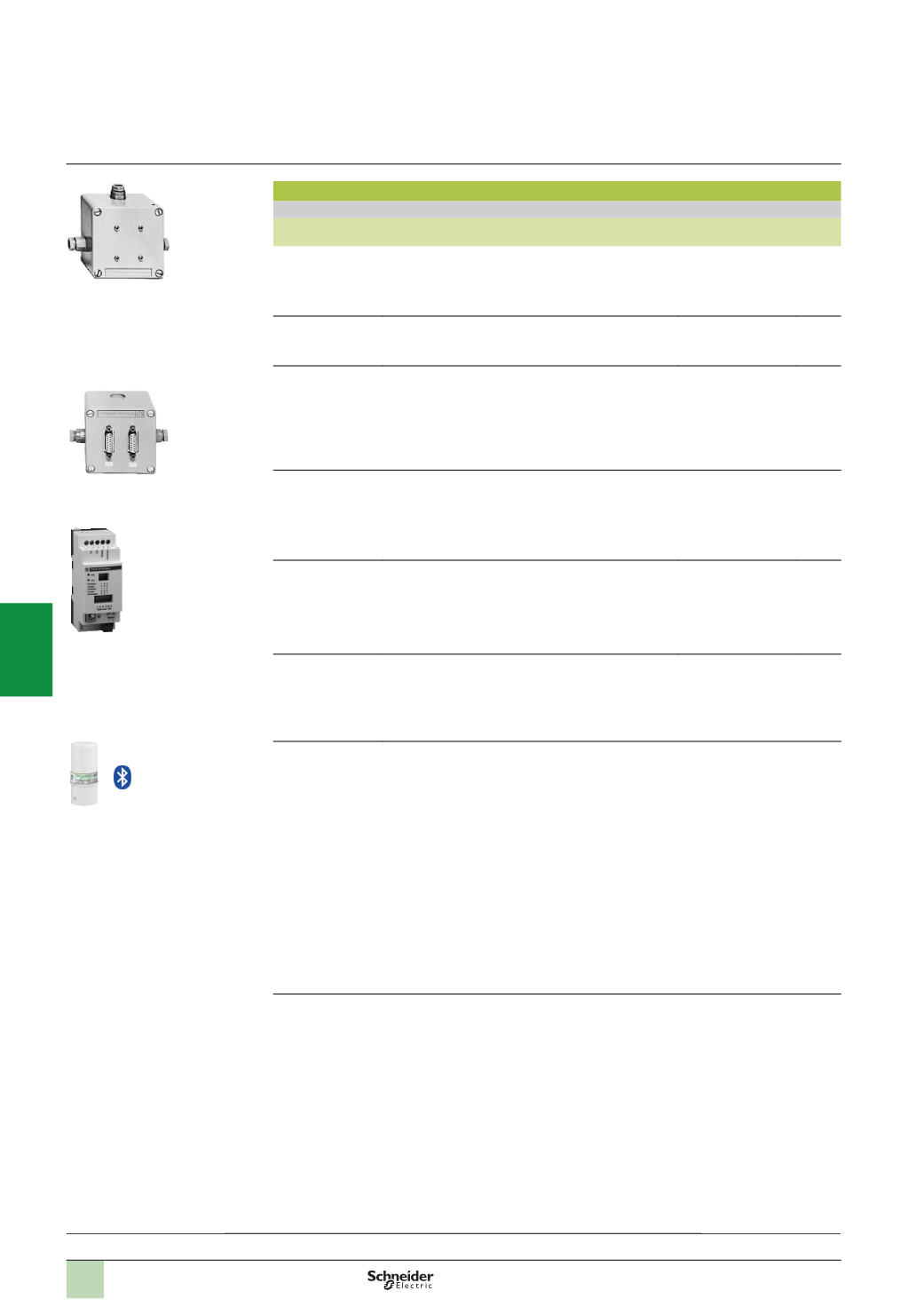

References
(
continued)
Modicon Premium automation
platform
Modbus serial link
References
(
continued)
Modbus serial link connection accessories
Description
Use
Reference
Weight
kg
Passive
junction box
Tap link and bus extension, line terminator
TSX SCA 50
0.520
2-
channel passive
subscriber socket
Tap link for 2 devices (2-wire)
Equipped with 2 x 15-way female SUB-D connectors
TSX SCA 62
0.570
RS 485 isolation box
RS 485 line isolation and line terminator (RC 120
, 1
nF)
(1)
2
tap links on RJ45 connector
24
V
c
supply (screw terminal block)
Mounting on 35 mm
5
rail
TWD XCA ISO
0.100
TER terminal port
connection box
Bus tap link cable (2 or 4-wire)
Isolation of Modbus signals
Line terminator
Supplied with cable (length 1 m) equipped with a mini-DIN
connector (TER port)
TSX PACC 01
0.690
Active adaptor box
RS 232/RS 485
Connection of an RS 232 device as RS 485
Isolation of signals and line termination
TSX SCA 72
0.520
Line terminators
Sold in lots of 2
2/4-
wire cabling
Can be connected to the front panel of the TSX SCA 64
subscriber socket
TSX SCA 10
0.030
Universal Bluetooth
®
interface (UBI)
Provides Bluetooth
®
connectivity for products such as
the Modicon M340/Premium platforms and Altivar/Lexium
servo drives, via their serial port (RS 485).
Used for setting-up and maintenance of products.
Designed for permanent installation and can be safely fitted
on the inside or outside of electrical enclosures.
b
Protocols supported: Modbus and Uni-Telway
b
Powered via the product’s RS 485 serial port
b
Max. range in direct line of sight: 20 m
The kit comprises:
b
AUniversal Bluetooth
®
interface (UBI)
b
An RJ45/mini-DIN cable (length 1 m)
b
An RJ45/RJ45 cable (length 1 m)
b
A fixing clamp for installation inside the electrical enclosure
b
ACD with configuration software and user manual
TCS WAAC 13FB
0.320
(1)
Line isolation recommended for distances > 10 m.
TSX SCA 50
TWD XCA ISO
TCS WAAC 13FB
TSX SCA 62
Description:
page 5/124
