Schneider Electric Modicon Premium Automation Platform, May 2012

259 / 413

5/125

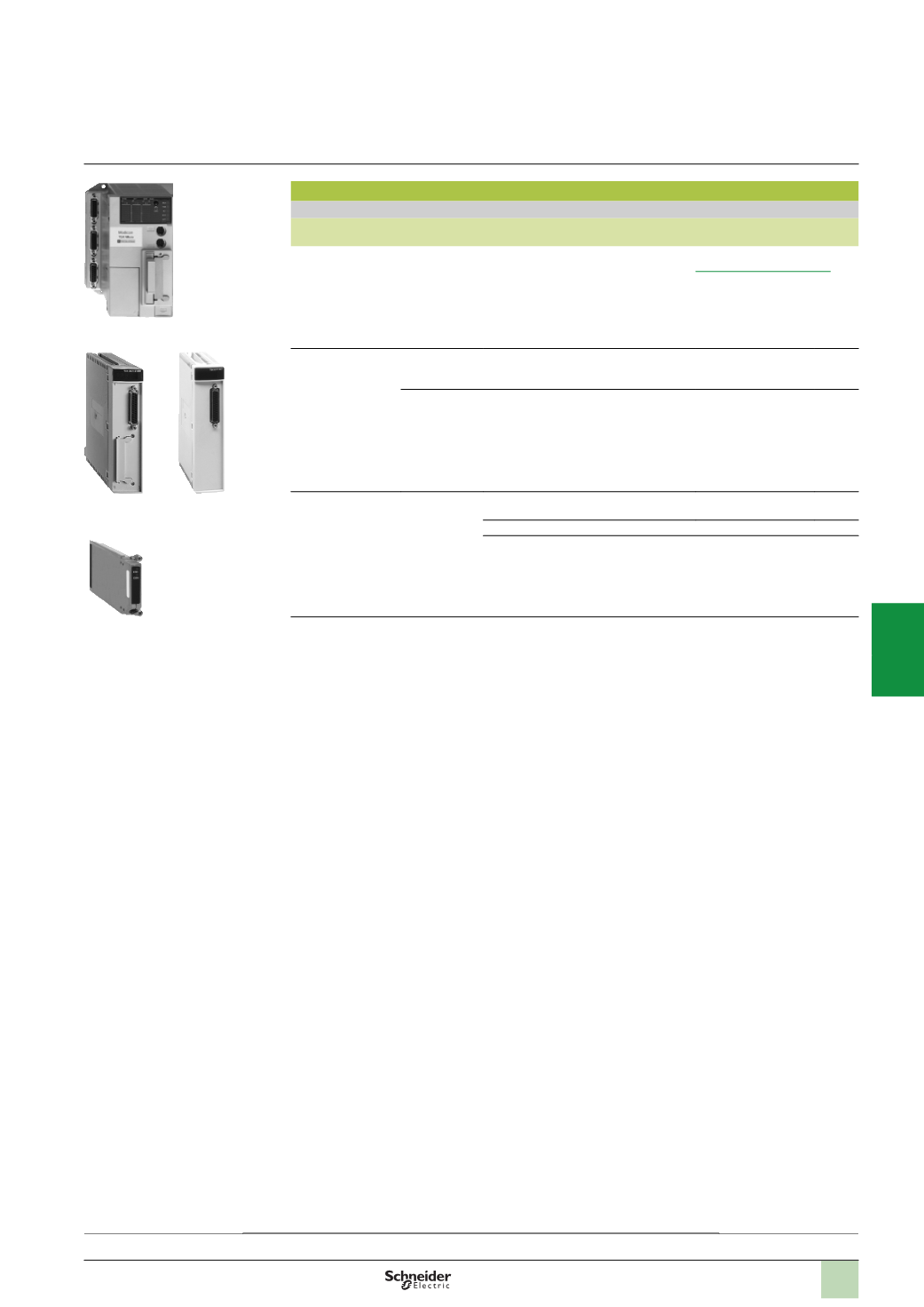

References
Modbus connection components
Description Protocol Physical layer Reference Weight
kg
TSX Micro PLC
integrated link
(TER port)
Modbus (RTU)
Uni-Telway
character mode
Non-isolated RS 485 Please consult our website
Communication
module
for Premium
Modbus
Character mode
Uni-Telway
- 1 RS 485 isolated integrated channel
(channel 0), (1…97 slaves)
- 1 PCMCIA card slot (channel 1) (1)
TSX SCY 21601 0.360
Modbus 1 RS 485 isolated integrated channel
(channel 0), 1.2...19.2 Kbps (1…247
slaves)
TSX SCY 11601 0.340
PCMCIA
cards for Premium
processor,
TSX 37 21/22 PLC or
TSX SCY 21601
module
Modbus
Character mode
Uni-Telway
RS 485 (RS 422 compatible)
1.2…19.2 Kbps
TSX SCP 114 0.105
RS 232 (9 signals) 0.6…19.2 Kbps TSX SCP 111 0.105
20 mACL 1.2…19.2 Kbps TSX SCP 112 0.105
(1) PCMCIA slot designed to take a TSX SCP 111/112/114 or TSX FPP 20 Fipway card . TSX SCP 11p
Modicon Premium automation
platform
Modbus serial link
References
Description:
page 5/124
TSX SCY 11601 TSX SCY 21601
