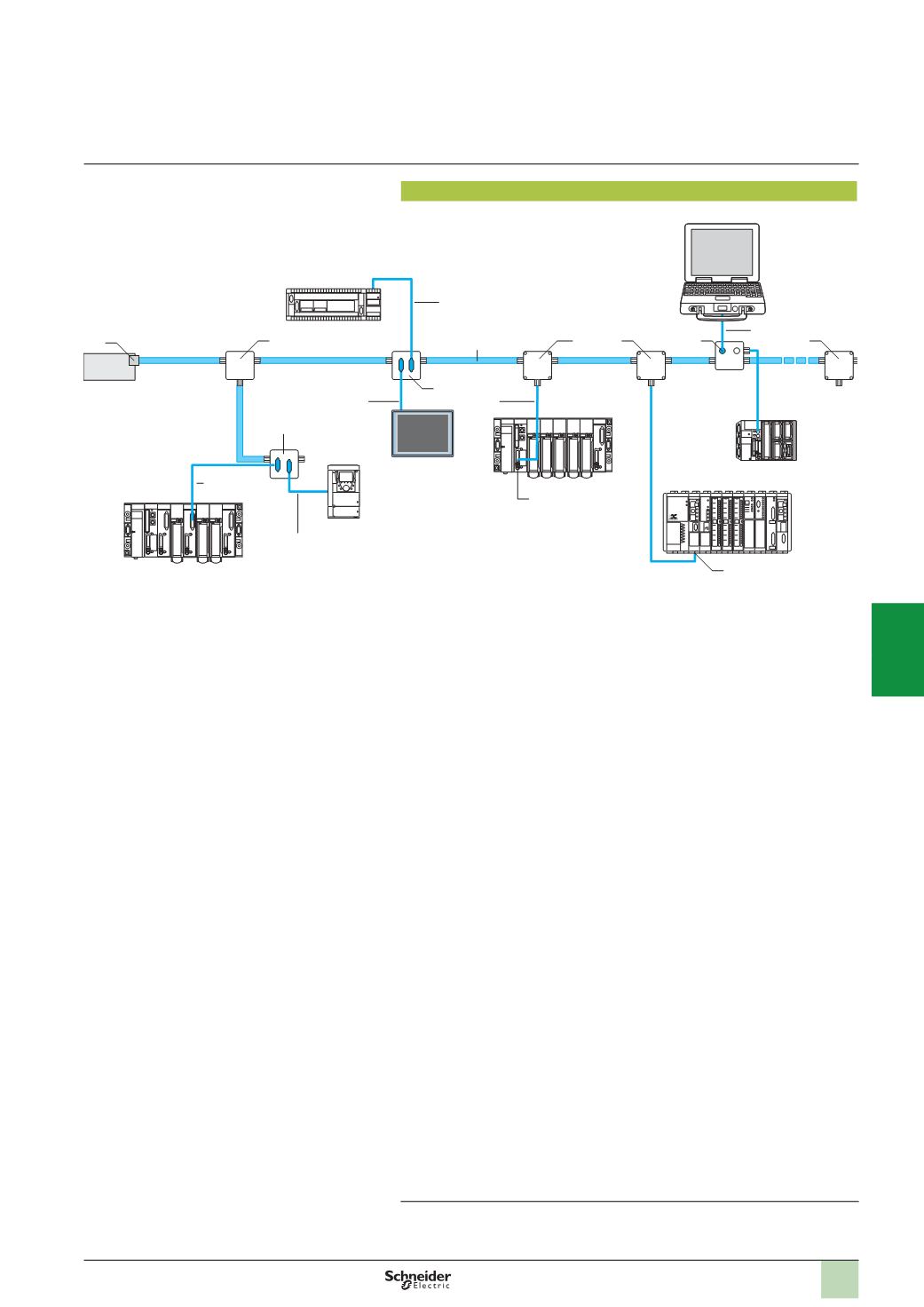

Uni-Telway bus wiring system
1
TSX CSA
ppp
:
bus cable, double shielded twisted pair. The shielding must be
connected to the earth of each device.
2
TSX SCA 50
:
passive T-junction box, matches the impedance when it is installed
at the end of the line.
3
TSX SCA 62
:
passive 2-channel Uni-Telway subscriber socket, is used for coding
the address of two connected devices, and matching the impedance when it is
installed at the end of the line.
4
TSX SCA 60/61
:
passive terminal block, used for intermediate devices that have
a 15-way female SUB D connector:
-
TSX SCA 60
used for intermediate devices
-
TSX SCA 61
used for end devices
5
TSX PACC 01
:
connection box, used for connecting a Modicon TSX Micro/
Premium PLC to the Uni-Telway bus via the PLC terminal port. The connecting
cable (length 1 m) is integrated in the connection box. It isolates the signals (for
distances > 10 m) and is used to match the end of line impedance. It is also used
to set the operation of the terminal port (Uni-Telway Master/Slave or character
mode).
6
TSX LES 64/74
:
junction boxes for extensions to the Uni-Telway bus, used to
connect TSX model 40 PLC processors that have an integral Uni-Telway port as
standard. They are used for coding the address of the connected device.
7
TSX SCP 114:
PCMCIA card for connecting TSX Micro
(1)
/
Premium PLCs to the
Uni-Telway bus.
8
TSX SCP CU4030
:
Uni-Telway connecting cable between the
TSX SCP 114
PCMCIA card (on TSX P57
p
0
M processor or TSX SCY 21601 module) and the
TSX SCA 50
junction box
9
TSX SCY CU 6530
:
Uni-Telway connecting cable between the
TSX SCY 21601
module integrated channel and the
TSX SCA 62
subscriber socket.
10
VW3 A8 306
:
connecting cordset (length 3 m) between the Magelis XBT G/GT
Advanced Panel terminal and the
TSX SCA 62
subscriber socket.
11
TSX PCX 1031
:
universal connecting cable between a PC compatible (COM port,
9-
way SUB D connector) and the TER or AUX port for TSX Micro/Premium PLCs
or the
TSX PACC 01
connection box (8-way mini-DIN connector).
TSX CUSB 485
+
TSX CRJDB 25
:
USB to RS 485 converter and Uni-Telway
cordset between a PC compatible (USB port) and the
TSX SCA 62
subscriber
socket.
12
TSX CSC 015:
connecting cordset between the TSX 17 micro-PLC (via a
TSX 17 ACC 5 adaptor or a TSX SCG 1161 module) and the
TSX SCA 62
subscriber socket.
13
VW3 A8 306 2:
Uni-Telway and Modbus connecting cordset for Altivar 61/71
variable speed drive (with
VW3 A3 303
option card).
(1)
With TSX 37 21/22 PLCs
Connections
4
10
2
2 2
TER
6
7
2
11
9
3
1
3
8
5
12
13
AUX
TSX 17 20
Line terminator
Modicon
TSXMicro
(
TER terminal
port)
Altivar 71
Device
Modicon Premium + TSX SCY 21601
Magelis XBT G
p
Modicon
Premium
+ TSX SCP 114
TSX
model 40
Modicon Premium automation
platform
0
Uni-Telway serial link
2
1
3
4
5
6
7
8
9
10
