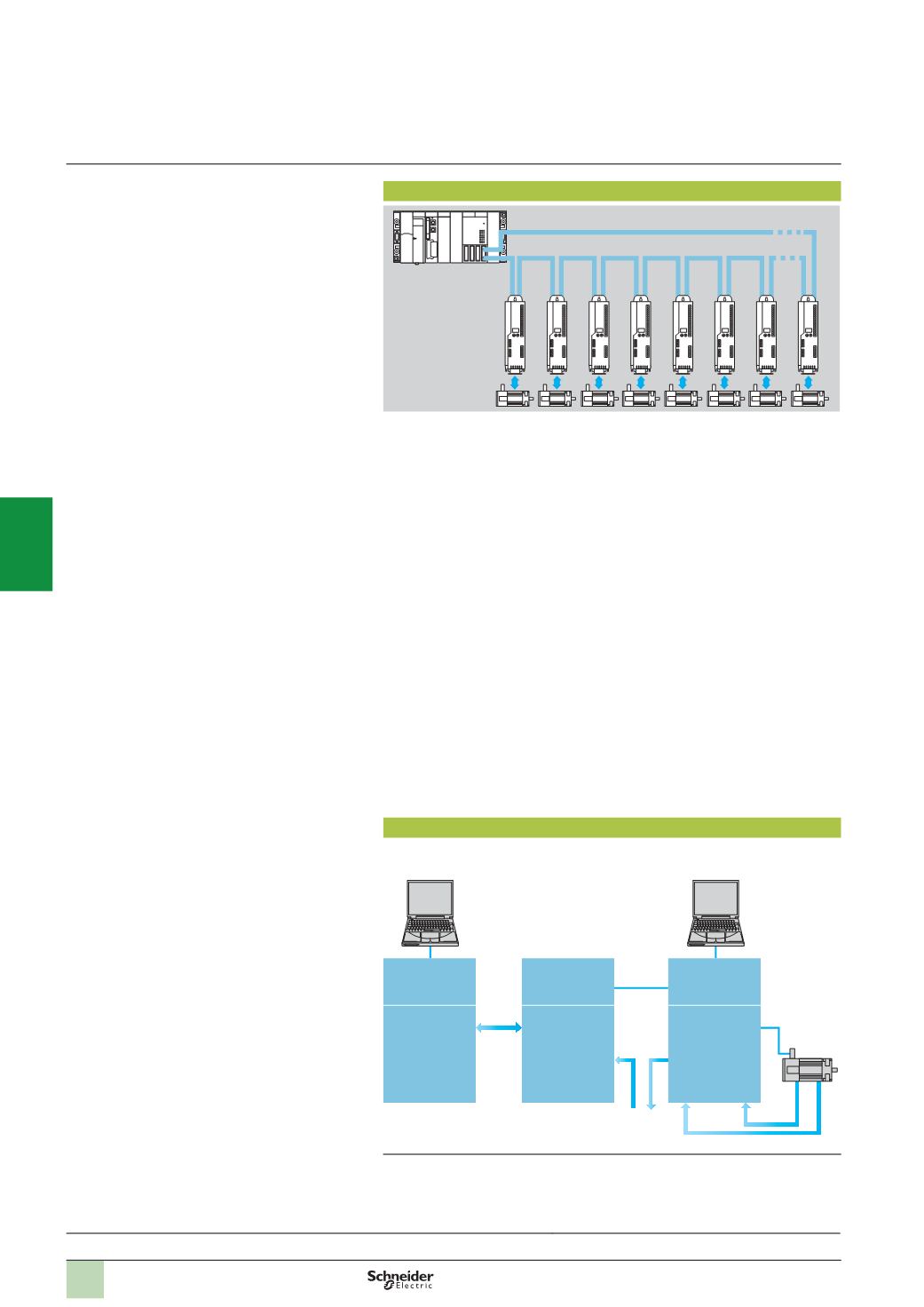

Presentation
Fibre optic cables
SERCOS ring network
Premium PLC +
TSX CSY84/85/164
module
Lexium servo drives
(1)
+ SERCOS option
BDH/BSH
servo motors
SERCOS (SERiaI COmmunication System) is a communication standard which
defines the digital link (medium and exchange protocol) between the motion control
module and servo drives. This standard is defined in European standard
IEC/EN 61491.
Using the SERCOS distributed architecture enables the application I/O (position
encoder, emergency stop, etc.) to be connected directly to the servo drives, thus
reducing connection costs. The fibre optic digital link permits high speed exchanges
(2
or 4 Mbps) while ensuring total immunity in industrial environments subject to
interference.
The SERCOS range for the Premium automation platform consists of:
b
TSX CSY 84/85/164
(2)
axis control modules that can control up to 8 servo drives
(
TSX CSY 84/85) and 16 servo drives (TSX CSY 164), via a SERCOS ring bus. The
module calculates the path and the interpolation for several axes (position mode).
The other modes (speed and torque) can be accessed using Schneider Electric
application services.
b
1.5
A to 70 A permanent Lexium servo drives
(1)
(
with the SERCOS option).
The servo drives manage the position, speed and torque loops and ensure power
conversion to control the servo motor. The sensor feedback is sent to the servo drive
(
current position, current speed).
b
BDH and BSH servo motors. These have permanent magnets delivering a high
power-to-weight ratio and excellent dynamic speed response in a compact unit.
The Lexium range
(1)
offers all the necessary options (line chokes, braking resistors,
etc.) as well as all connection components.
Block diagram
The block diagram presents the various functions performed by the different
components which make up the multi-axis control system.
Unity Pro, PL7
Junior/Pro
UniLink
Premium
PLC
Application
program
SERCOS module
TSX CSY 84/85/164
Linear or infinite
independent axes
2
to 8 axis linear
interpolation
Follower axes
(6
slaves) by ratio or
profiled cams
Lexium
servo drive
(1)
(
with
SERCOS option)
Interpretation of
commands
Position loop
Speed loop
Current loop
Power conversion
Bus X
BDH/BSH
servo
motors
Position
SERCOS
ring bus
(
to Lexium servo drive network
(1)
)
Speed
(1)
Please consult our Customer Care Centre.
(2)
The
TSX CSY 85
module also supports the path functions with the TjE path editor software.
Presentation
Description:
page 4/41
Functions:
pages 4/42 ...
References:
page 4/45
Modicon Premium automation
platform
SERCOS TSX CSY 84/85/164
motion control modules
