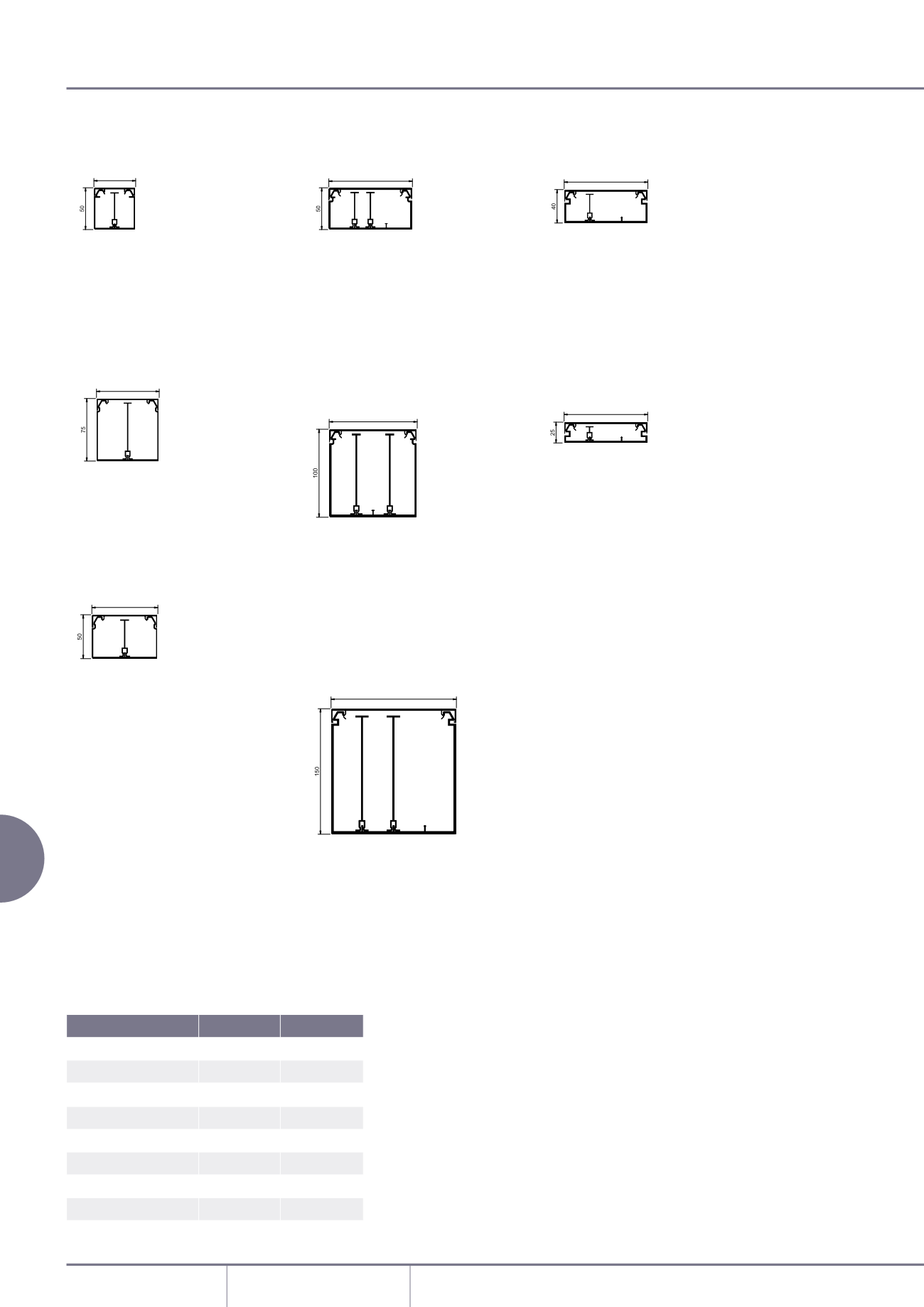

PVC–U domestic and general trunking
Maxi MTRS50
Total = 1979mm
2
total area
Total = 890mm
2
45% space factor
1 & 2 = 911mm
2
total area
1 & 2 = 410mm
2
45% space factor
Maxi MTRS75
Total = 4709mm
2
total area
Total = 2119mm
2
45% space factor
1 & 2 = 2196mm
2
total area
1 & 2 = 988mm
2
45% space factor
Maxi MTRS75/50
Total = 3032mm
2
total area
Total = 1365mm
2
45% space factor
1 & 2 = 1347mm
2
total area
1 & 2 = 606mm
2
45% space factor
Maxi MTRS100/50
Total = 4040mm
2
total area
Total = 1818mm
2
45% space factor
1 = 1056mm
2
total area
1 = 475mm
2
45% space factor
2 = 660mm
2
total area
2 = 297mm
2
45% space factor
3 = 1829mm
2
total area
3 = 823mm
2
45% space factor
Maxi MTRS100
Total = 8733mm
2
total area
Total = 3930mm
2
45% space factor
1 = 2375mm
2
total area
1 = 1069mm
2
45% space factor
2 = 1464mm
2
total area
2 = 659mm
2
45% space
3 = 4075mm
2
total area
3 = 1834mm
2
45% space factor
Maxi MTRS150
Total = 20193mm
2
total area
Total = 9087mm
2
45% space factor
1 = 4406mm
2
total area
1 = 1983mm
2
45% space factor
2 = 4728mm
2
total area
2 = 2128mm
2
45% space factor
3 = 9482mm
2
total area
3 = 4267mm
2
45% space factor
Sceptre DTR1
Total = 3168mm
2
total area
Total = 1426mm
2
45% space factor
1 = 816mm
2
total area
1 = 367mm
2
45% space factor
2 = 2002mm
2
total area
2 = 901mm
2
45% space factor
Sceptre DTR2
Total = 1731mm
2
total area
Total = 779mm
2
45% space factor
1 = 435mm
2
total area
1 = 196mm
2
45% space factor
2 = 1197mm
2
total area
2 = 538mm
2
45% space factor
To determine cable capacity, select
the size of the cable required and its
corresponding cable factor from the
table. Divide the compartment area
figure (with or without 45% space
factor) with the cable factor figure to
achieve cable capacity.
Note:
When 30mm deep accessory
boxes are installed in MTRS100,
MTRS100/50 and DTR1, reduce the
area by 2600²mm.
Maxi and Sceptre trunking
.MarshallLtd.
Conductor type
Size
Cable factor
Stranded PVC power
1.5mm²
8.0
Stranded PVC power
2.5mm²
11.9
Stranded PVC power
4.0mm²
16.6
*Data cable
Ø5.5mm 23.8
*Data cable
Ø6.0mm 28.3
*Data cable
Ø6.5mm 33.2
*Data cable
Ø7.0mm 38.5
*Data cable
Ø8.4mm 55.4
For Data cable information, please see page 246
