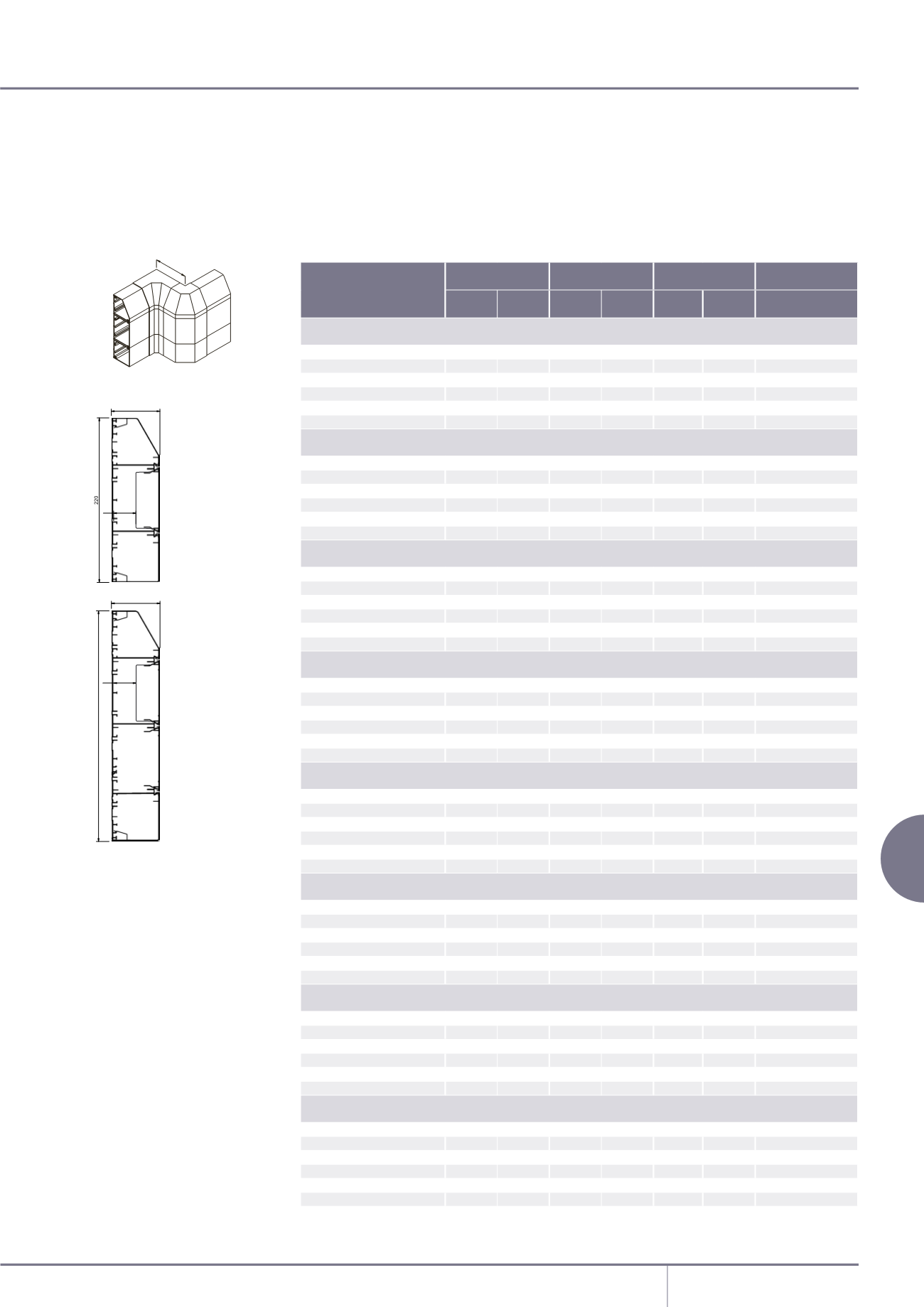

TECHNICAL INFORMATION
Technical information












Offset dimensions
The minimum set that can be
accommodated in the same plane
(from internal to external bend), is
shown below.
Cable capacity chart
Compartment 1 Compartment 2 Compartment 3 Compartment 4
No box With box No box With box No box With box No box
PVC power cable 1.5mm² stranded copper
XL 301 151 – 261 63 156 - -
XL 302 151 – 261 63 196 - -
XL 303 191 – 261 63 196 - -
XL 311 151 – 261 131 257 127 156
XL 312 151 – 261 131 257 127 196
XL 313 191 – 261 131 257 127 196
PVC power cable 2.5mm² stranded copper
XL 301 101 – 175 42 105 - -
XL 302 101 – 175 42 132 - -
XL 303 128 – 175 42 132 - -
XL 311 101 – 175 88 173 85 105
XL 312 101 – 175 88 173 85 132
XL 313 128 – 175 88 173 85 132
PVC power cable 4.0mm² stranded copper
XL 301 73 – 126 30 75 - -
XL 302 73 – 126 30 95 - -
XL 303 92 – 126 30 95 - -
XL 331 73 – 126 63 124 61 75
XL 312 73 – 126 63 124 61 95
XL 313 92 – 126 63 124 61 95
Data cable: Ø5.5mm
XL 301 51 – 88 21 53 - -
XL 302 51 – 88 21 66 - -
XL 303 64 – 88 21 66 - -
XL 311 51 – 88 44 86 43 53
XL 312 51 – 88 44 86 43 66
XL 313 64 – 88 44 86 43 66
Data cable: Ø6.0mm
XL 301 43 – 74 18 44 - -
XL 302 43 – 74 18 55 - -
XL 303 54 – 74 18 55 - -
XL 331 43 – 74 37 73 36 44
XL 312 43 – 74 37 73 36 55
XL 313 54 – 74 37 73 36 55
Data cable: Ø6.5mm
XL 301 37 – 65 16 39 - -
XL 302 37 – 65 16 49 - -
XL 303 47 – 65 16 49 - -
XL 311 37 – 65 32 64 32 39
XL 312 37 – 65 32 64 32 49
XL 313 47 – 65 32 64 32 49
Data cable: Ø7.0mm
XL 301 31 – 54 13 32 - -
XL 302 31 – 54 13 41 - -
XL 303 40 – 54 13 41 - -
XL 311 31 – 54 27 53 26 32
XL 312 31 – 54 27 53 26 41
XL 313 40 – 54 27 53 26 41
Data cable: Ø8.4mm
XL 301 22 – 38 9 23 - -
XL 302 22 – 38 9 28 - -
XL 303 28 – 38 9 28 - -
XL 311 22 – 38 19 37 18 23
XL 312 22 – 38 19 37 18 28
XL 313 28 – 38 19 37 18 28
MIN
115 MM
STERLING XL
XL trunking aluminium –
continued
Cable capacities
• All calculations allow for a 45% space
factor.
As there can be differences between data
cable sizes, Marshall-Tufflex recommend
that cable dimensions are confirmedwith
themanufacturing company.
Dimensions
XL 302
XL 312
XL 302 – no box
1 = 2680mm2 total area
1 = 1206mm2 45% space factor
2 = 4639mm2 total area
2 = 2087mm2 45% space factor
3 = 3490mm2 total area
3 = 1570mm2 45% space factor
XL 302 – with box
2 = 1123mm2 total area
2 = 505mm2 45% space factor
XL 312 – no box
1 = 2680mm2 total area
1 = 1206mm2 45% space factor
2 = 4639mm2 total area
2 = 2087mm2 45% space factor
3 = 4570mm2 total area
3 = 2056mm2 45% space factor
4 = 3490mm2 total area
4 = 1570mm2 45% space factor
XL 312 – with box
2 = 2323mm2 total area
2 = 1045mm2 45% space factor
3 = 2254mm2 total area
3 = 1014mm2 45% space factor
Aluminium trunking systems | 297
