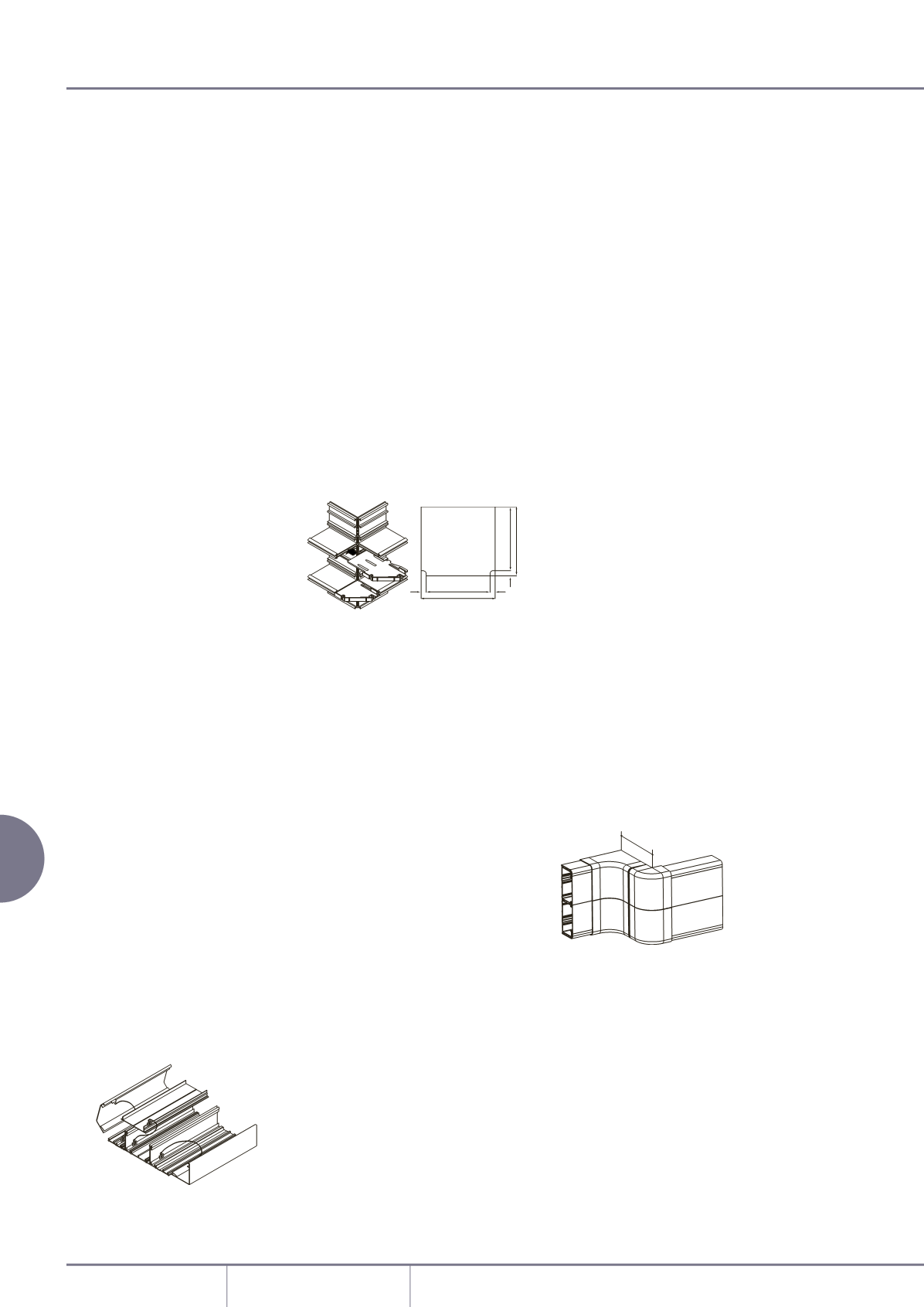

Aluminium trunking systems

Material

Aluminium trunking is manufactured

from high precision extruded

aluminium with a powder coat finish.

White RAL 9016

Silver Grey RAL 9006

Accessory boxes are supplied in PVC-U

or polycarbonate both of which are

100% recyclable.

Installation

Positioning

Suitable for dado and skirting

installation. When used as a skirting

system, sufficient clearance should be

allowed between the floor covering

and the profile fittings that clip over

the cover i.e. 5mm + floor covering is

recommended.

Fitting

• Secure trunking base every 750mm.

• Secure using No 8 round head screws

and washers using the grooves in the

outer compartments of the base to

facilitate drilling Ø6mm holes.

• Avoid over-tightening to permit

thermal movement.

• The use of plastic caps over screw

heads is recommended to protect

installed cables.

• To cut the trunking, use a fine tooth

blade (32/36tpi) or, preferably,a

circular saw with a 350mm fine

tungsten blade (90/108tpi). This will

produce an edge requiring minimal

de-burring.

• Consecutive lengths of base are

aligned and butt jointed together.

Earthing

• Clean protective coating from base,

covers and metallic fittings and then

earth bond.

• Incoming earth connection is made

using LTB1 bonding assembly

installed in the earth channel of the

base.

• Bonding base to base: in final ring or

radial 32Amp circuits, bonding strap

LBS1 can be used.

• Bonding covers and end caps to

base: use bonding strap LBS2.

Single lengths

Where it is required to fit a single

length of trunking (under 3 metres)

between two inside walls and no

accessory box is fitted, it is advisable to

install a coupler in the centre of the run

to facilitate the removal of the cover.

Joints and bends

• Moulded from colour-matching

polycarbonate. External bends: base

should be cut square at the corner

and the internal segregator inserted

into the web of each base.

• Internal bends: base must be mitred

45° to ensure total enclosure of

trunking, including any internal fitted

segregator.

• External moulded fittings overlap

the joints by up to 10mm to cover

cutting inaccuracies.

Bend radius control

The bend radius control fittings for

Twin Plus provide a bend radius of

50mm

Accessory boxes

• If the accessory box is to be mounted

in the alternative compartment to the

supply, drill the main web adjacent to

the box position.

• Remove the appropriate knock out

and clip the box into the trunking

base.

• For boxes in the same compartment

as the supply, remove the

appropriate box knock-outs and clip

the box into trunking base.

• When boxes are installed

consecutively, a 14mm wide spacer

(ES1) is required to cover the space

between the boxes.

• Part M box assemblies with

contrasting coloured faceplates are

available to meet the requirements

of DDA regulations for Visual

Impairment.

Covers

The covers have been designed to

remain in position irrespective of

impact during normal conditions,

minor undulations of the mounting

surface, and to limit unauthorised

removal.

Covers – fitting

Covers are clipped into place from the

front. If accessory boxes are installed,

the covers are butt-joined to the edge

of the box. For the fitting of couplers to

conceal the cover joint, a gap of 25mm

is left between the two cover ends.

Covers – removal

To remove a cover, first detach a

coupler, internal or external bend

component to gain access. Both covers

can then be gently eased off the base.

Screening

Aluminium containment will protect

all internal circuits from external

electromagnetic interference. For

internal segregation and screening, use

a screened dividing fillet.

Method of continuation through

a partition wall

Continue the main lateral run of base

through the partition wall with short

lengths of cover fitted where the

trunking passes through the partition.

The partition wall trunking is then

butted up to the main run and the joint

covered by an Internal bend.

Offset dimensions

The minimum set that can be

accommodated in the same plane

(from internal to external bend), is

shown below.

169mm

Twin Plus aluminium

210

210

244

227

17

17
