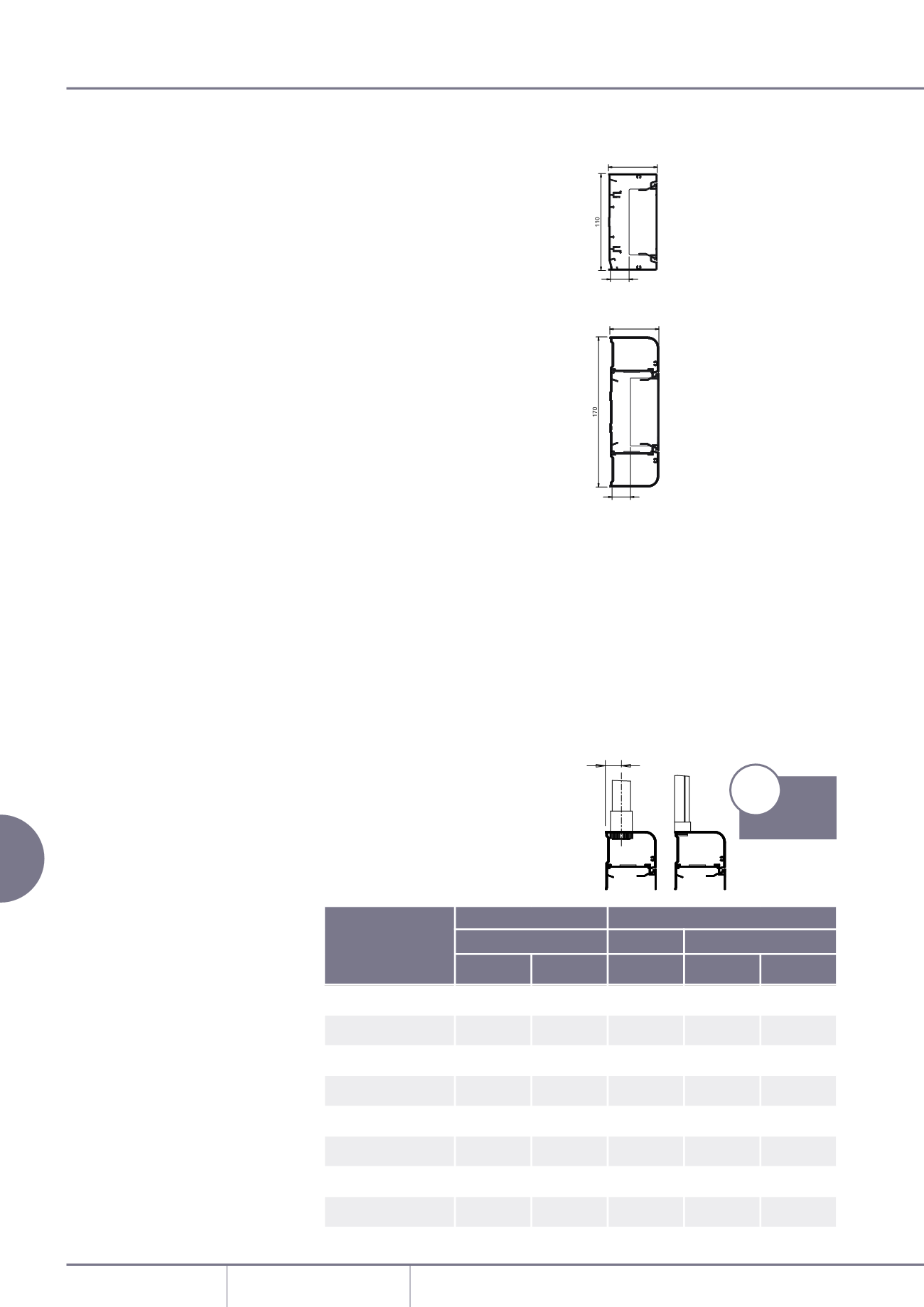

Aluminium trunking systems

Dimensions

Elegance 110

1 = 5254mm

2

total area

1 = 2364mm

2

45%

space factor

With box in comp 1

1 = 2987mm

2

total area

1 = 1344mm

2

45%

space factor

Elegance 170

A = 1764mm² total area

A = 794mm² 45% space

factor

Without Accessory

B = 4508mm² total area

B = 2029mm² 45% space

factor

With Accessory

B – 1748mm² total area

B = 787mm² 45% space

factor

Cable capacities

• All calculations allow for a 45% space

factor.

As there can be differences between data

cable sizes, Marshall-Tufflex recommend that

cable dimensions are confirmed with the

manufacturing company.

Fixing to Conduit and Mini Trunking

Elegance 170 can be used in conjunction

with Conduit and Mini trunking systems as

detailed in the diagrams below:

Elegance Aluminium

Accessory boxes

• Remove appropriate knockout and clip

box into trunking base.

• For boxes in same compartment as

supply, remove appropriate knockout and

clip box into trunking base.

• When boxes are installed consecutively, a

14mm wide length of cover is required to

cover the space between the boxes.

• Part M box assemblies with contrasting

coloured faceplates are available to meet

the requirements of DDA regulations for

Visual Impairment.

Covers

Covers are designed to limit unauthorised

removal and to remain in position during

normal conditions irrespective of impact

and minor undulations of the mounting

surface.

Covers – fitting

Covers are clipped into place from front.

If accessory boxes are installed, the LTL1/

LP1010 cover is butt-joined to the edge of

the box (ESSB1/2 only). Cut edges of the

cover are concealed by the accessory.

Covers – removal

To remove a cover, first detach an accessory

to gain access. The main cover can then be

gently eased off the base.

Screening

Aluminium containment will protect

all internal circuits from external

electromagnetic interference. For internal

segregation metallic dividing fillets are

available.

Offset dimensions

The minimum set that can be

accommodated in the same plane (from

internal to external bend), is 145mm.

Material

Aluminium trunking is manufactured from

high precision extruded aluminium with a

powder coat finish.

White RAL 9016

Silver Grey RAL 9006

Accessory boxes are supplied in PVC-U or

polycarbonate both of which are 100%

recyclable.

Installation

Positioning

Elegance can be installed at dado level or as

a bench-mounted installation.

Fitting

• Secure trunking base every 750mm.

• Secure using No.8 round head

screws and washers using the grooves

in the outer (110) or inner (170)

compartments of the base to facilitate

drilling Ø6mm holes.

• Avoid over-tightening to permit thermal

movement.

• The use of plastic caps over screw heads is

recommended to protect installed cables.

• To cut the trunking, use a fine tooth blade

(32/36tpi) or, preferably, a circular saw with

a 350mm diameter fine tungsten blade

(90/108tpi). This will produce an edge

requiring minimal de-burring.

• Consecutive lengths of base are aligned

and butt jointed together.

Earthing

• Base, covers and metallic fittings to be

cleaned of protective powder coatings for

earth bonding.

• Elegance 110: Incoming earth connection

is made using LBT1 bonding assembly

installed in the earth channel of the base.

• Elegance 170: Incoming earth connection

is made using LBT3 bonding kit, with edge

clip attached to the earth rib in the base and

faston connector crimped to incoming earth

cable.

• Bonding base to base: in final ring or radial

32Amp circuits, bonding strap LBS1 can

be used.

• Bonding end caps to base: use bonding

strap LBS5.

• Bonding base to cover, use LBS2.

Joints and bends

• Straight lengths should be butt jointed

together with the aid of LDP1 coupler pin

if required.

• Internal bends, external bends, flat angles

and tees are prefabricated in aluminium

and butt jointed together so cutting of

base and covers has to be very accurate to

produce a good finish.

C. & C. Marshall Ltd.



17.5

Cable capacity chart

Total cables = Volume/

cable factor

Elegance 110

Elegance 170

Compartment 1

Compartment 1

Compartment 2

No box

With box

No box

With box

PVC power cable 1.5mmv

stranded copper

296

168

99

254

98

PVC power cable 2.5mm

2

stranded copper

199

113

67

170

66

PVC power cable 4.0mm

2

stranded copper

142

81

48

122

47

Data cable: Ø5.5mm

99

56

33

85

33

Data cable: Ø6.0mm

84

47

28

72

28

Data cable: Ø6.5mm

73

42

25

63

24

Data cable: Ø7.0mm

61

35

21

53

20

Data cable: Ø8.4mm

43

24

14

37

14
