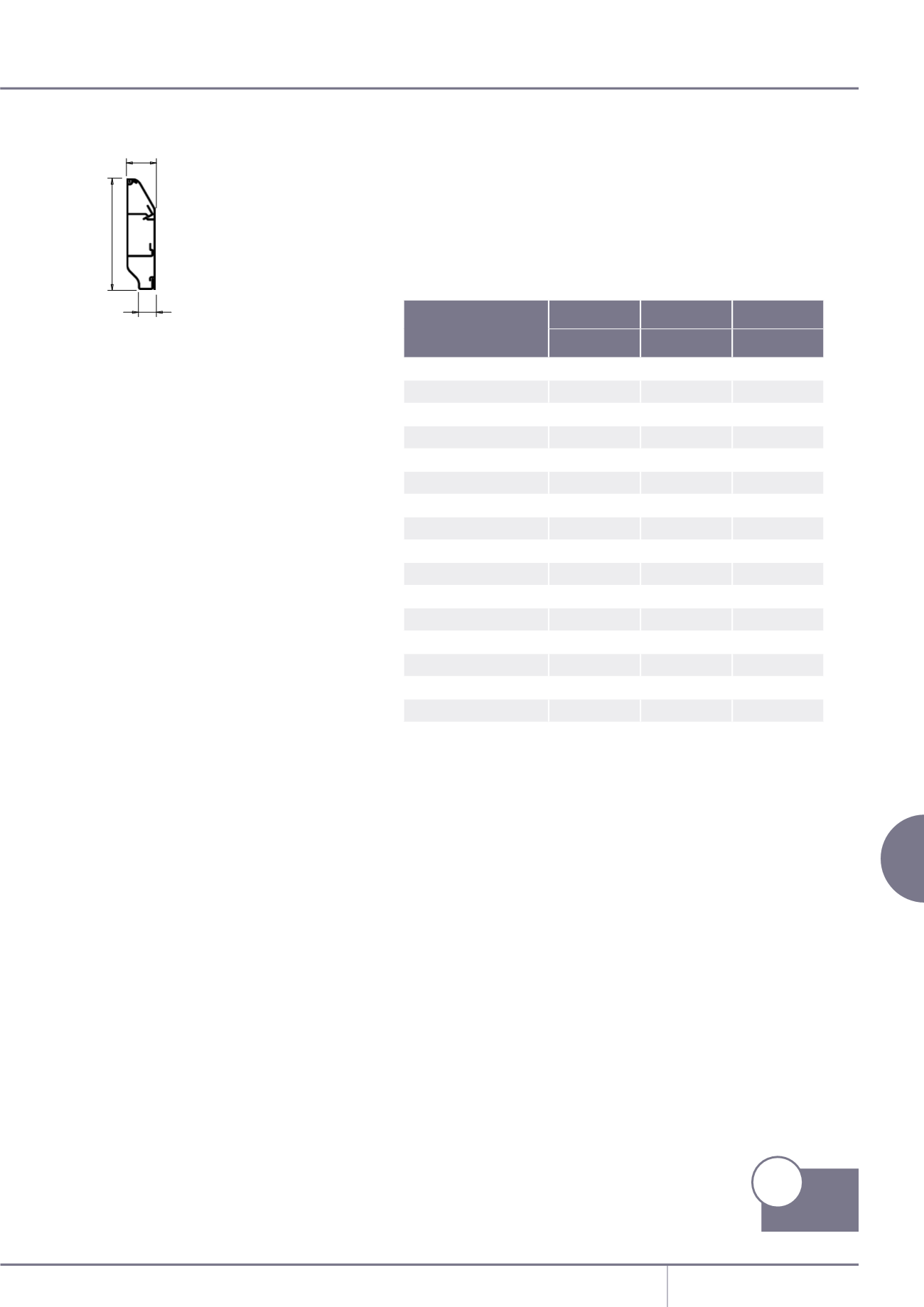

PVC–U domestic and general trunking
| 307
Cable capacity chart
Compartment 1 Compartment 2 Compartment 3
No box
No box
No box
PVC power cable 1.5mm
2
stranded copper
Sovereign Plus skirting
13
23
15
PVC power cable 2.5mm
2
stranded copper
Sovereign Plus skirting
9
16
10
PVC power cable 4.0mm
2
stranded copper
Sovereign Plus skirting
6
11
7
Data cable: Ø5.5mm
Sovereign Plus skirting
5
8
5
Data cable: Ø6.0mm
Sovereign Plus skirting
4
7
4
Data cable: Ø6.5mm
Sovereign Plus skirting
3
6
4
Data cable: Ø7.0mm
Sovereign Plus skirting
3
5
3
Data cable: Ø8.4mm
Sovereign Plus skirting
2
3
2
3
2
1
20
12
75
Cable capacities
• All calculations allow for a
45% space factor.
As there can be differences between
data cable sizes, Marshall-Tufflex
recommend that cable dimensions
are confirmedwith themanufacturing
company.
Sovereign Plus skirting
1 = 238mm
2
total area
1 = 107mm
2
45% space factor
2 = 416mm
2
total area
2 = 187mm
2
45% space factor
3 = 261mm
2
total area
3 = 117mm
2
45% space factor
Dimensions
