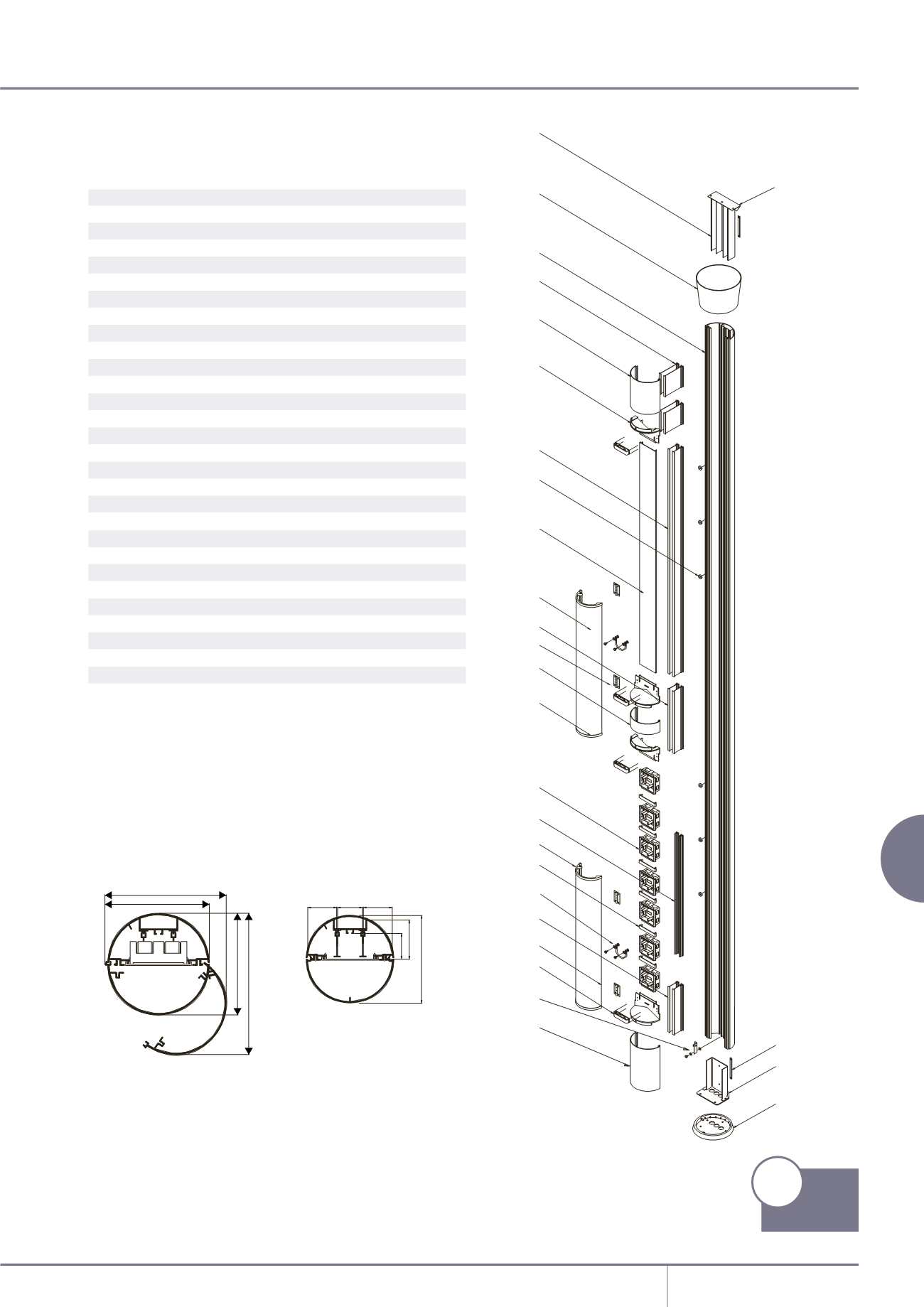

Series 2 PowerPole – continued
Single sided PowerPole
with 2 hinged lids and 7 ESSB1 outlets (NPPC3600721)
Code
Description
Quantity
BB NPPB3600
Semi-circular PowerPole base 3600mm
1
A NPPHLA/W#
Hinged lid assembly
2
P NPPCL1730
Clip on lid 1730mm long
1
Q NPPCL50
Clip on lid 50mm long
1
R NPPCL200
Clip on lid 200mm long
1
J
NPPUT
Hinged lid upper trim
2
K NPPLT
Hinged lid lower trim
2
O NPPTC2
Top sliding cover
1
N NPPBF4
Circular base foot
1
B NPPBH1
Bulkhead
4
U PPBF6
Base foot (galvanised)
1
E NPPCC1
Cable clip
4
C ESSB1
Single gang box
7
D ES1
Spacing cover
6
F NPPH1
Stainless steel hinges
4
I
PPSN1
Sliding nut
2
H NPPLH1
Disc latch
5
M NPPMC1
Magnet catch
6
G NPPLBS1
Hinged lid bonding strap
2
LBS2
Clip on lid bonding strap
3
L
PPBT1
16mm bonding terminal assembly
1
S *PHAS1
Top adjusting slide 250mm long
1
T NPPFB2
Top fixing bracket
1
AA MDFS15W632
15mm dividing fillet 632mm long
2
Z MDFS50W200
50mm dividing fillet 200mm long
2
Y MDFS50W710
50mm dividing fillet 710mm long
2
X MDFS50W145
50mm dividing fillet 145mm long
2
W MDFS100W1630 100mm dividing fillet 1630mm long
2
V ETL1W633
Sterling lid 633mm long
1
#Please use A or W to denote anodised or white
Note:
The Sterling PowerPole is suitable for both solid and
suspended ceilings up to 3.6 metres high. An alternative adjusting
slide which can be extended to one metre is available for additional
heights within the ceiling void (*PHAS2).
Full installation instructions are included within each pack.
Dimensions and cable capacities
A = 1238 sq mm total area
45% space factor = 557 sq mm.
B = 505 sq mm total area
45% space factor = 227 sq mm.
C = 1798 sq mm total area
45% space factor = 809 sq mm.
D= 1628 sq mm total area
45% space factor = 733 sq mm.
