TECHNICAL INFORMATION

Technical information





270 |

PVC-U perimeter trunking systems

Material

PVC-U is flame retardant and self-

extinguishing. PVC-U is 100%

recyclable.

Installation

Positioning

Compact 1, 2 & 3 suitable for dado.

Should Compact 3 be used as

skirting system, a clearance of 5mm

is recommended above the floor

covering to allow the profile fittings to

clip over the cover.

If Compact 2 is installed close to

desk/bench top – invert so small

compartment is on bottom.

Expansion/contraction

PVC-U expands and contracts at a

uniform rate of approx 5.25mm in

a 3 metre length for a temperature

change of 25°C. Therefore, a 3mm

gap between each length of trunking

base is recommended. Fittings have a

10mm overlap on each side to allow

for thermal movement of the covers.

Fitting

• The base is supplied with pre-cut

elongated holes at 250mm centres.

• To fasten base, use No 8 round head

screws and washers.

• Avoid over-tightening to permit

thermal movement.

• The use of plastic caps over screw

heads is recommended to protect

installed cables.

• To cut the trunking, use a fine-

toothed panel or power jig-saw.

• External moulded fittings overlap

the joints by up to 10mm to cover

cutting inaccuracies.

• A variable angle jig-saw or chop

saw is recommended for cutting 45

degree mitres.

Single lengths

Where it is required to fit a single

length of trunking (under 3 metres)

between two inside walls and no

accessory box is fitted, it is advisable to

install a coupler in the centre of the run

to facilitate the removal of the cover.

Joints and bends

Base joints should have a 3mm gap to

allow for expansion.

• Internal, external bends and flat

angles, the base must be mitred 45

degrees to ensure total enclosure of

trunking, including any internal fitted

segregator.

• External moulded fittings overlap

the joints by up to 10mm to cover

cutting inaccuracies.

• Flat angles, tees and crossovers are

also available pre-fabricated.

Bend radius control

The data internal and external bend

radius control fittings for Compact

Trunking provide a bend radius of

50mm.

Accessory boxes

• For mounting an accessory box in the

alternative compartment to supply,

drill the main web adjacent to the

box position.

• Remove the appropriate knock out

and clip the box into the trunking

base.

• For boxes in the same compartment

as the supply, remove the

appropriate box knock-outs and clip

the box into trunking base.

• When boxes are installed

consecutively, a 14mm wide spacer

(ES1) is required to cover the space

between the boxes.

• Part M box assemblies with

contrasting coloured faceplates are

available to meet the requirements

of DDA regulations for Visual

Impairment.

• If Compact 3 is used as a skirting

system. All power accessories should

be installed in the top compartment.

Covers

Covers are designed to limit

unauthorised removal and to remain

in position during normal conditions

irrespective of impact and minor

undulations of the mounting surface.

Covers – fitting

Covers are clipped into place from

front. If accessory boxes are installed,

the ETL1 cover is butt-joined to the

edge of the box. Cut edges of the cover

are subsequently concealed by the

accessory. For fittings, a gap of 25mm

is left between the two cover ends to

permit the fitting to clip to base.

Covers – removal

To remove a cover, first detach a

coupler, internal or external bend

component to gain access. The main

cover can then be gently eased off

the base. To remove the outer cover,

firstly ease from the base by inserting

the blade of a terminal screwdriver

between the captive legs of the cover

and the base and then peel off.

Screening

Special conductive spray coating can

be applied to one compartment, the

cover, accessory boxes and fittings,

to screen data cables against EMI

interference.

For data/voice circuits only:

Warning: Owing to its relatively

high surface resistance, CS coating

SHOULD NOT be in contact with low

voltage circuits BS7671 (1992) 50

V.A.C. – 1000 V.A.C. unless additional

measures are undertaken.

Antimicrobial

For technical details of antimicrobial

Bio Compact trunking, please refer to

Laboratory and Healthcare section.

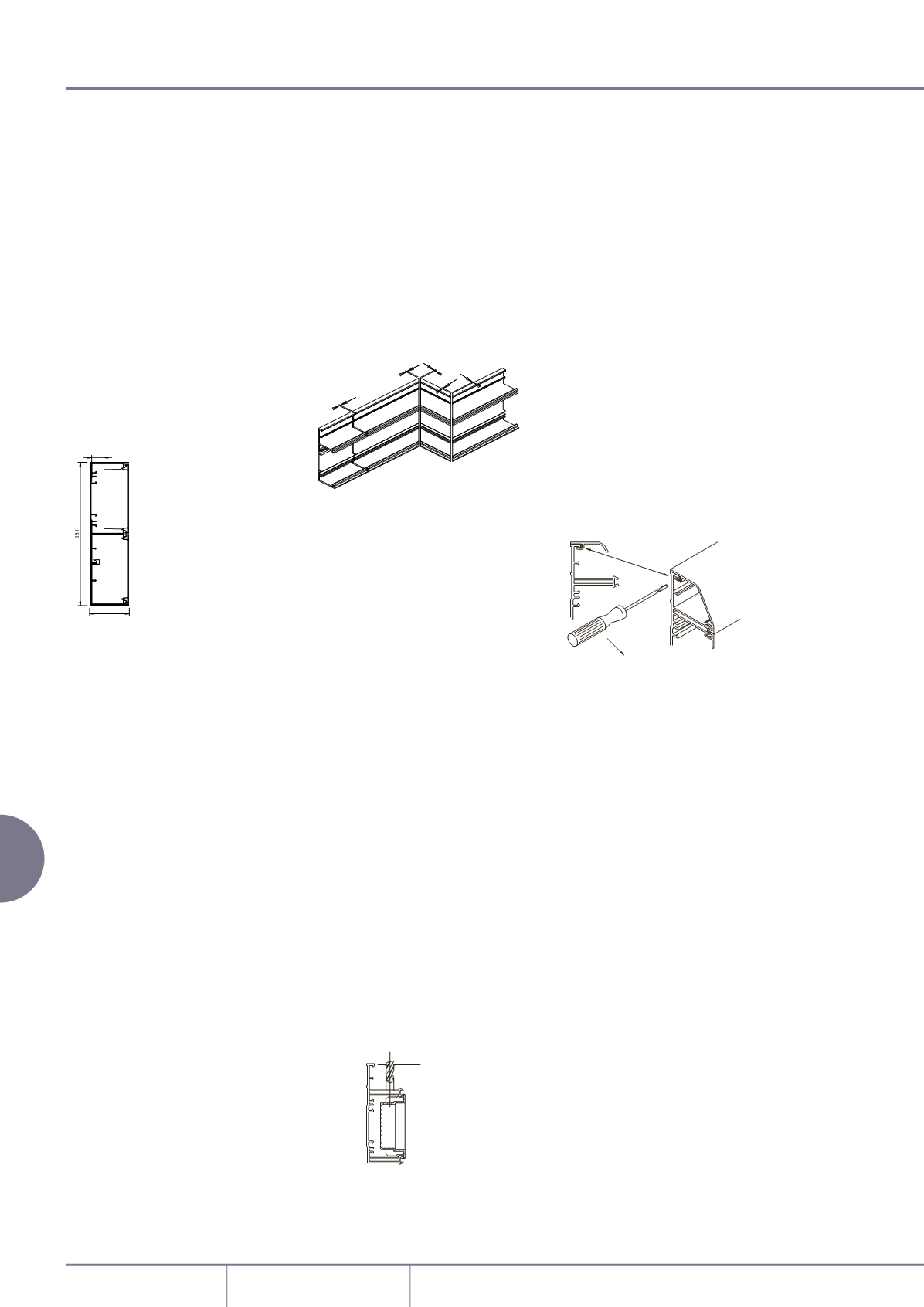

INSERT SCREWDRIVER

INTO SHADED AREA

LEVER OUT

MIN

90mm

5mm +

FLOOR

COVERING

STERLING COMPACT

AND PROFILE

Compact trunking

DRILL HOLE OF

SUITABLE SIZE
