TECHNICAL INFORMATION
Technical information
268 |

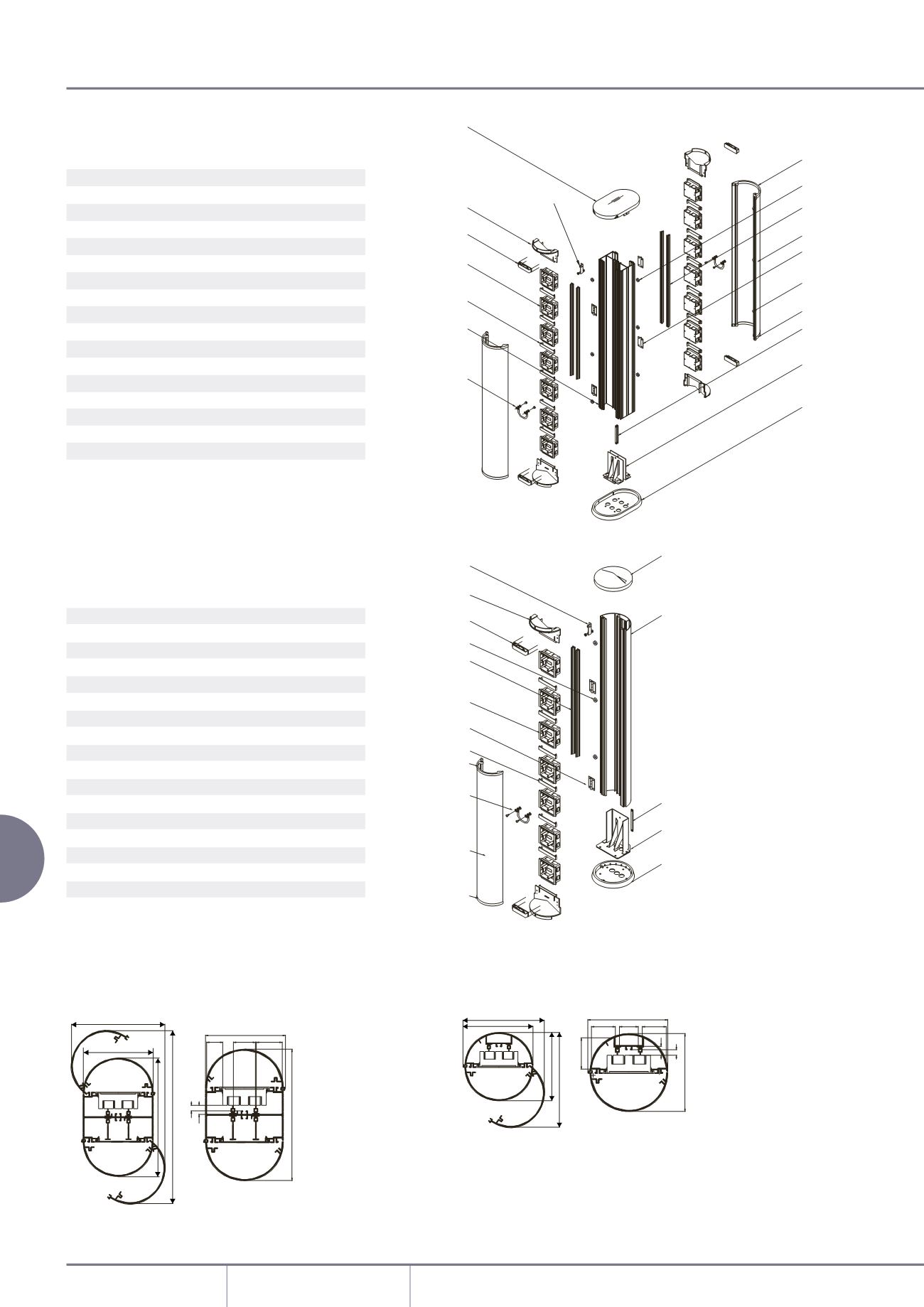

PowerPoles and PowerPosts
Double sided PowerPost
with 2 hinged lids and 14 ESSB1 outlets (NPPE811142)
Code Description
Quantity
LL NPPMB811
Square PowerPost base 811mm long 1
A NPPHLA/W# Hinged lid assembly
2
J NPPUT
Hinged lid upper trim
2
K NPPLT
Hinged lid lower trim
2
KK NPPC3
Oval Top cap
1
HH NPPBF5
Oval base
1
B NPPBH1
Bulkhead
4
C ESSB1
Single gang box
14
D ES1
Spacing cover
12
II
PPBF3
Base foot (galvanised)
2
E NPPCC1
Cable clip
4
AA MDFS15W632 Dividing fillet 632mm long
4
F NPPLH1
Stainless steel hinges
4
L PPBT1
16mm bonding terminal assembly
1
G NPPLBS1
Hinged lid bonding strap
2
H NPPLH1
Disc latch
6
M NPPMC1
Magnet catch
6
I
PPSN1
Sliding nut
2
#Please use A or W to denote anodised or white
Overall height 838mm.
Full installation instructions are includedwithin each pack.
J
H
AA
A
F
M
K
I
II
HH
KK
B
E
C
D
LL
G
L
L
B
E
H
AA
C
D
DD
CC
G
A
J
K
F
I
EE
N
Single sided PowerPost
with 1 hinged lid and 7 ESSB1 outlets (NPPC80671)
Code
Description
Quantity
CC NPPB806
Semi-circular PowerPost base 806mm 1
A NPPHLA/W# Hinged lid assembly
1
J NPPUT
Hinged lid upper trim
1
K NPPLT
Hinged lid lower trim
1
DD NPPC2
Top cap
1
EE NPPBF7
Circular post base foot (galvanised)
1
N NPPBF4
Circular base foot
1
B NPPBH1
Bulkhead
2
E NPPCC1
Cable clip
2
D ES1
Spacing cover
6
C ESSB1
Single gang box
7
AA MDFS15W632 Dividing fillet 632mm
2
H NPPLH1
Disc latch
3
M NPPMC1
Magnet catch
3
F NPPH1
Stainless steel hinges
2
G NPPLBS1
Hinged lid bonding strap
1
L PPBT1
16mm bonding terminal assembly
1
I
PPSN1
Sliding nut
1
#Please use A or W to denote anodised or white
Overall height 838mm.
Full installation instructions are includedwithin each pack.
140
136
162
189
335
229
181
142
A
B
C
B
D
C
A
A
28
140
15
9
38 45
229
140
136
162
189
335
229
181
142
A
B
A
A
B
C
D
C
33
55
42
42
15
9
136
140
38
45
45
61
40
136
Double sided
PowerPost
A = 1313 sq mm
total area 45% space
factor = 591 sq mm.
B = 505 sq mm total
area 45% space
factor = 227 sq mm.
C = 1798 sq mm
total area 45% space
factor = 809 sq mm.
D= 1628 sq mm
total area 45% space
factor = 733 sq mm.
Single sided
PowerPost
A = 1238 sq mm total
area 45% space
factor = 557 sq mm.
B = 505 sq mm total
area 45% space
factor = 227 sq mm.
Dimensions and cable capacities
