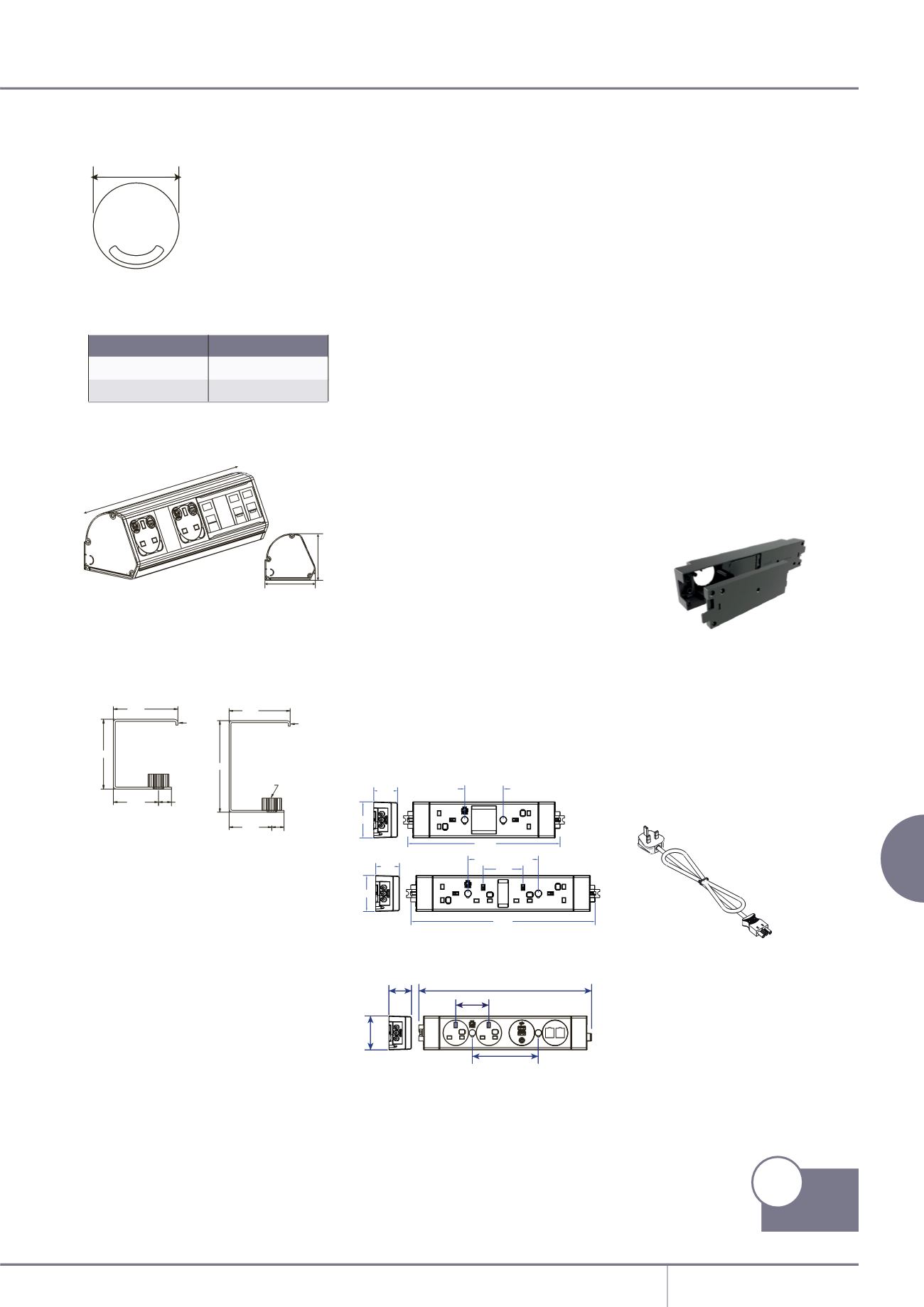

TECHNICAL INFORMATION
Technical information
Configuration
•
Power modules
Power only
•
Power and data modules
2 x UK fused sockets plus 2 configurable
gangs for Power, USB charging or
data/AV
•
RCBOs
Designed to be connected directly to
underfloor track.
Input connections via tap-off.
Output connection via Weiland GST18/3.
Connection options
Power and Data Modules - Built in GST18/3
male for power in, plus optional GST18/3
female connector for power out on
certain configurations.
Two modules units can be securely
clipped together via the inbuilt GST18/3
connectors e.g. a DM5001 and DM5030
(both with 3.15Amp fuses) can be joined to
form a BS6396 compliant 6 socket unit.
The rear section of the Power and Data
Modules can be removed for onsite data/
AV installation.
Cable type
In-feed power cable shown with optional
Wieland connector.
• 13Amp rating
• Specification of cable length is necessary
Power module earth lead
Size: 1.5mm²
Length: 250mm with 5mm ring terminal.
Underfloor to desk
| 263
Desk grommets
Dimensions
Cut out size
Curved surface unit
Adjustable desk clamp
Adjustable clamps suit desks from 5mm –
48mm thick.
• For use with curved surface units only.
Power and Data Modules
Standards
BS 1363-1
BS 1363-2 (where applicable)
BS 5733:2010+A1:2014
EN 50581:2012
EN 301 489-34(2012)
IEC 60884-1:2005
For more information please contact our
Technical Team on +44 (0)1424 856688.
Material
Power and Power and Data Modules are
constructed from high strength flame
retardant black polycarbonate mouldings.
RCBO – constructed from aluminium
casing
Insulation
Reinforced insulation
Earth Bonding:
•
Power Modules
An external earth terminal allows
connection of earth bonding leads
without dismantling the unit. Please use
suitable tools to cut earth lead from
Power Modules if required.
•
Power and Data Modules
Our Power and Data Modules units are
supplied as standard with a prefitted
250mm earth lead to 5mm ring
terminal.
Fusing
To enable compliance to BS6396 the UK
sockets are fitted with Ø5 x 20mm anti-
surge ceramic fuses, with colour-coded
fuse clips to denote the rating (3.15Amp
or 5Amp).
RCBO Rating
30mA 16Amp
Quality and Testing:
100% testing - continuity, polarity,
insulation & earth
•
Power and Data Modules only
• USB charger: Output voltage and
resistance
• Data & AV: All sockets continuity tested
Dimensions
Power Modules
Power and Data Modules
p92
Product
Information
300.0
fixing screwports
39.5
60.0
497.0
53.0
66.3
306.0
117.0
fixing screw ports
66.3
60.0
39.5
39.5
60.0
64.0
fixing screw
ports
253.0
306
58.5
117
337.5
77.5
60
39.5
50.00
35.00
10.00
54.00
DCL1
50.00
35.00
10.00
75.00
M5 hank
bush
DCL2
Box type
Diameter
DG1
80mm
General tolerance2mm
Unit Lenth
249mm
79mm
85mm
92mm
9
Unit Lenth
249mm
79mm
85mm
39.5
39.5
39.5
58.
30
117
60
60
253
17
66.3
306
