PowerPoles and PowerPosts
| 267
B
A
C
B
L
H
D
E
F
G

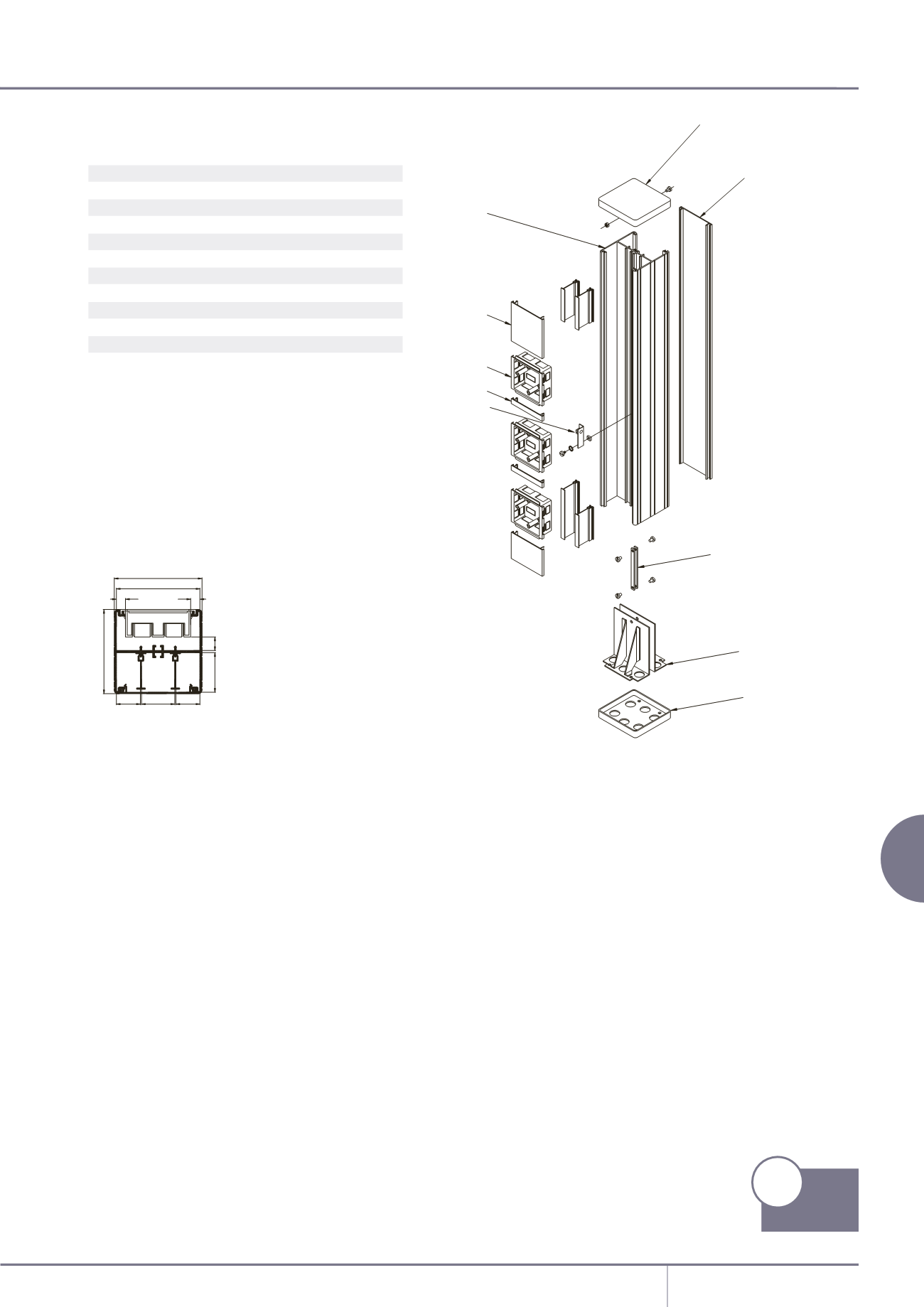

Double sided PowerPost
Code
Description
Quantity
PP685
1 pack
A PPC1
Cap
1
B PL2
Lid
2
C PPMB2
Post
1
D ESSB1
Single Gang Box
6
E PPSN1
Sliding Nut
2
F PPBF3
Base Foot (Metal)
1 pair
G PPBF1
Base Foot (white only)
1
H ES1
Spacing Cover
5
L PPBT1
16mm Bonding Terminal Ass.
1
PPF2
Fixing Kit
1
The standard height of the PowerPost is 685mm and
the overall height, including cap and base,
is 692mm.
Full installation instructions are included
within each pack.
B C B
A
11
11
97
102
28
46
28 39
16
98
A = 2017 sq mm total area
45% space factor = 907 sq mm.
Without Accessory Box
A = 4284 sq mm total area
45% space factor = 1927 sq mm.
B = 1148 sq mm total area
45% space factor = 516 sq mm.
C = 1547 sq mm total area
45% space factor = 696 sq mm.
Dimensions and cable capacities
p98
Product
Information
