PVC-U perimeter trunking systems
| 271

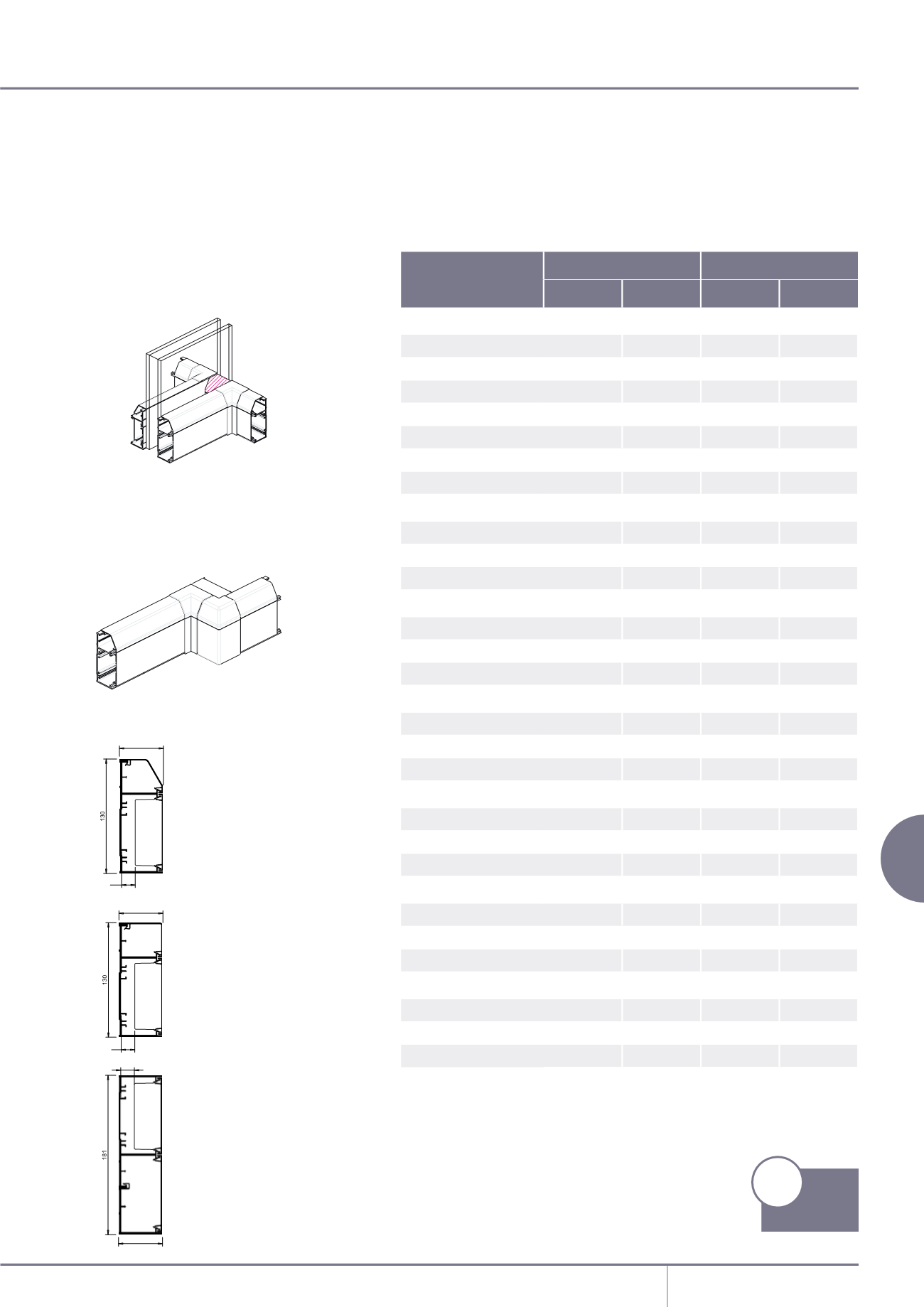

Method of continuation through
a partition wall
Continue the main lateral run of base
through the partition wall. Fit short
lengths of cover where the trunking
passes through the partition. The
partition wall trunking is then butted
up to the main run and the joint
covered by an internal bend fitting.
Offset dimensions
The minimum set that can be
accommodated in the same plane
(from internal to external bend), is
shown below.
Cable capacities
• All calculations allow for a 45% space factor.
As there can be differences between cable sizes,
Marshall-Tufflex recommend that cable dimensions are
confirmedwith themanufacturing company.
Compact 3 trunking – no box
Compartment 1 total area = 3763mm²
Compartment 2 total area = 3700mm ²
Compact 2 trunking – no box
Compartment 1 total area = 1534mm²
Compartment 2 total area = 3763mm²
Compact 1 trunking – with box
Compartment 1 total area = 1280mm²
Compartment 2 total area = 1497mm²
Cable capacity chart
Compartment 1
Compartment 2
No box
With box
No box
With box
PVC power cable 1.5mm² stranded copper
Compact 1
72
–
212
84
Compact 2
86
–
212
84
Compact 3
212
85
208
81
PVC power cable 2.5mm² stranded copper
Compact 1
48
–
142
57
Compact 2
58
–
142
57
Compact 3
142
57
140
54
PVC power cable 4.0mm² stranded copper
Compact 1
35
–
102
41
Compact 2
42
–
102
41
Compact 3
102
41
100
39
Data cable: Ø5.5mm
Compact 1
24
–
71
28
Compact 2
29
–
71
28
Compact 3
71
28
70
27
Data cable: Ø6.0mm
Compact 1
20
–
60
24
Compact 2
24
–
60
24
Compact 3
60
24
59
23
Data cable: Ø6.5mm
Compact 1
18
–
53
21
Compact 2
21
–
53
21
Compact 3
53
21
52
20
Data cable: Ø7.0mm
Compact 1
15
–
44
17
Compact 2
18
–
44
17
Compact 3
44
18
43
17
Data cable: Ø8.4mm
Compact 1
10
–
31
12
Compact 2
12
–
31
12
Compact 3
31
12
30
12
Compact trunking – continued
Dimensions
90min
