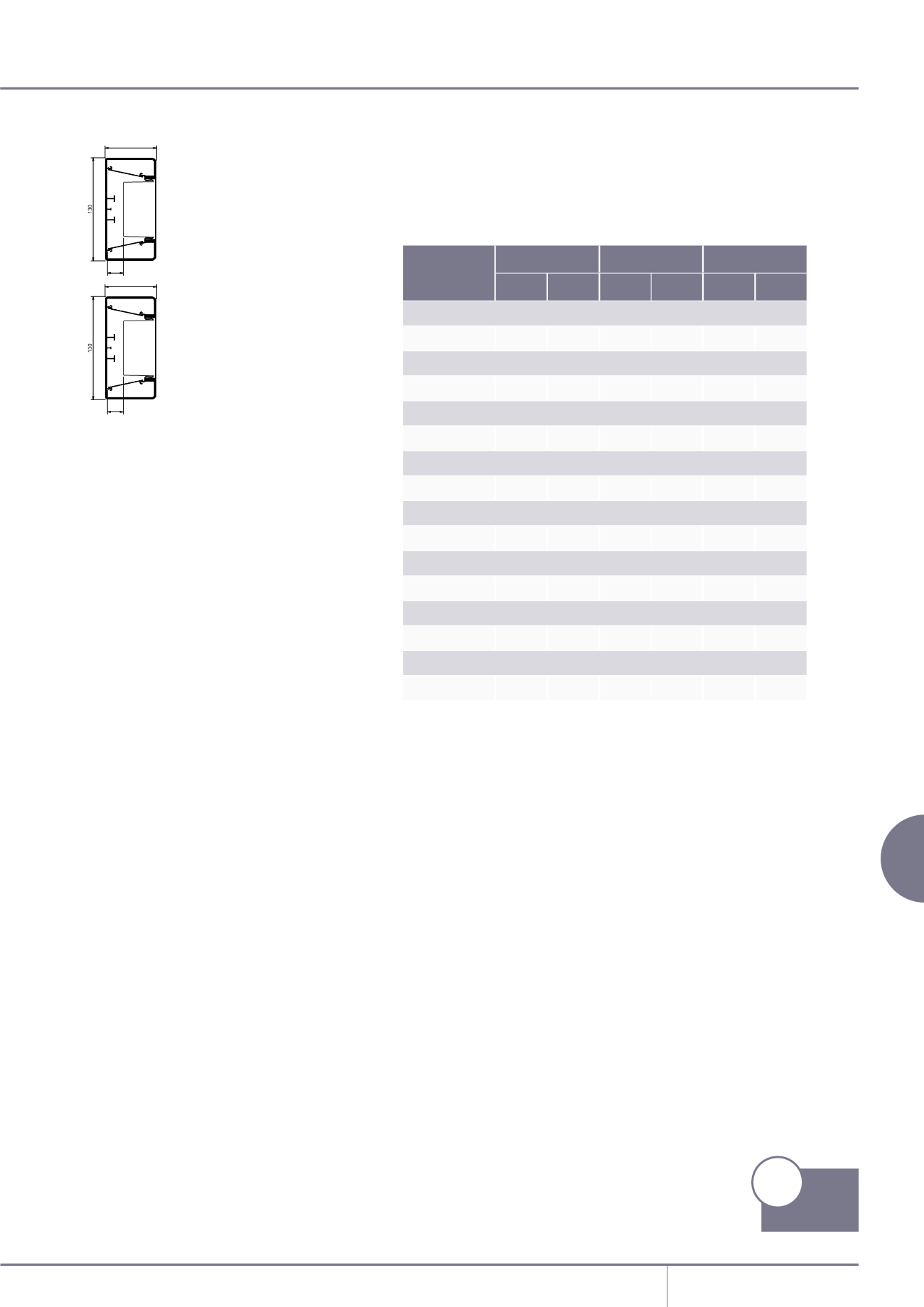

TECHNICAL INFORMATION
Technical information
p156
Product
Information
Ltd.
PVC-U perimeter trunking systems
| 277
Cable capacity
chart
Compartment 1 Compartment 2 Compartment 3
No box With box No box With box No box With box
PVC power cable 1.5mm² stranded copper
Series R 130 89
–
–
40
89
–
PVC power cable 2.5mm² stranded copper
Series R 130 60
–
–
27
60
–
PVC power cable 4.0mm² stranded copper
Series R 130 43
–
–
19
43
–
Data cable: Ø5.5mm
Series R 130 30
–
–
13
30
–
Data cable: Ø6.0mm
Series R 130 25
–
–
11
25
–
Data cable: Ø6.5mm
Series R 130 22
–
–
10
22
–
Data cable: Ø7.0mm
Series R 130 19
–
–
8
19
–
Data cable: Ø8.4mm
Series R 130 13
–
–
6
13
–
Series R– continued
Cable capacities
• All calculations allow for a 45% space
factor.
As there can be differences between
cable sizes, Marshall-Tufflex recommend
that cable dimensions are confirmed
with themanufacturing company.
Series R 130 – with box
and segregators
Compartment 1 & 3 total area = 957mm²
Compartment 2 total area = 2210mm²
Compartment 2 (45% space factor) = 995mm²
Series R 130 – with box, no segregators
Compartment total area = 4272mm²
Compartment(45%spacefactor)=1992mm²
